Section 3 Copy Mode – Color 3-7
2. 0 Operation Details

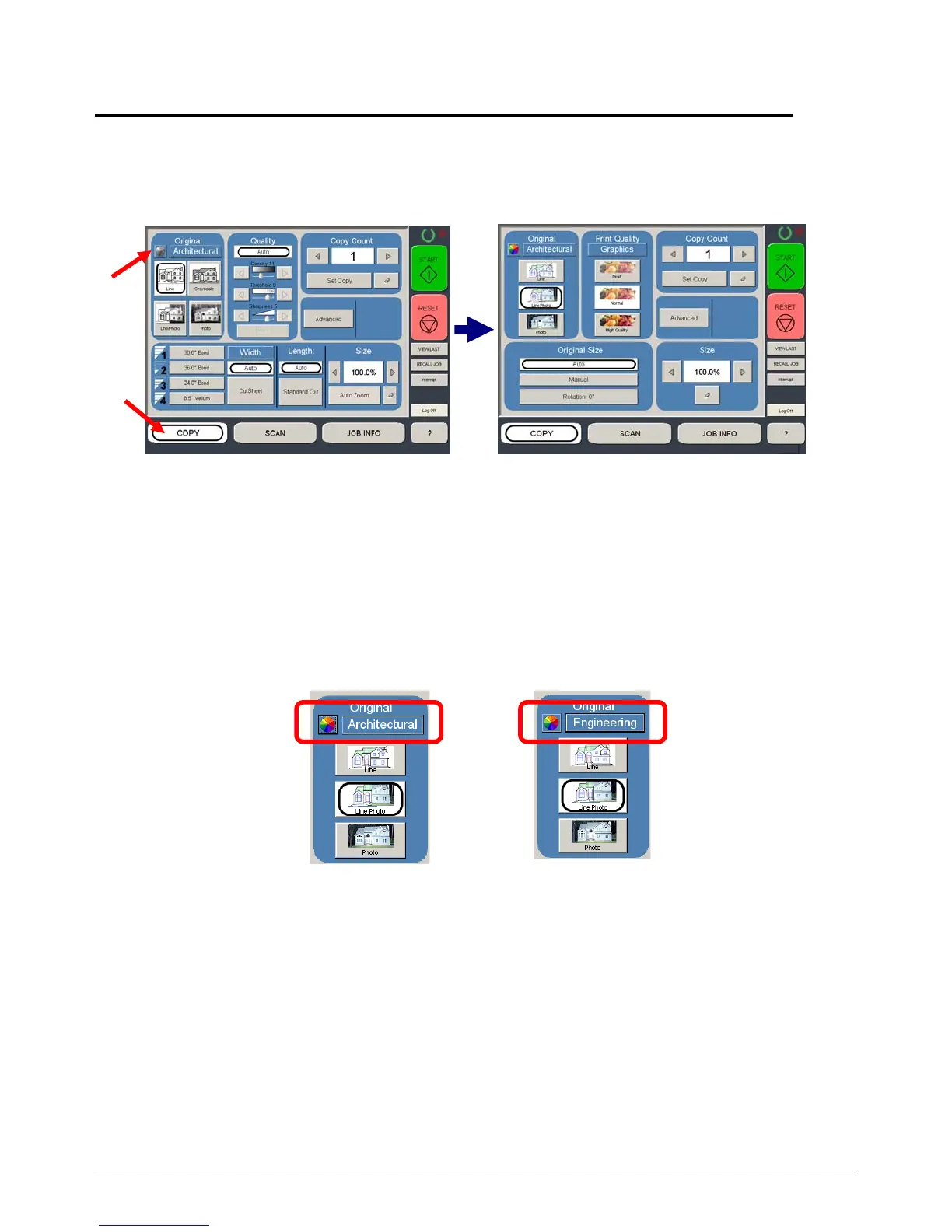

2.1 Main Screen
The main Copy Color screen is selected with the Copy Button in the lower bar, then use the
Mono / Color button in the upper left corner to select Color Mode.
The following pages detail the functions and settings of each button and sub screen that can
be used to adjust the color copy mode.
2.2 Original
This region allows the setting of the Size Mode (Engineering or Architectural) and the original
image type.
2.2.1 Original Size Mode
This button is used to select the Size Mode of Engineering or Architectural.
This will allow the automatic width detection system to determine the image width when an
original is placed in the KIP 3000.
Engineering widths = 34, 22, 17, 11, and 8.5 inches
Architectural widths = 36, 30, 24, 18, 12, and 9 inches
