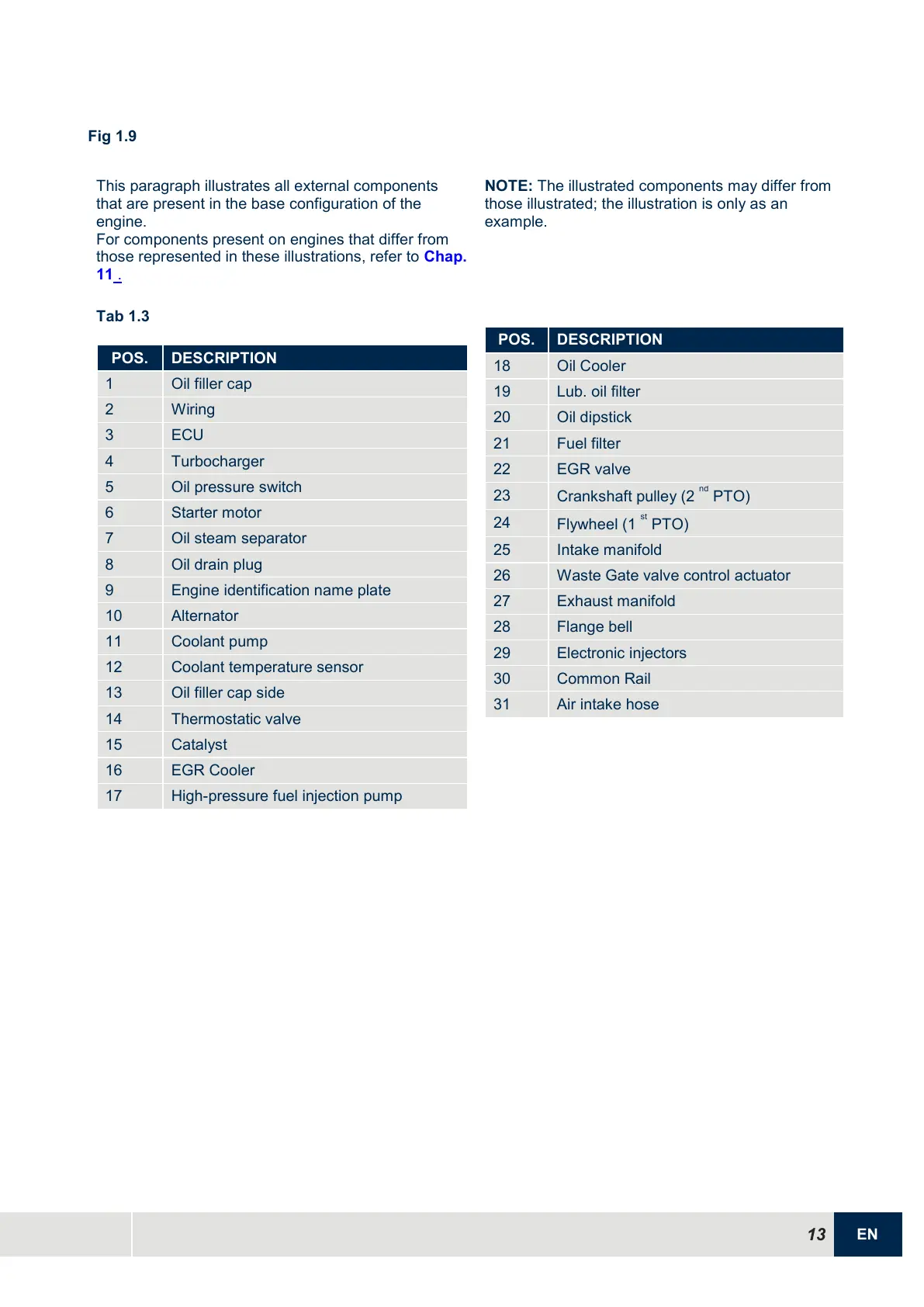

Fig 1.9
This paragraph illustrates all external components
that are present in the base configuration of the
engine.
For components present on engines that differ from
those represented in these illustrations, refer to Chap.
11 .
NOTE: The illustrated components may differ from
those illustrated; the illustration is only as an
example.
Tab 1.3
POS.
DESCRIPTION
1
Oil filler cap
2
Wiring
3
ECU
4
Turbocharger
5
Oil pressure switch
6
Starter motor
7
Oil steam separator
8
Oil drain plug
9
Engine identification name plate
10
Alternator
11
Coolant pump
12
Coolant temperature sensor
13
Oil filler cap side
14
Thermostatic valve
15
Catalyst
16
EGR Cooler
17
High-pressure fuel injection pump
POS.
DESCRIPTION
18
Oil Cooler
19
Lub. oil filter
20
Oil dipstick
21
Fuel filter
22
EGR valve
23
Crankshaft pulley (2
nd
PTO)
24
Flywheel (1
st
PTO)
25
Intake manifold
26
Waste Gate valve control actuator
27
Exhaust manifold
28
Flange bell
29
Electronic injectors
30
Common Rail
31
Air intake hose
