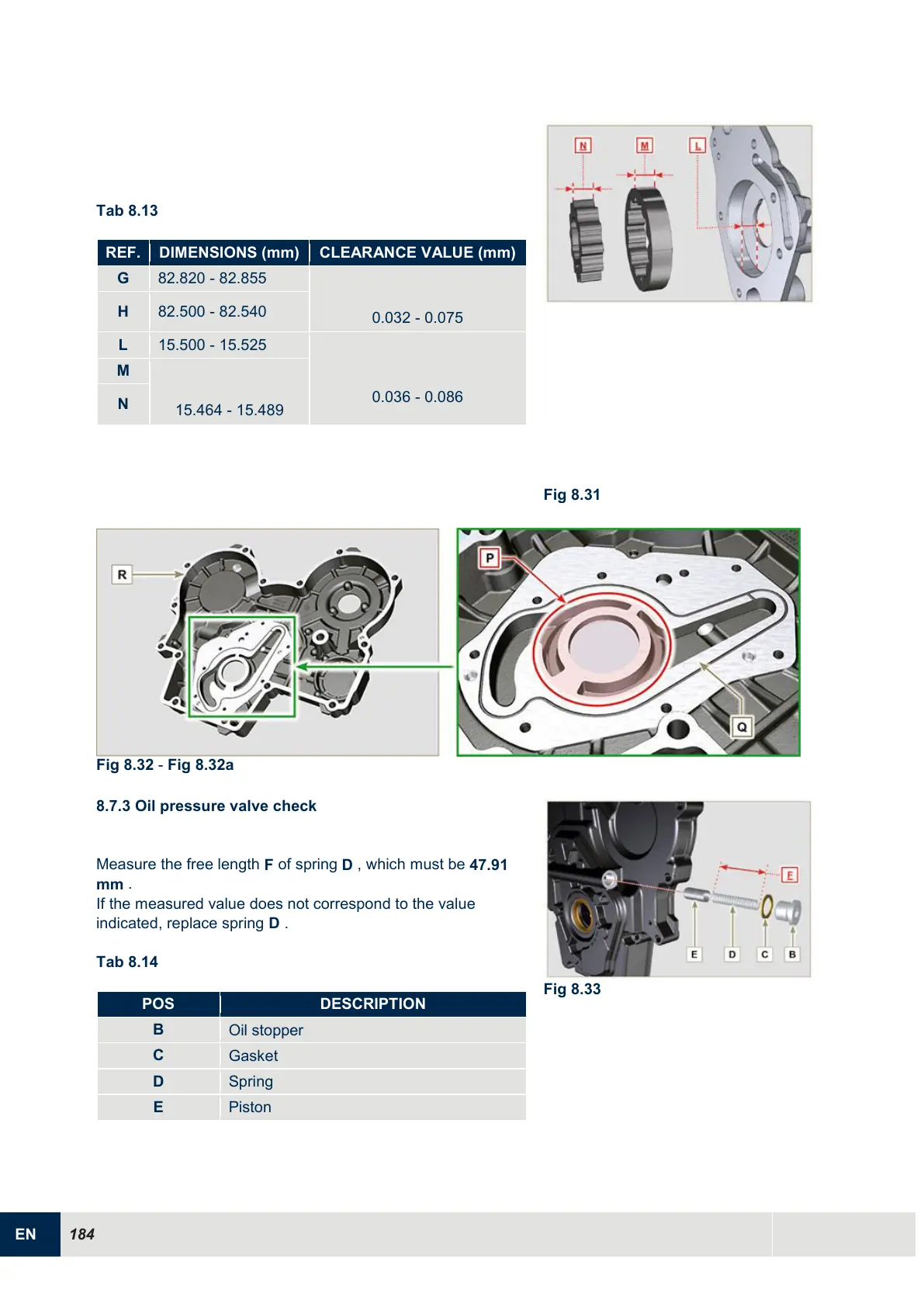

Kohler KDI 1903 TCR Workshop Manual

EN
184
Tab 8.13
REF.
DIMENSIONS (mm)
CLEARANCE VALUE (mm)
G
82.820 - 82.855
0.032 - 0.075
H
82.500 - 82.540
L
15.500 - 15.525
0.036 - 0.086
M
15.464 - 15.489
N
Fig 8.31
Fig 8.32 - Fig 8.32a
8.7.3 Oil pressure valve check
Measure the free length
F
of spring
D
, which must be
47.91
mm
.
If the measured value does not correspond to the value
indicated, replace spring
D
.
Tab 8.14
POS
DESCRIPTION
B
Oil stopper
C
Gasket
D
Spring
E
Piston
Fig 8.33
