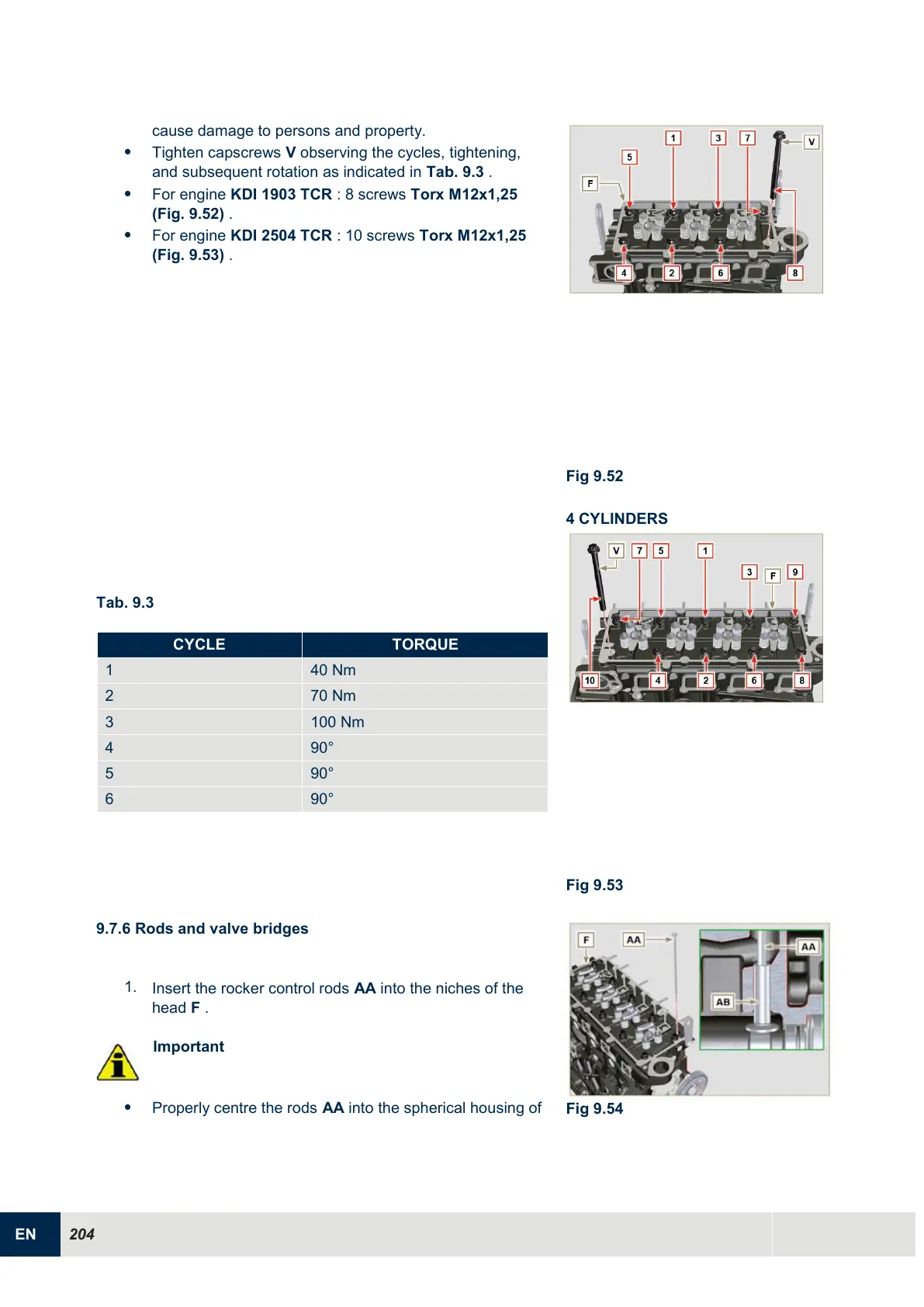

cause damage to persons and property.

Tighten capscrews V observing the cycles, tightening,
and subsequent rotation as indicated in Tab. 9.3 .

For engine KDI 1903 TCR : 8 screws Torx M12x1,25
(Fig. 9.52) .

For engine KDI 2504 TCR : 10 screws Torx M12x1,25
(Fig. 9.53) .
Fig 9.52
Tab. 9.3
CYCLE
TORQUE
1
40 Nm
2
70 Nm
3
100 Nm
4
90°
5
90°
6
90°
4 CYLINDERS
Fig 9.53
9.7.6 Rods and valve bridges
1.
Insert the rocker control rods AA into the niches of the
head F .
Important

Properly centre the rods AA into the spherical housing of
Fig 9.54
