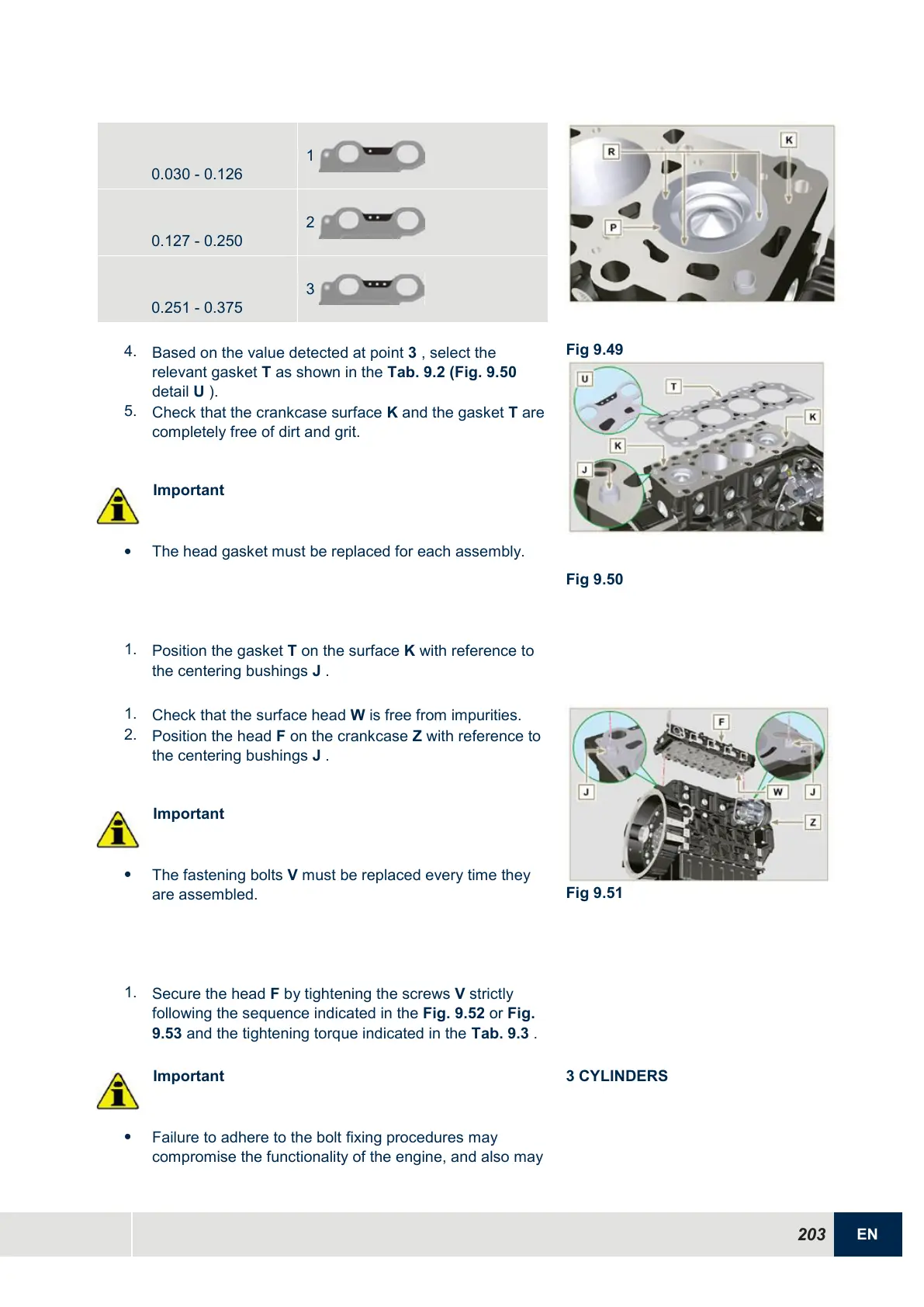

Kohler KDI 1903 TCR Workshop Manual

203
EN
0.030 - 0.126
1
0.127 - 0.250
2
0.251 - 0.375
3
4.
Based on the value detected at point 3 , select the
relevant gasket T as shown in the Tab. 9.2 (Fig. 9.50
detail U ).
5.
Check that the crankcase surface K and the gasket T are
completely free of dirt and grit.
Important

The head gasket must be replaced for each assembly.
1.
Position the gasket T on the surface K with reference to
the centering bushings J .
Fig 9.49
Fig 9.50
1.
Check that the surface head W is free from impurities.
2.
Position the head F on the crankcase Z with reference to
the centering bushings J .
Important

The fastening bolts V must be replaced every time they
are assembled.
1.
Secure the head F by tightening the screws V strictly
following the sequence indicated in the Fig. 9.52 or Fig.
9.53 and the tightening torque indicated in the Tab. 9.3 .
Fig 9.51
Important

Failure to adhere to the bolt fixing procedures may
compromise the functionality of the engine, and also may
3 CYLINDERS
