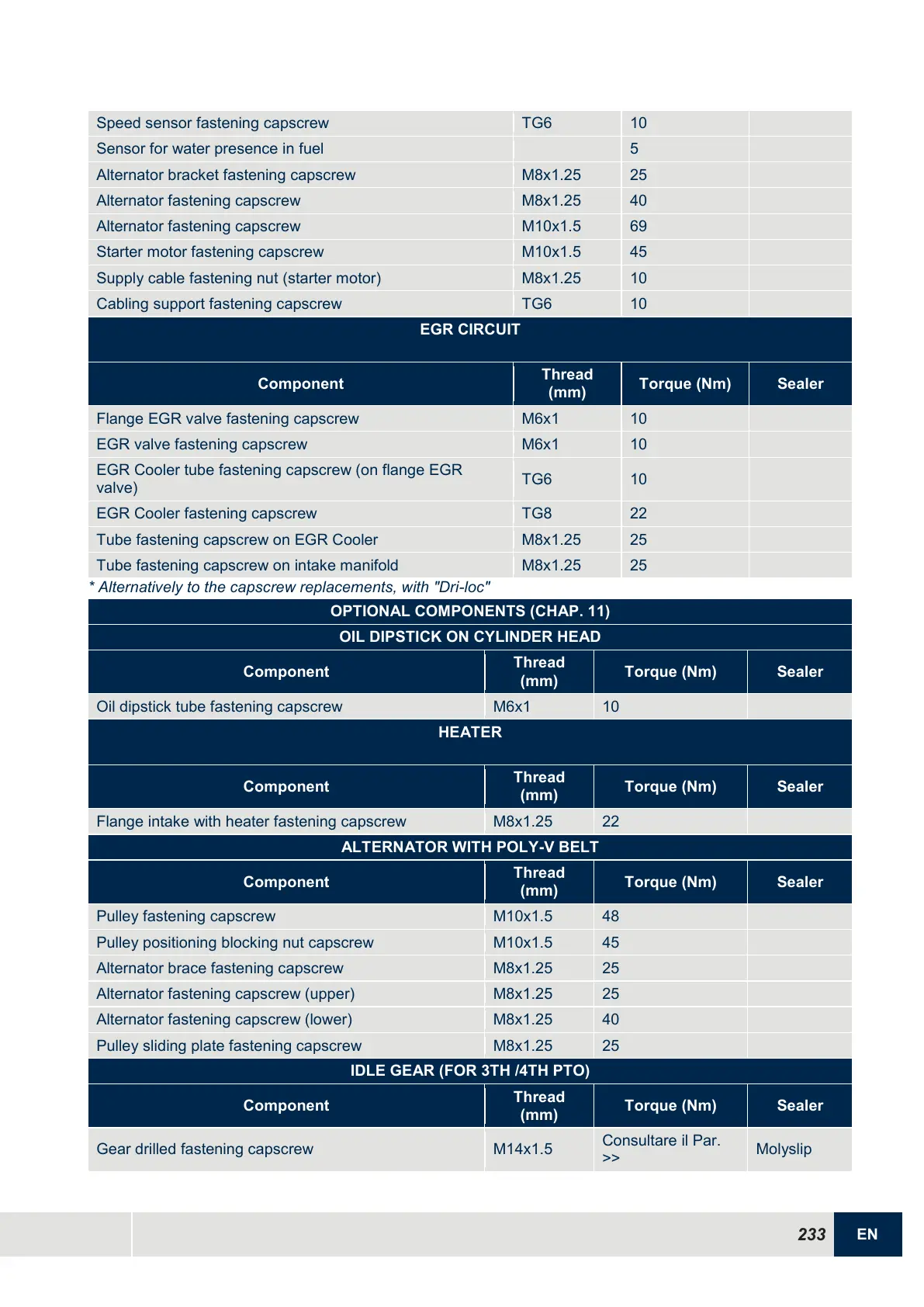

Kohler KDI 1903 TCR Workshop Manual

233
EN
Speed sensor fastening capscrew
TG6
10
Sensor for water presence in fuel
5
Alternator bracket fastening capscrew
M8x1.25
25
Alternator fastening capscrew
M8x1.25
40
Alternator fastening capscrew
M10x1.5
69
Starter motor fastening capscrew
M10x1.5
45
Supply cable fastening nut (starter motor)
M8x1.25
10
Cabling support fastening capscrew
TG6
10
EGR CIRCUIT
Component
Thread
(mm)
Torque (Nm)
Sealer
Flange EGR valve fastening capscrew
M6x1
10
EGR valve fastening capscrew
M6x1
10
EGR Cooler tube fastening capscrew (on flange EGR
valve)
TG6
10
EGR Cooler fastening capscrew
TG8
22
Tube fastening capscrew on EGR Cooler
M8x1.25
25
Tube fastening capscrew on intake manifold
M8x1.25
25
* Alternatively to the capscrew replacements, with "Dri-loc"
OPTIONAL COMPONENTS (CHAP. 11)
OIL DIPSTICK ON CYLINDER HEAD
Component
Thread
(mm)
Torque (Nm)
Sealer
Oil dipstick tube fastening capscrew
M6x1
10
HEATER
Component
Thread
(mm)
Torque (Nm)
Sealer
Flange intake with heater fastening capscrew
M8x1.25
22
ALTERNATOR WITH POLY-V BELT
Component
Thread
(mm)
Torque (Nm)
Sealer
Pulley fastening capscrew
M10x1.5
48
Pulley positioning blocking nut capscrew
M10x1.5
45
Alternator brace fastening capscrew
M8x1.25
25
Alternator fastening capscrew (upper)
M8x1.25
25
Alternator fastening capscrew (lower)
M8x1.25
40
Pulley sliding plate fastening capscrew
M8x1.25
25
IDLE GEAR (FOR 3TH /4TH PTO)
Component
Thread
(mm)
Torque (Nm)
Sealer
Gear drilled fastening capscrew
M14x1.5
Consultare il Par.
>>
Molyslip
