Kohler KDI 1903 TCR

267
EN
1.

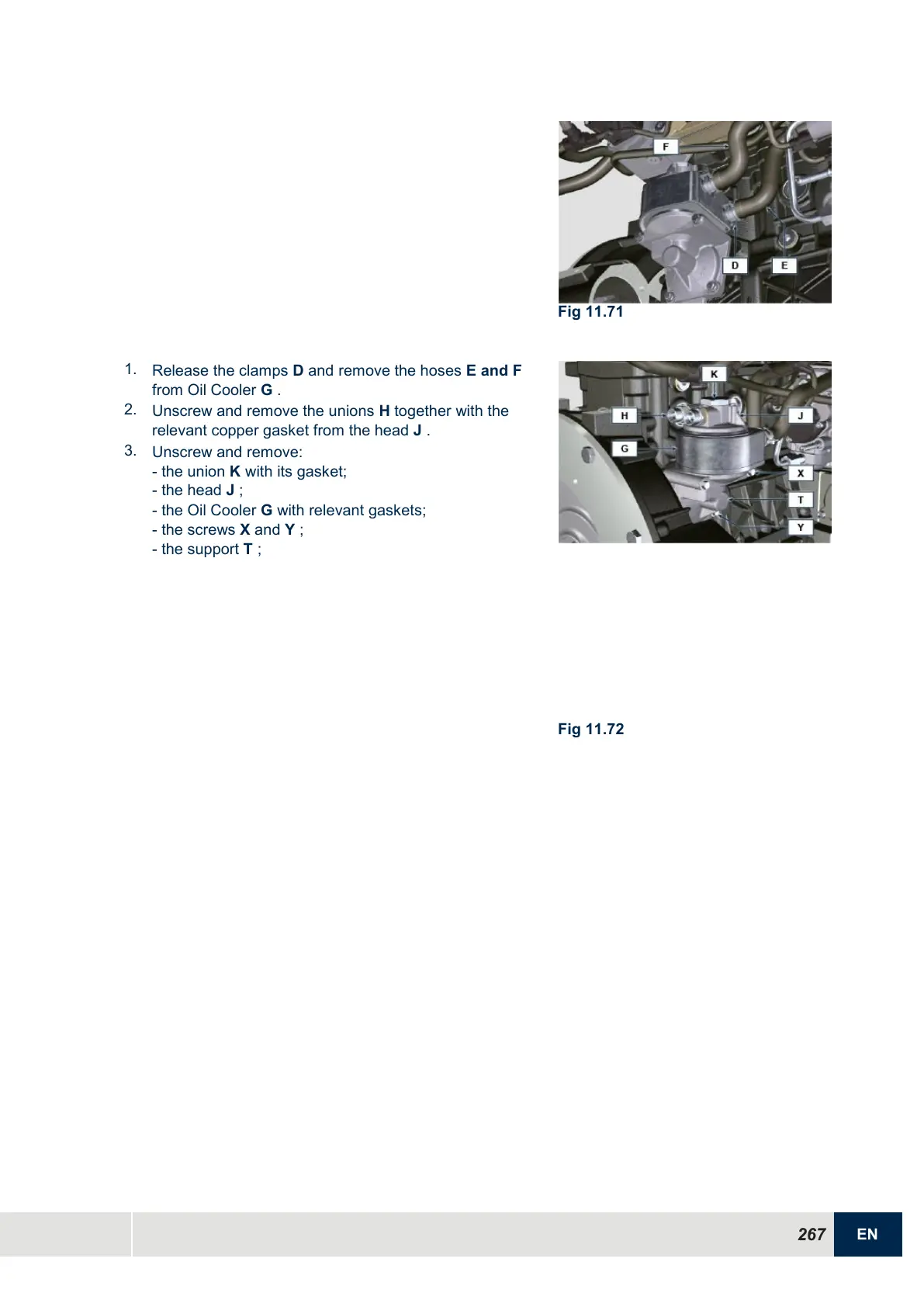

Release the clamps D and remove the hoses E and F
from Oil Cooler G .
2.
Unscrew and remove the unions H together with the
relevant copper gasket from the head J .
3.
Unscrew and remove:
- the union K with its gasket;
- the head J ;
- the Oil Cooler G with relevant gaskets;
- the screws X and Y ;
- the support T ;
Fig 11.71
Fig 11.72
