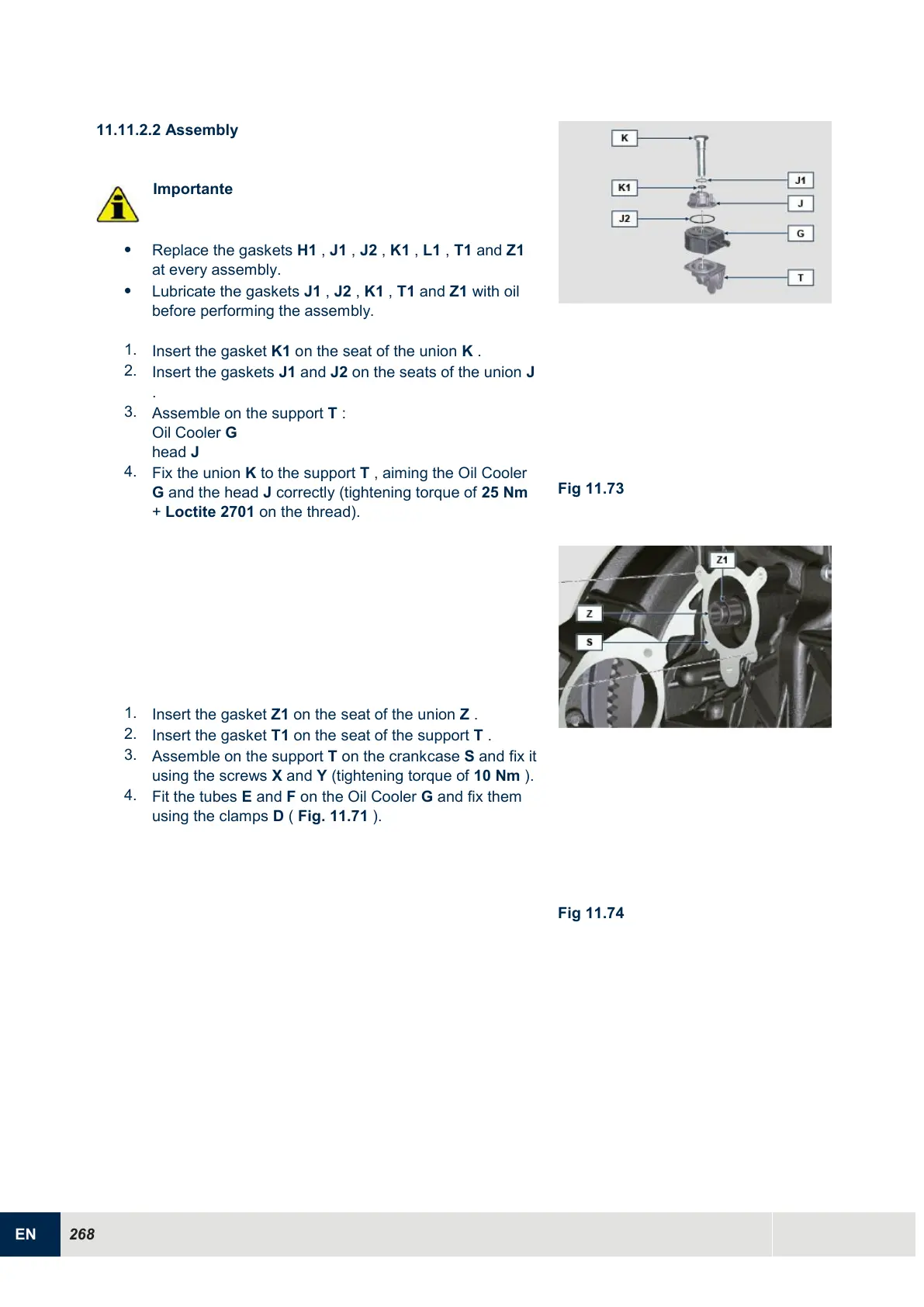

11.11.2.2 Assembly
Importante

Replace the gaskets H1 , J1 , J2 , K1 , L1 , T1 and Z1
at every assembly.

Lubricate the gaskets J1 , J2 , K1 , T1 and Z1 with oil
before performing the assembly.
1.
Insert the gasket K1 on the seat of the union K .
2.
Insert the gaskets J1 and J2 on the seats of the union J
.
3.
Assemble on the support T :
Oil Cooler G
head J
4.
Fix the union K to the support T , aiming the Oil Cooler
G and the head J correctly (tightening torque of 25 Nm
+ Loctite 2701 on the thread).
Fig 11.73
1.
Insert the gasket Z1 on the seat of the union Z .
2.
Insert the gasket T1 on the seat of the support T .
3.
Assemble on the support T on the crankcase S and fix it
using the screws X and Y (tightening torque of 10 Nm ).
4.
Fit the tubes E and F on the Oil Cooler G and fix them
using the clamps D ( Fig. 11.71 ).
Fig 11.74
