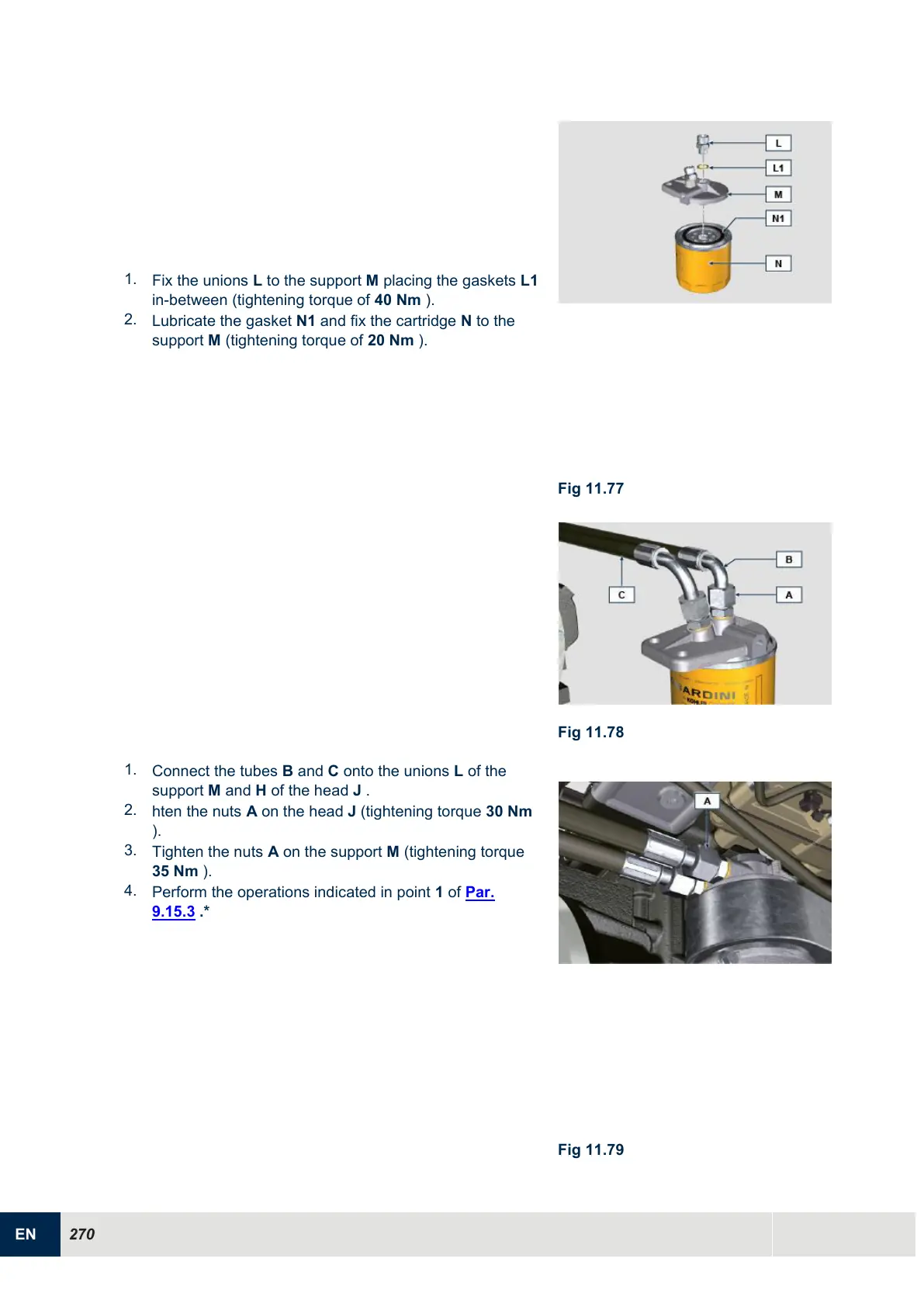

1.
Fix the unions L to the support M placing the gaskets L1
in-between (tightening torque of 40 Nm ).
2.
Lubricate the gasket N1 and fix the cartridge N to the
support M (tightening torque of 20 Nm ).
Fig 11.77
1.
Connect the tubes B and C onto the unions L of the
support M and H of the head J .
2.
hten the nuts A on the head J (tightening torque 30 Nm
).
3.
Tighten the nuts A on the support M (tightening torque
35 Nm ).
4.
Perform the operations indicated in point 1 of Par.
9.15.3 .*
Fig 11.78
Fig 11.79
