Kohler KDI 1903 TCR Workshop Manual

EN
276
1.
Insert gaskets N into seats P of bypass tube
D .
2.
Fasten bypass tube D onto oil sump F using
capscrews C (tightening torque at 10 Nm ).

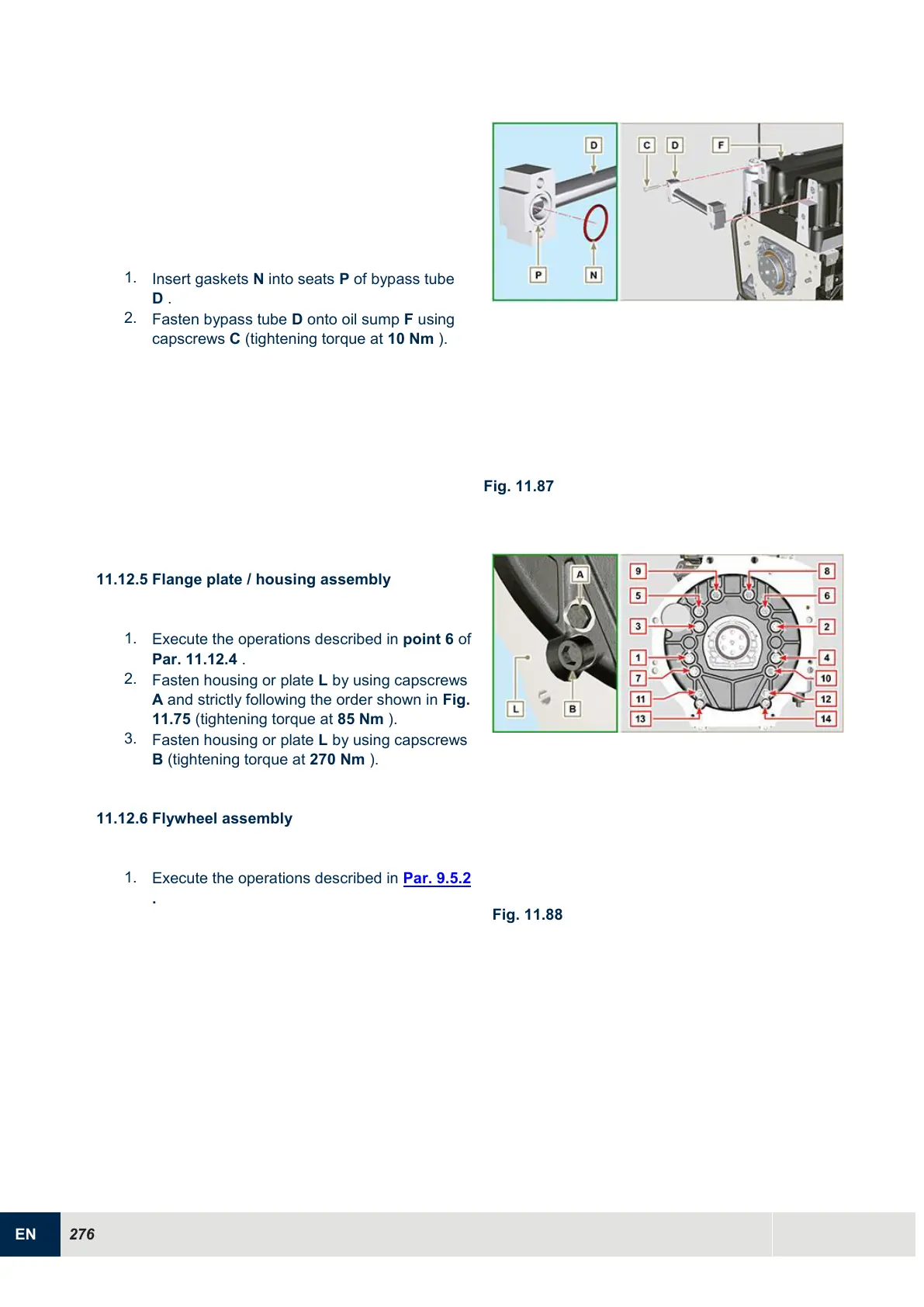

Fig. 11.87
11.12.5 Flange plate / housing assembly
1.
Execute the operations described in point 6 of
Par. 11.12.4 .
2.
Fasten housing or plate L by using capscrews
A and strictly following the order shown in Fig.
11.75 (tightening torque at 85 Nm ).
3.
Fasten housing or plate L by using capscrews
B (tightening torque at 270 Nm ).
11.12.6 Flywheel assembly
1.
Execute the operations described in Par. 9.5.2
.
Fig. 11.88
