Important

Do not apply any tension during the assembly of
components.
1.
Before fastening the manifold M , it must be oriented in
the same position as the previously installed DOC filter.
2.
Tighten the clamp Q (tightening torque of 10 Nm ).
3.
Tighten the clamp S (tightening torque of 12 Nm ).

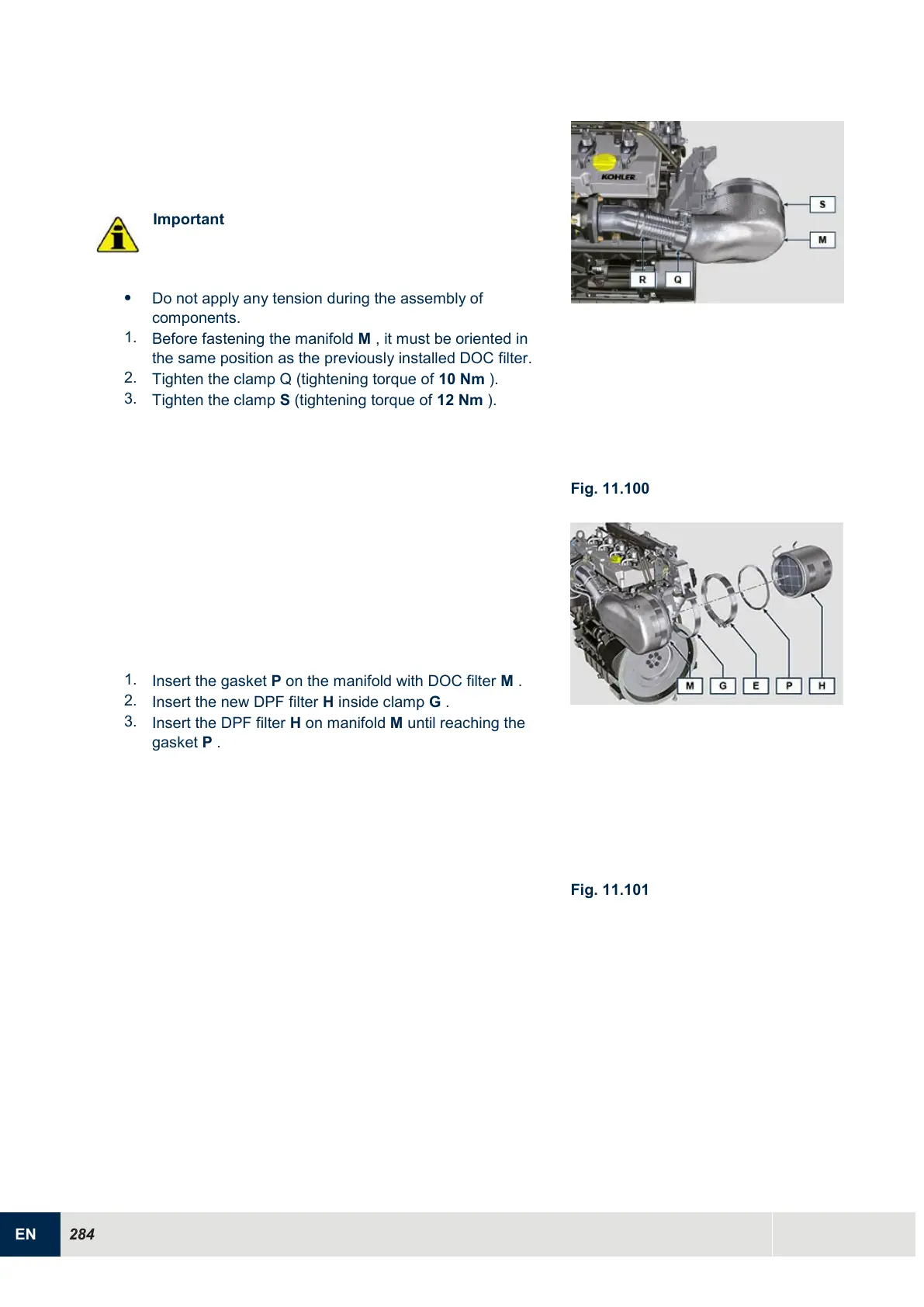

Fig. 11.100
1.
Insert the gasket P on the manifold with DOC filter M .
2.
Insert the new DPF filter H inside clamp G .
3.
Insert the DPF filter H on manifold M until reaching the
gasket P .
