Kohler KDI 1903 TCR

285
EN

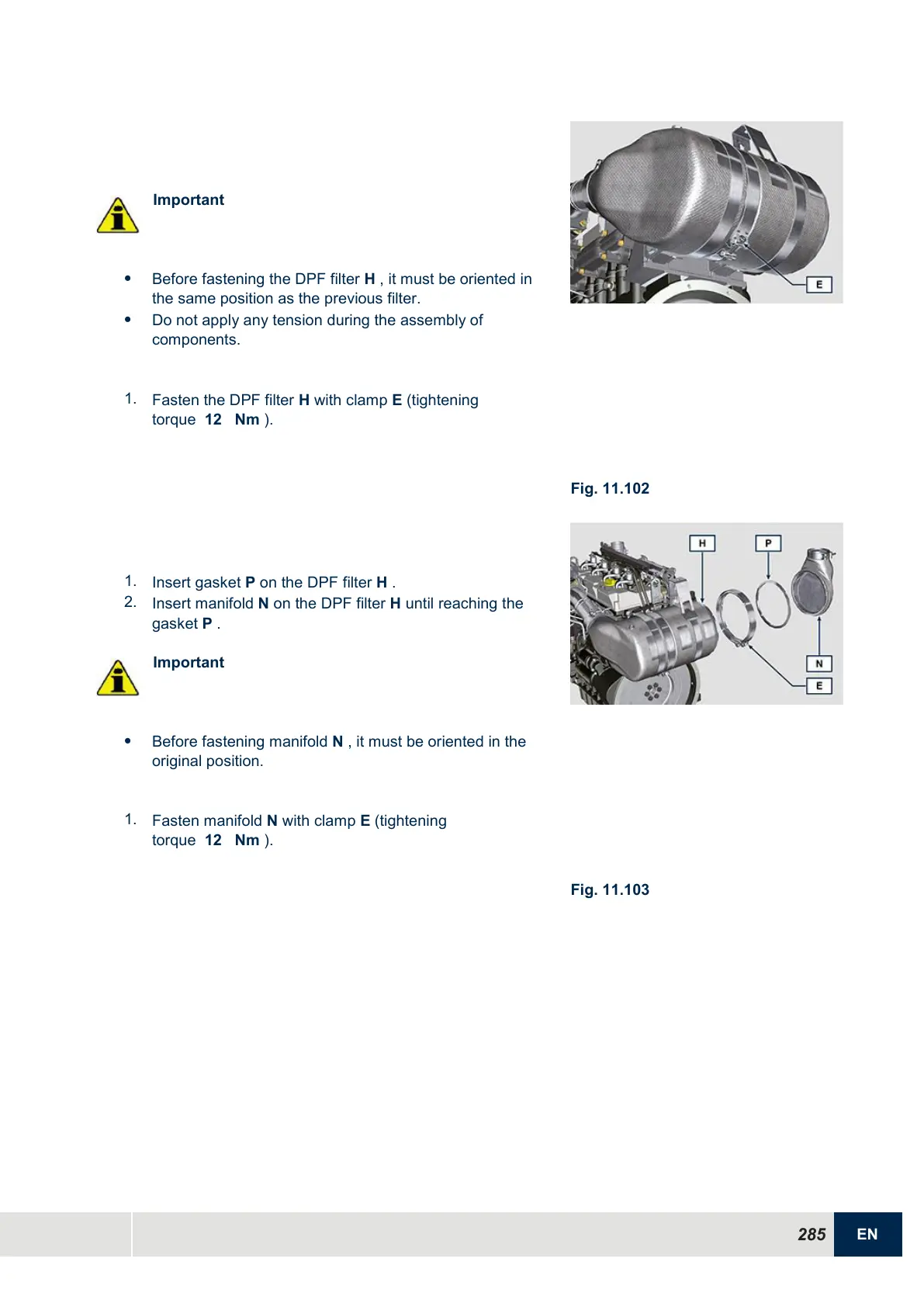

Important

Before fastening the DPF filter H , it must be oriented in
the same position as the previous filter.

Do not apply any tension during the assembly of
components.
1.
Fasten the DPF filter H with clamp E (tightening
torque 12 Nm ).
Fig. 11.102
1.
Insert gasket P on the DPF filter H .
2.
Insert manifold N on the DPF filter H until reaching the
gasket P .
Important

Before fastening manifold N , it must be oriented in the
original position.
1.
Fasten manifold N with clamp E (tightening
torque 12 Nm ).
Fig. 11.103
