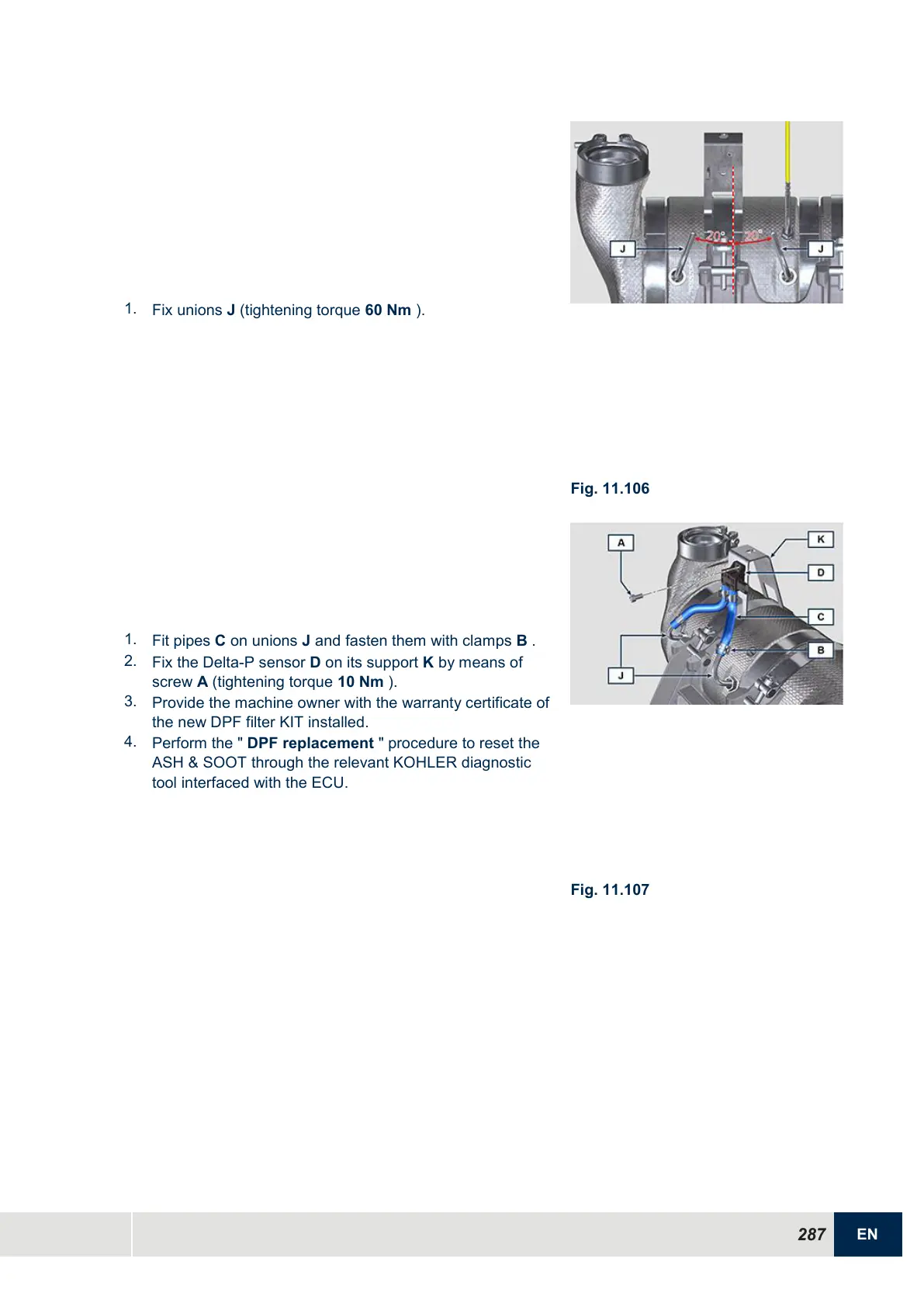

1.
Fix unions J (tightening torque 60 Nm ).
Fig. 11.106
1.
Fit pipes C on unions J and fasten them with clamps B .
2.
Fix the Delta-P sensor D on its support K by means of
screw A (tightening torque 10 Nm ).
3.
Provide the machine owner with the warranty certificate of
the new DPF filter KIT installed.
4.
Perform the " DPF replacement " procedure to reset the
ASH & SOOT through the relevant KOHLER diagnostic
tool interfaced with the ECU.
Fig. 11.107
