Kohler KDI 1903 TCR

289
EN

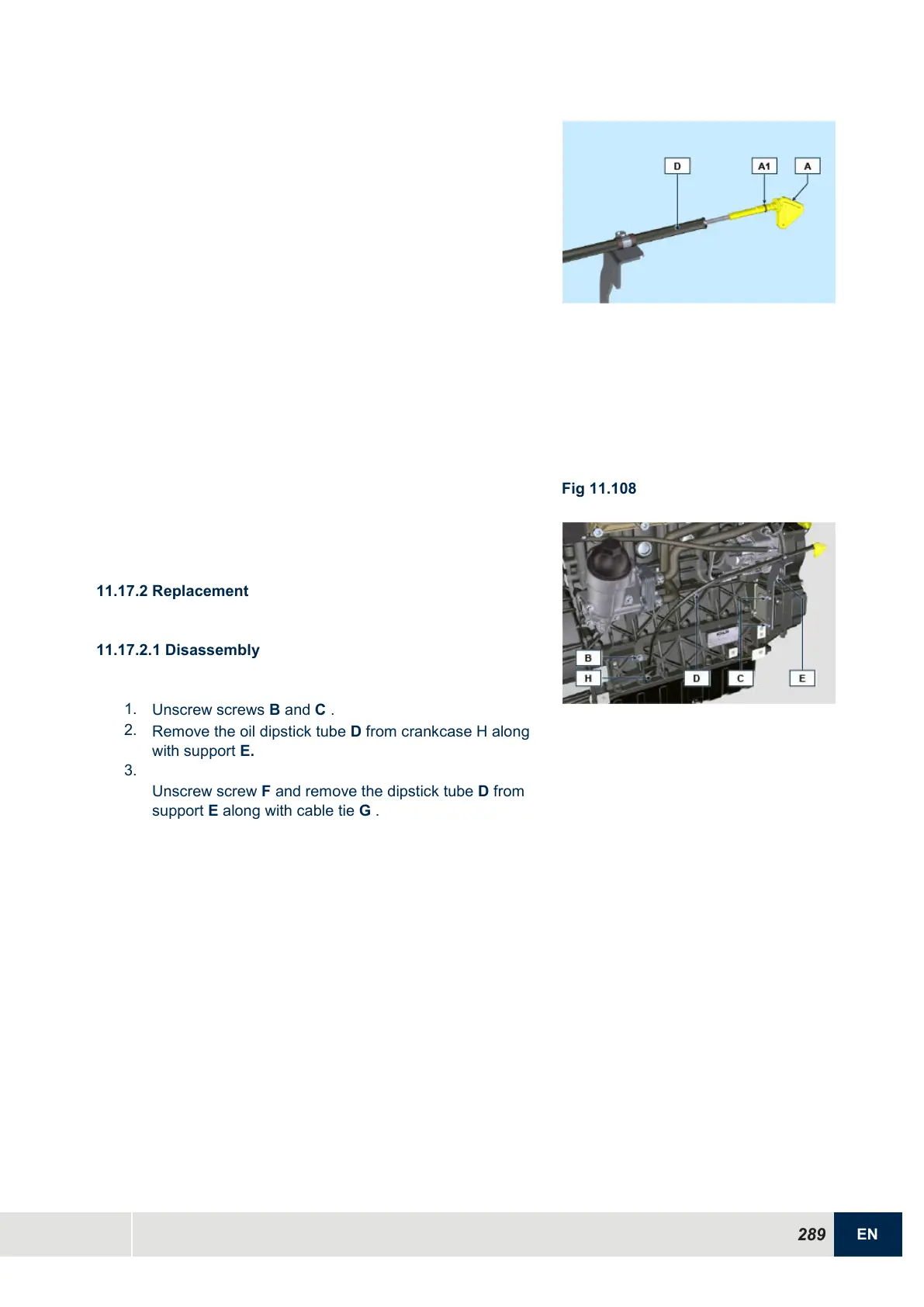

Fig 11.108
11.17.2 Replacement
11.17.2.1 Disassembly
1.
Unscrew screws B and C .
2.
Remove the oil dipstick tube D from crankcase H along
with support E.
3.
Unscrew screw F and remove the dipstick tube D from
support E along with cable tie G .
