Kohler KDI 1903 TCR Workshop Manual

EN
290

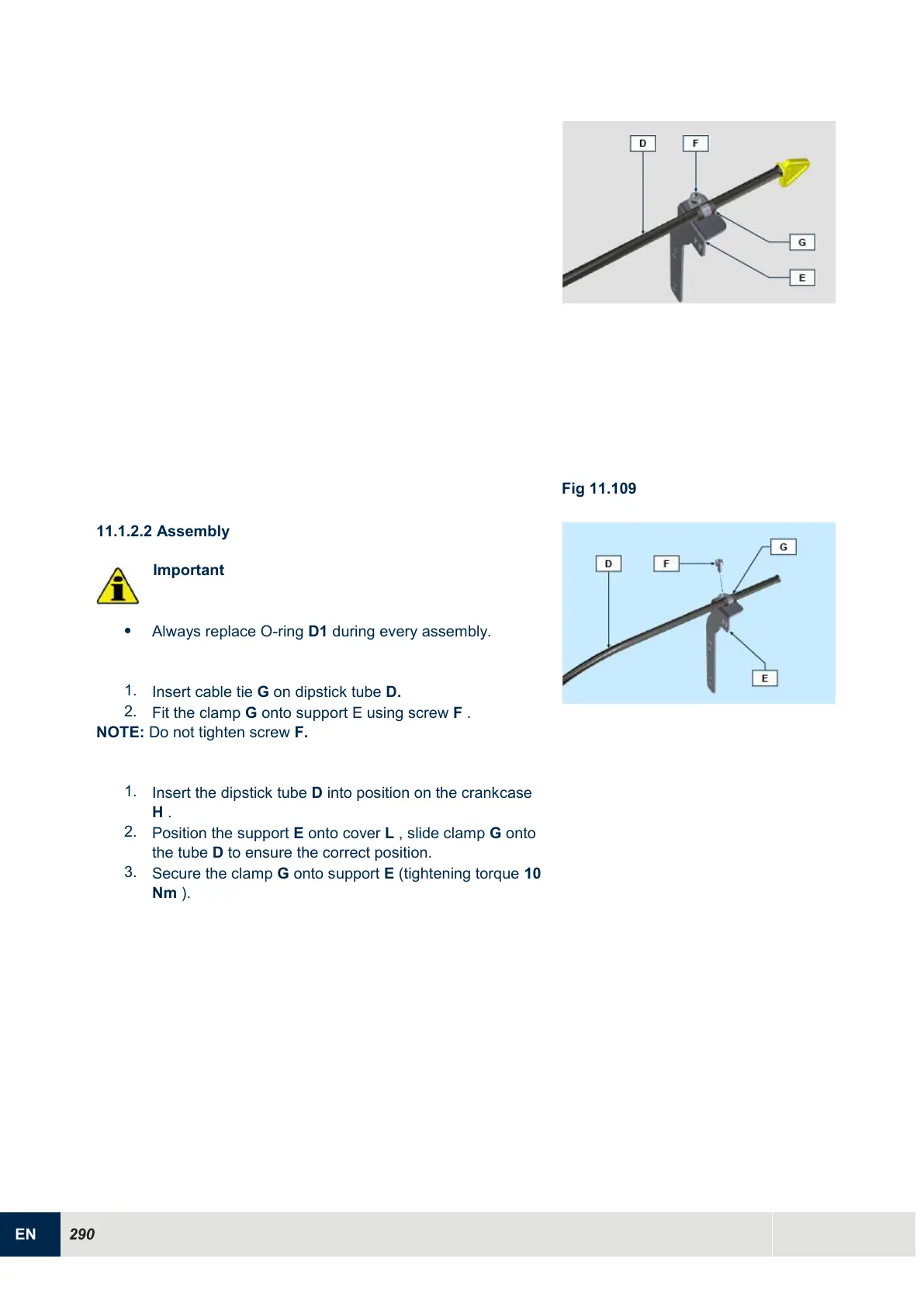

Fig 11.109
11.1.2.2 Assembly
Important

Always replace O-ring D1 during every assembly.
1.
Insert cable tie G on dipstick tube D.
2.
Fit the clamp G onto support E using screw F .
NOTE:
Do not tighten screw
F.
1.
Insert the dipstick tube D into position on the crankcase
H .
2.
Position the support E onto cover L , slide clamp G onto
the tube D to ensure the correct position.
3.
Secure the clamp G onto support E (tightening torque 10
Nm ).
