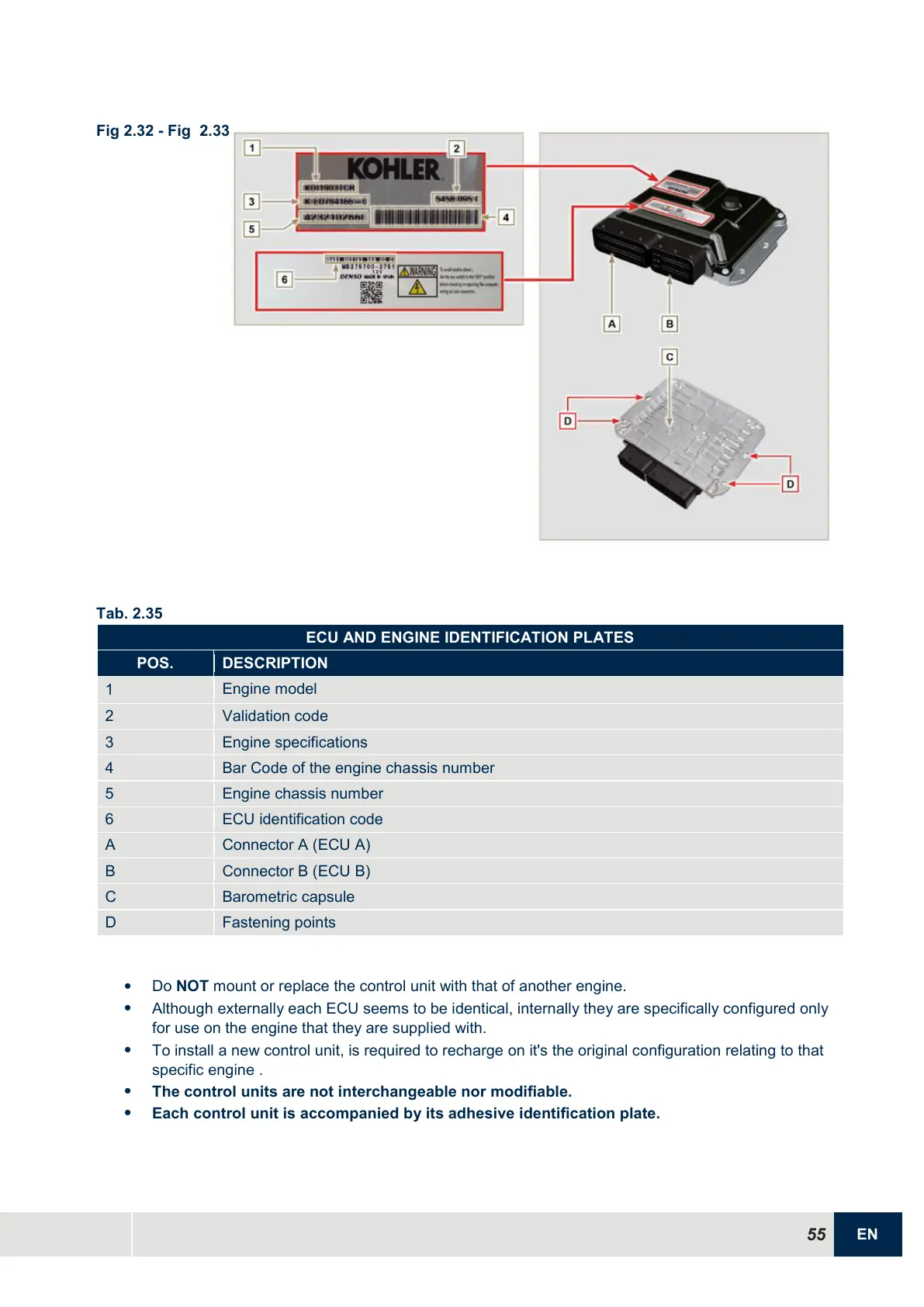

Fig 2.32 - Fig 2.33
Tab. 2.35
ECU AND ENGINE IDENTIFICATION PLATES
POS.
DESCRIPTION
1
Engine model
2
Validation code
3
Engine specifications
4
Bar Code of the engine chassis number
5
Engine chassis number
6
ECU identification code
A
Connector A (ECU A)
B
Connector B (ECU B)
C
Barometric capsule
D
Fastening points

Do NOT mount or replace the control unit with that of another engine.

Although externally each ECU seems to be identical, internally they are specifically configured only
for use on the engine that they are supplied with.

To install a new control unit, is required to recharge on it's the original configuration relating to that
specific engine .

The control units are not interchangeable nor modifiable.

Each control unit is accompanied by its adhesive identification plate.
