Kohler KDI 1903 TCR Workshop Manual

57
EN

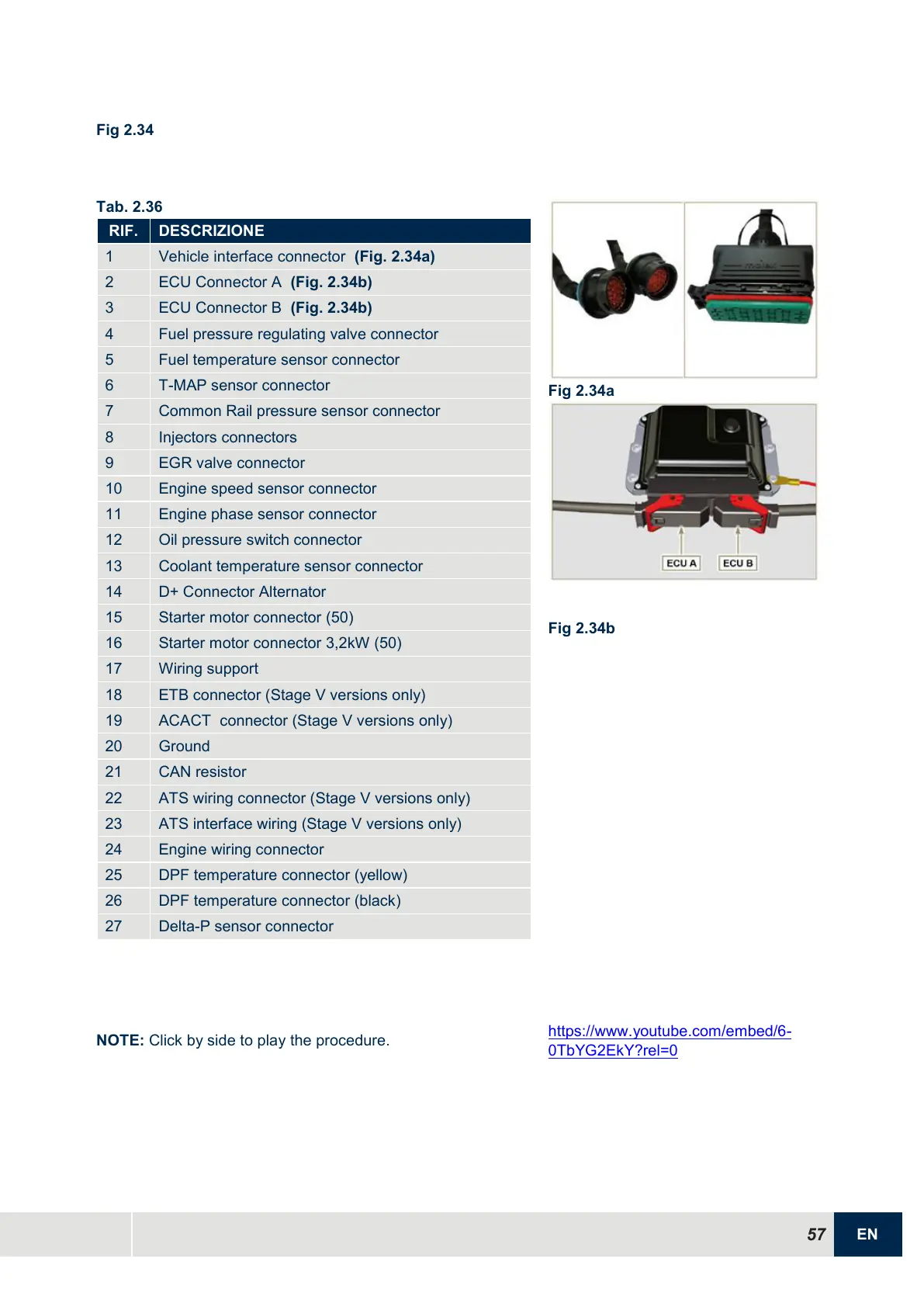

Fig 2.34
Tab. 2.36
RIF.
DESCRIZIONE
1
Vehicle interface connector (Fig. 2.34a)
2
ECU Connector A (Fig. 2.34b)
3
ECU Connector B (Fig. 2.34b)
4
Fuel pressure regulating valve connector
5
Fuel temperature sensor connector
6
T-MAP sensor connector
7
Common Rail pressure sensor connector
8
Injectors connectors
9
EGR valve connector
10
Engine speed sensor connector
11
Engine phase sensor connector
12
Oil pressure switch connector
13
Coolant temperature sensor connector
14
D+ Connector Alternator
15
Starter motor connector (50)
16
Starter motor connector 3,2kW (50)
17
Wiring support
18
ETB connector (Stage V versions only)
19
ACACT connector (Stage V versions only)
20
Ground
21
CAN resistor
22
ATS wiring connector (Stage V versions only)
23
ATS interface wiring (Stage V versions only)
24
Engine wiring connector
25
DPF temperature connector (yellow)
26
DPF temperature connector (black)
27
Delta-P sensor connector
Fig 2.34a
Fig 2.34b
NOTE:
Click by side to play the procedure.
https://www.youtube.com/embed/6-
0TbYG2EkY?rel=0
