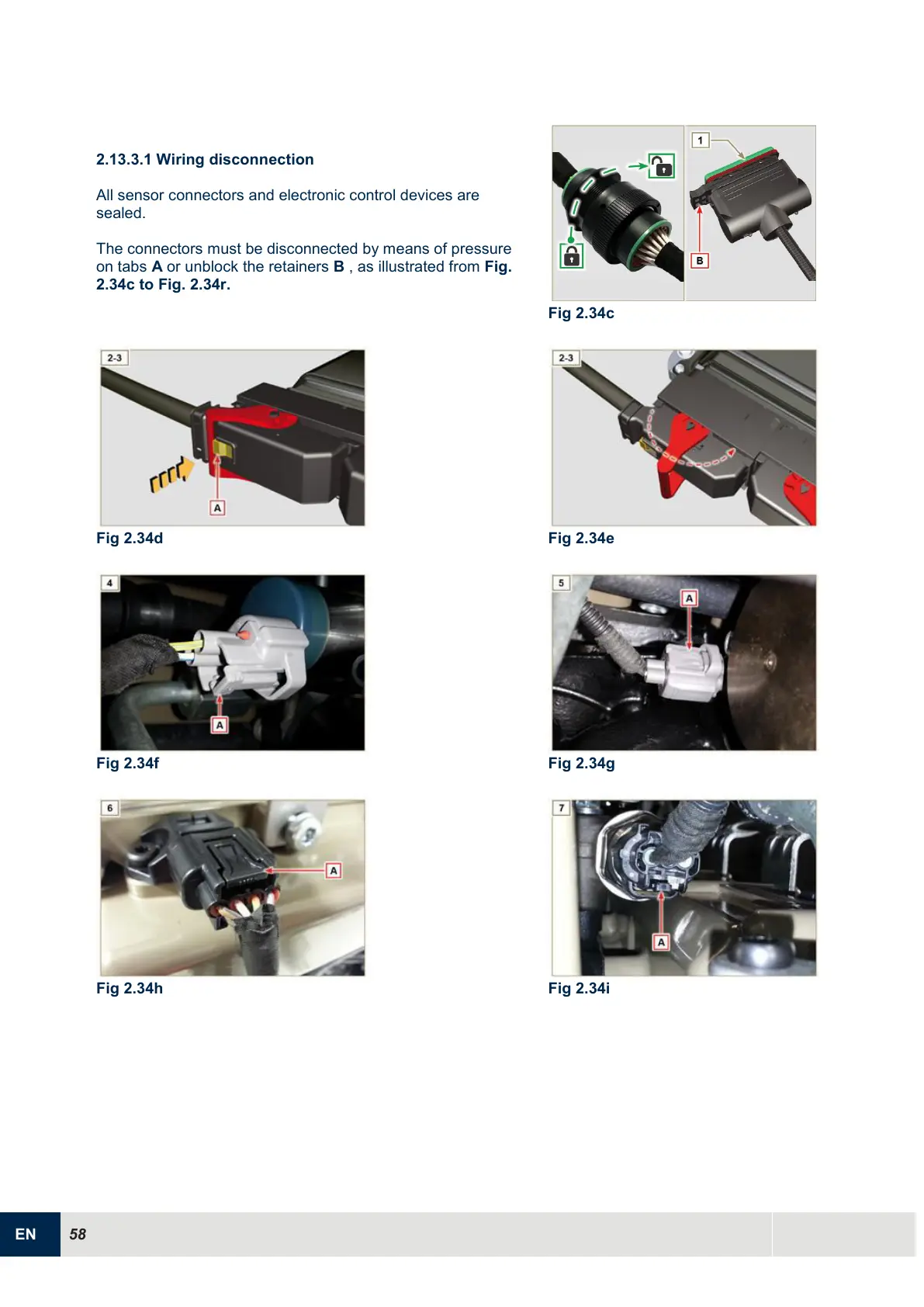

2.13.3.1 Wiring disconnection
All sensor connectors and electronic control devices are
sealed.
The connectors must be disconnected by means of pressure
on tabs A or unblock the retainers B , as illustrated from Fig.
2.34c to Fig. 2.34r.
Fig 2.34c
Fig 2.34d
Fig 2.34e
Fig 2.34f
Fig 2.34g
Fig 2.34h
Fig 2.34i
