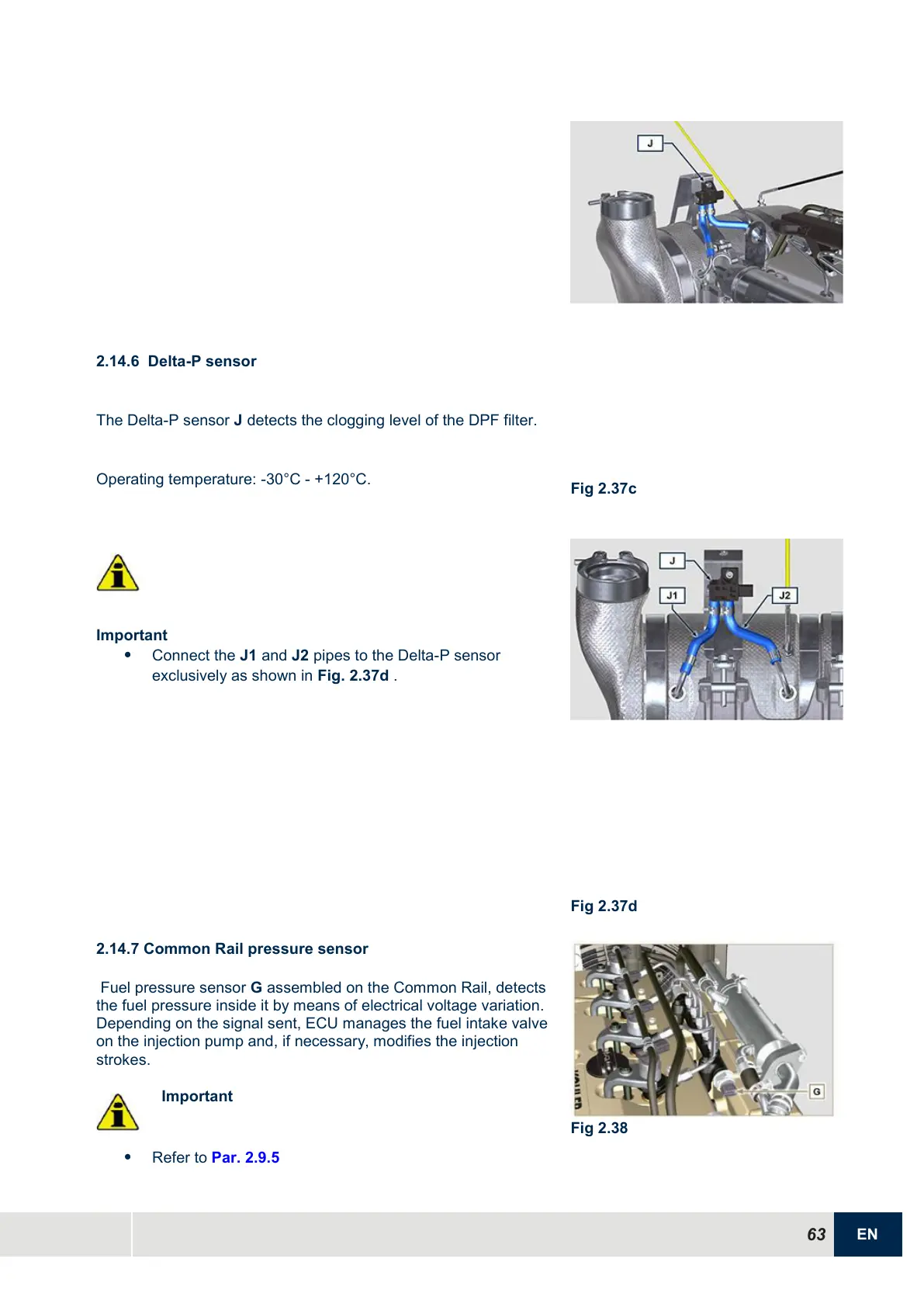

2.14.6 Delta-P sensor
The Delta-P sensor
J
detects the clogging level of the DPF filter.
Operating temperature: -30°C - +120°C.
Important

Connect the J1 and J2 pipes to the Delta-P sensor
exclusively as shown in Fig. 2.37d .
Fig 2.37c
Fig 2.37d
2.14.7 Common Rail pressure sensor
Fuel pressure sensor G assembled on the Common Rail, detects
the fuel pressure inside it by means of electrical voltage variation.
Depending on the signal sent, ECU manages the fuel intake valve
on the injection pump and, if necessary, modifies the injection
strokes.
Important

Refer to Par. 2.9.5
Fig 2.38
