12M CIRCUMFERENCE VISIBILITY 1

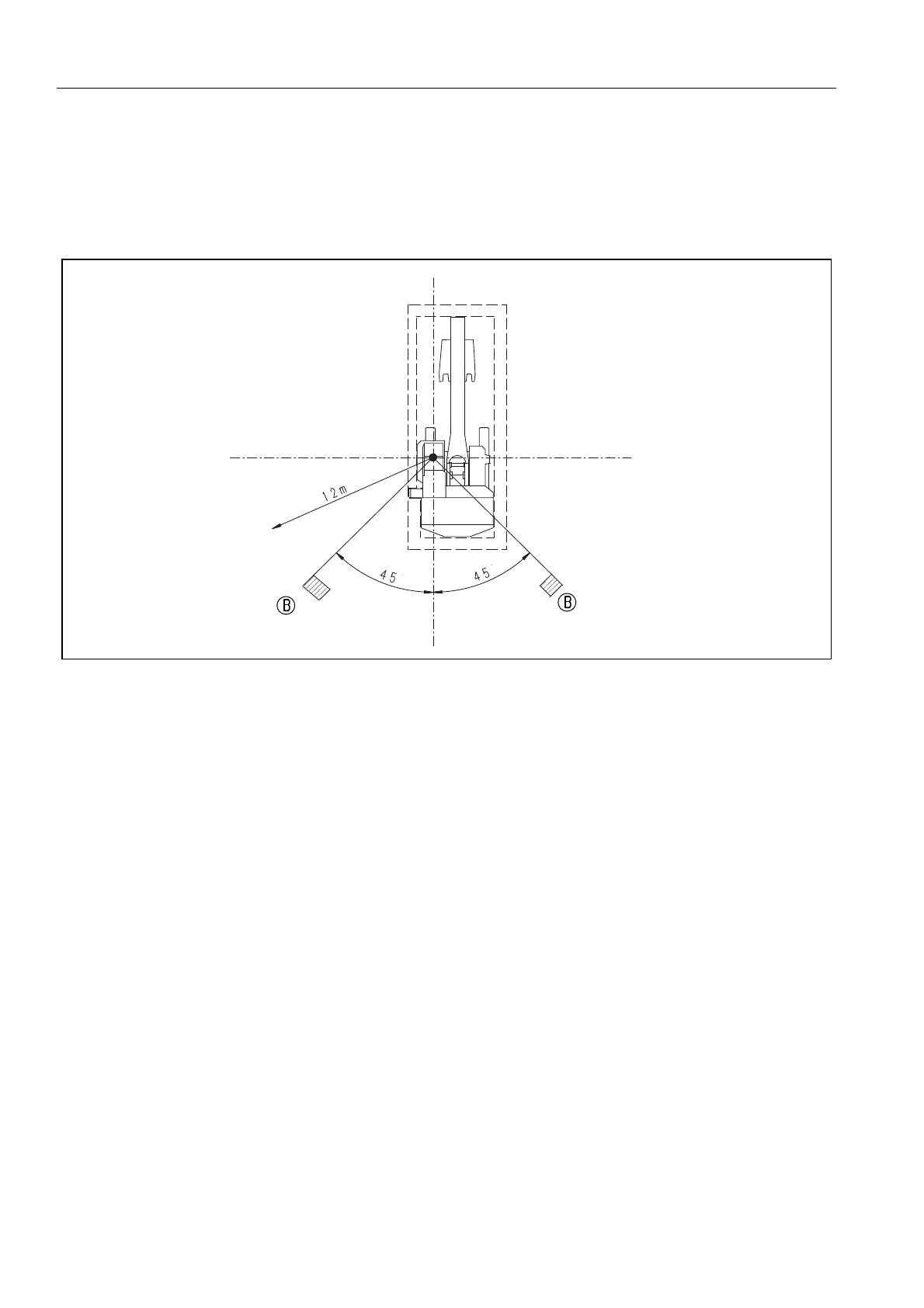

The visibility at a radius of 12 m from the machine is as shown in the diagram below. The hatched areas (B) show
the areas where the view is blocked when mirrors or other aids to visibility are installed as standard. Please be
fully aware that there are places that cannot be seen when operating the machine. Before moving the machine,
sound horn and be sure that no one is in the area.
9JH12062A
3°
10.5°
