OPERATION DETAILED CONTROLS AND GAUGES
3-133

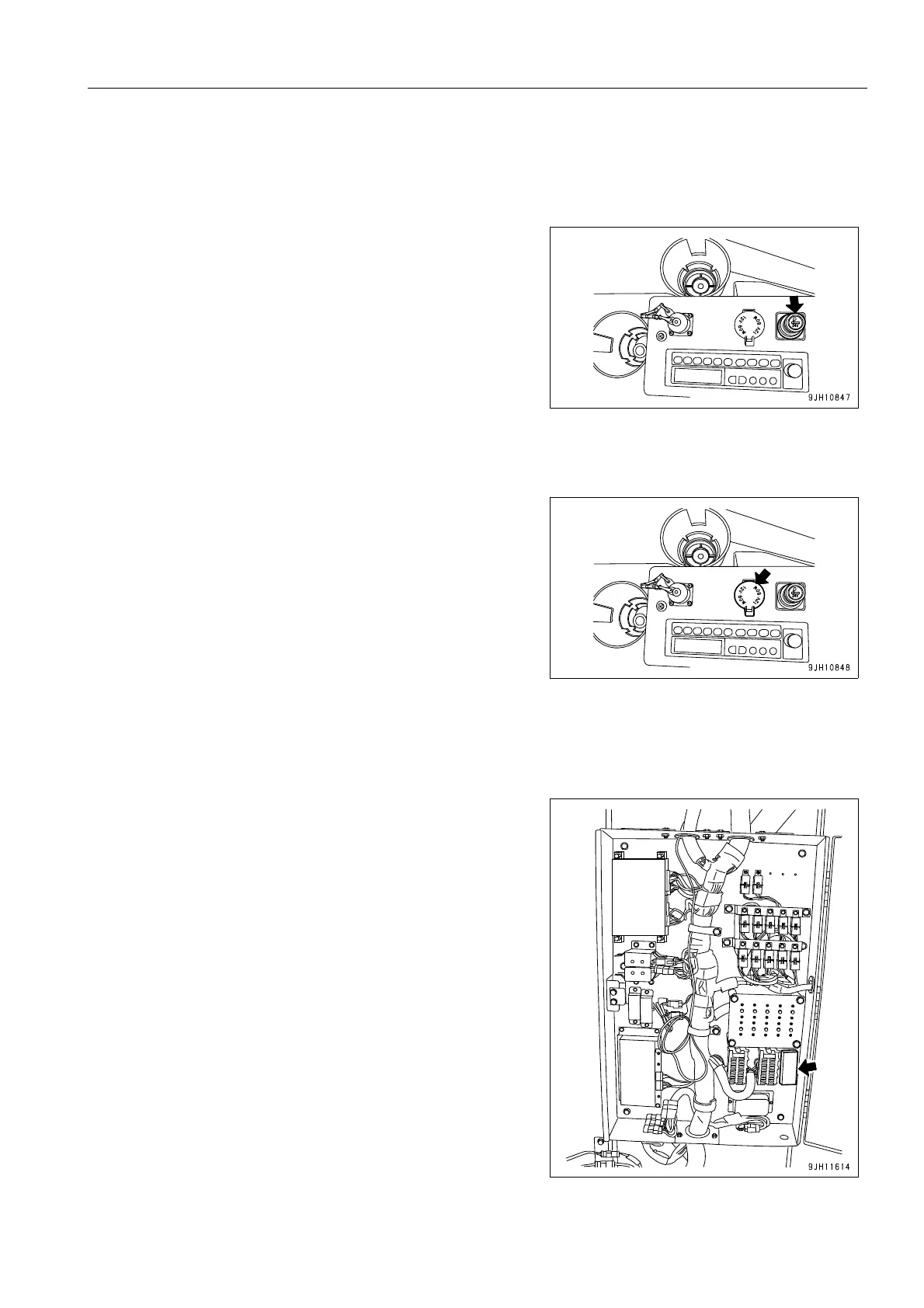

AUXILIARY ELECTRIC POWER 3
24V Power Source 3
Do not use this as the power supply for 12V equipment.
It will cause failure of the equipment.
Pull out the connector plug for taking out electric power from
the rear side of the panel.
Maximum usable electric power is 85 W (24 V x 3.5 A).
12V Power Source 3
This power source can be used up to a capacity of 60W (12V x
5A).
Additional Power Source 3
(if equipped)
The capacity of these power sources is as follows.
720W (24V x 30A) x 1
240W (24V x 10A) x 3
480W (24V x 20A) x 2
To Next Page
