Komatsu PC2000-8 - Switches (Outside of Machine)

OPERATION DETAILED CONTROLS AND GAUGES
3-87

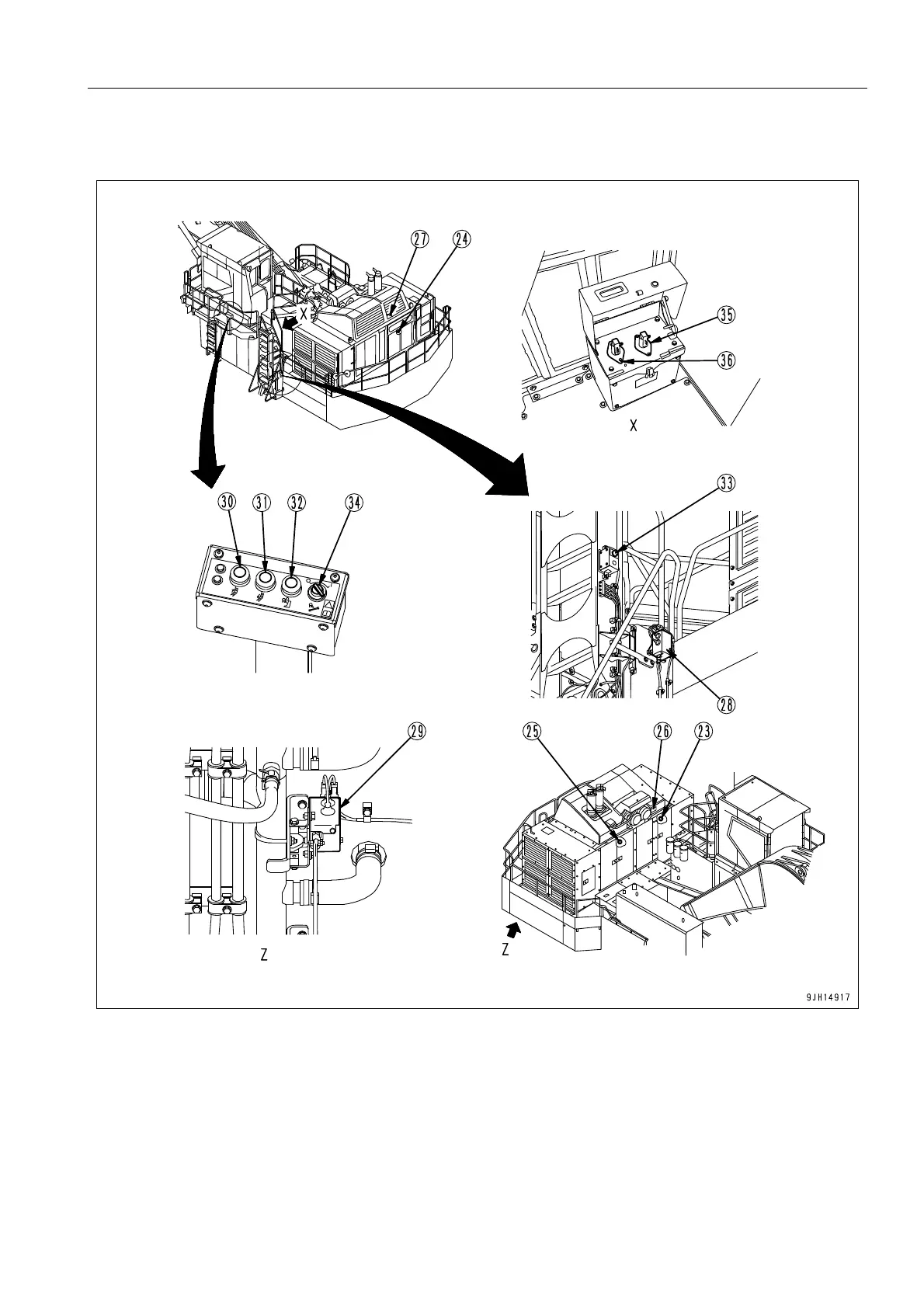

SWITCHES (OUTSIDE OF MACHINE) 3
23) Room lamp switch (front of engine room) (30) Ladder raising switch
(24) Room lamp switch (rear of engine room) (31) Ladder lowering switch
(25) Room lamp switch (pump room) (32) Step light switch
(26) Engine emergency stop switch (front of power container) (33) Step light switch
(27) Engine emergency stop switch (rear of power container) (34) Nighttime maintenance switch
(28) Engine emergency stop switch (left side of machine)(if equipped) (35) Battery isolator switch (if equipped)
(29) Engine emergency stop switch (right side of machine)(if equipped) (36) Starter isolator switch (if equipped)
