Komatsu PC2000-8 - Lamp (Outside of Machine)

To Next Page

To Previous Page

DETAILED CONTROLS AND GAUGES OPERATION

3-100

LAMP (OUTSIDE OF MACHINE) 3

9JH14996A

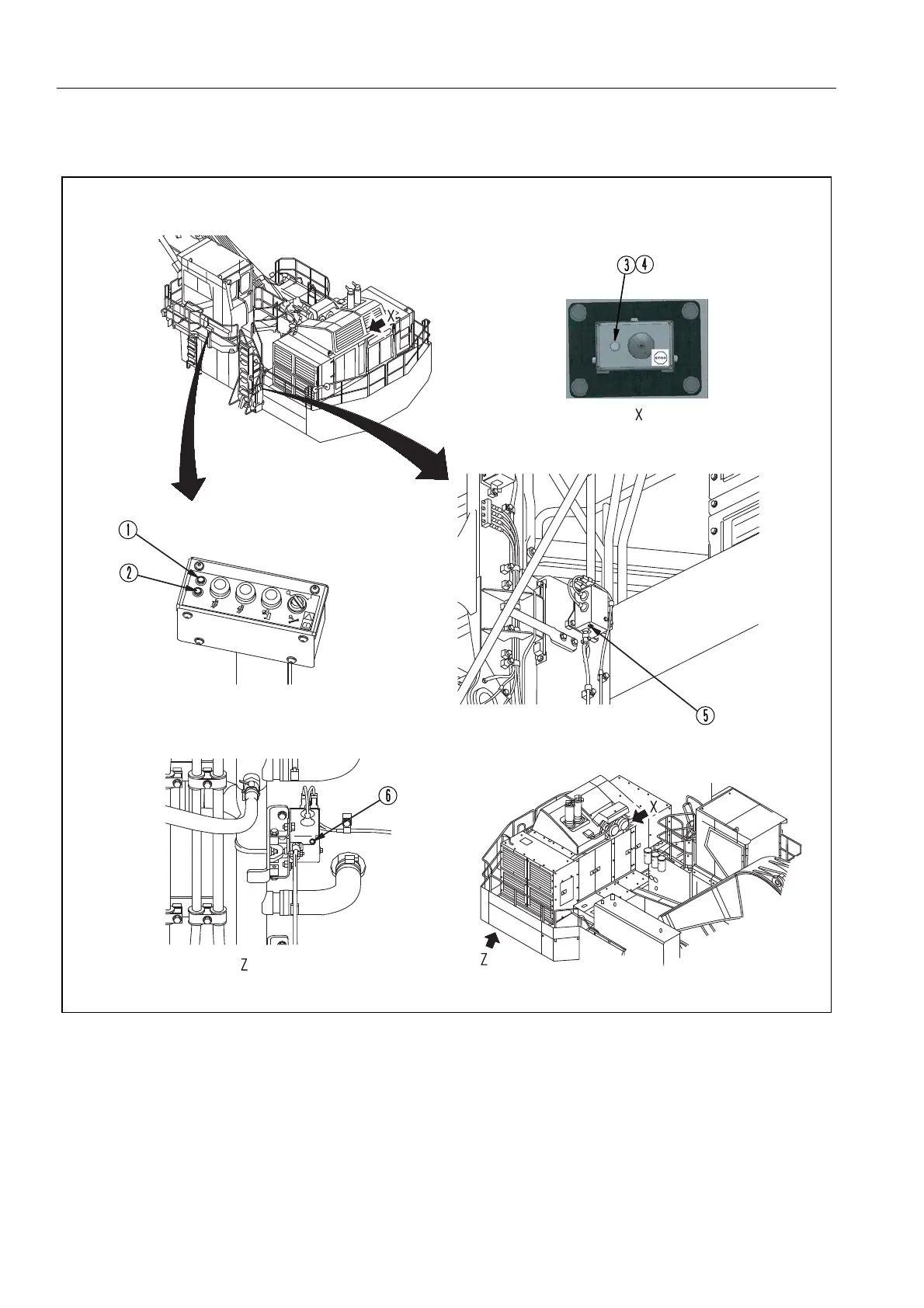

(1) Proximity switch warning lamp (4) Engine emergency stop Indicator lamp

(2) Proximity switch warning lamp (5) Engine emergency stop Indicator lamp

(if equipped)

(3) Engine emergency stop Indicator lamp (6) Engine emergency stop Indicator lamp

(if equipped)
