GREASING LADDER SERVICE ARM 6
Grease the ladder once every 1000 hours.

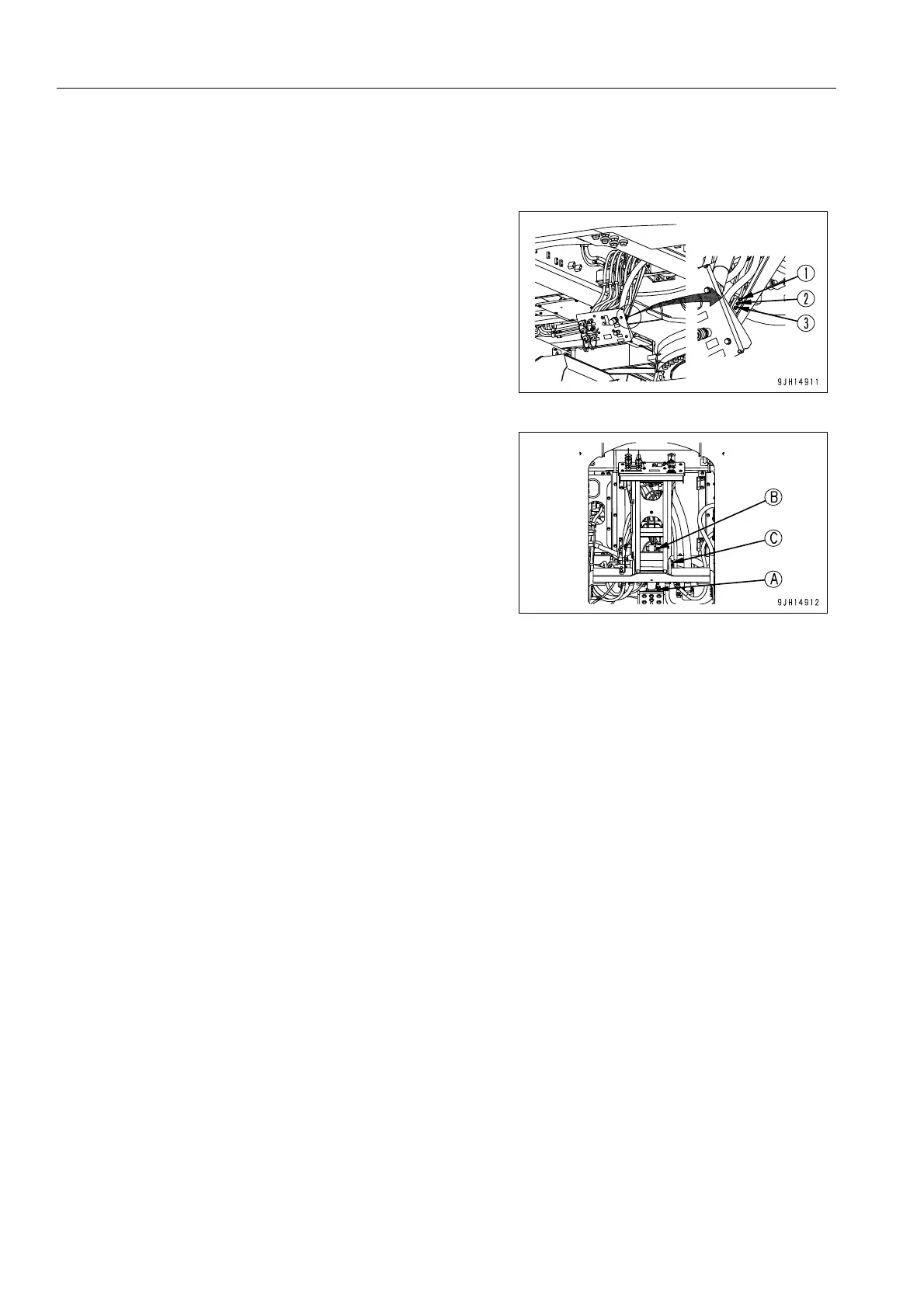

Set the service center to the lowered position as shown in the
diagram on the right, then pump in grease with a grease gun
through grease fittings (1) to (3).
Destination for grease pumped in through each grease fitting
(1): Service arm cylinder bottom pin (A)
(2): Service arm cylinder head pin (B)
(3): Service arm link pin (C)
