OPERATION DETAILED CONTROLS AND GAUGES
3-109

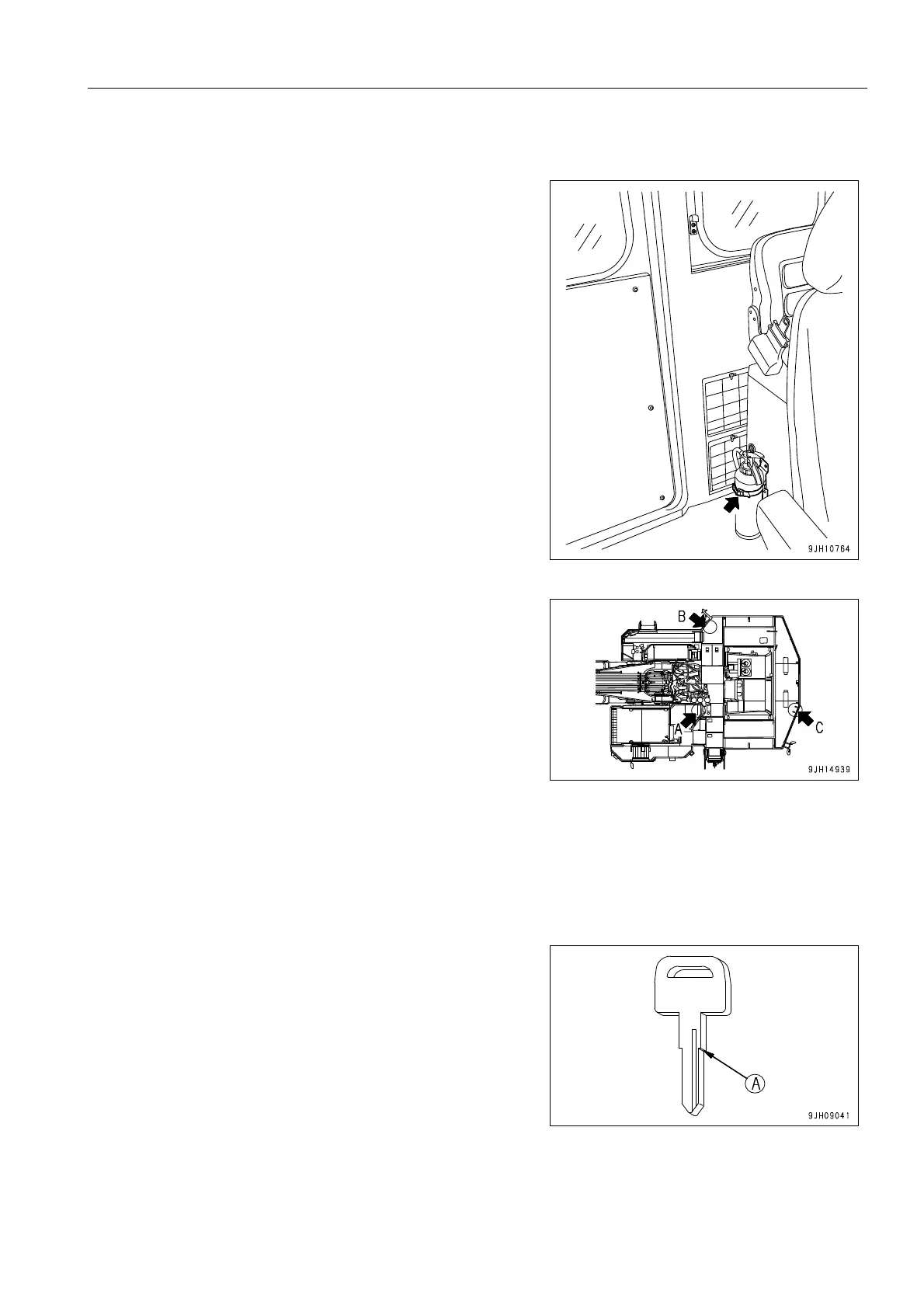

FIRE EXTINGUISHER 3
This is installed on the right side at the bottom of the assistant's
seat.
Details of the method of use are given on the label stuck to the
fire extinguisher. Always read and understand the instructions
beforehand in order to be prepared in case of an emergency.
It is possible to install a total of 4 fire extinguishers: one is
installed at the bottom right of the assistant's seat and there are
three other places where additional fire extinguishers can be
installed.
If you wish to have additional fire extinguishers, please consult
your Komatsu distributor.
The three places where additional fire extinguishers can be
installed are as follows.
q (A) Rear of catwalk on top of hydraulic tank
q (B) Top of catwalk at front right of power container
q (C) Rear of counterweight
CAP WITH LOCK 3
Use the starting switch key to open and close the locks on the caps and covers.
For details of the locations of the caps and covers with locks, see “LOCKING (3-233)“.
Insert the key as far as it will go to the shoulder (A). If the key is
turned before it is inserted all the way, it may break.
