OPERATION DETAILED CONTROLS AND GAUGES
3-105
EMERGENCY ESCAPE HAMMER 3
When escaping, remove the broken pieces of the glass from the sash so that you will not cut yourself with
them. Take care not to slip on the broken and scattered pieces.

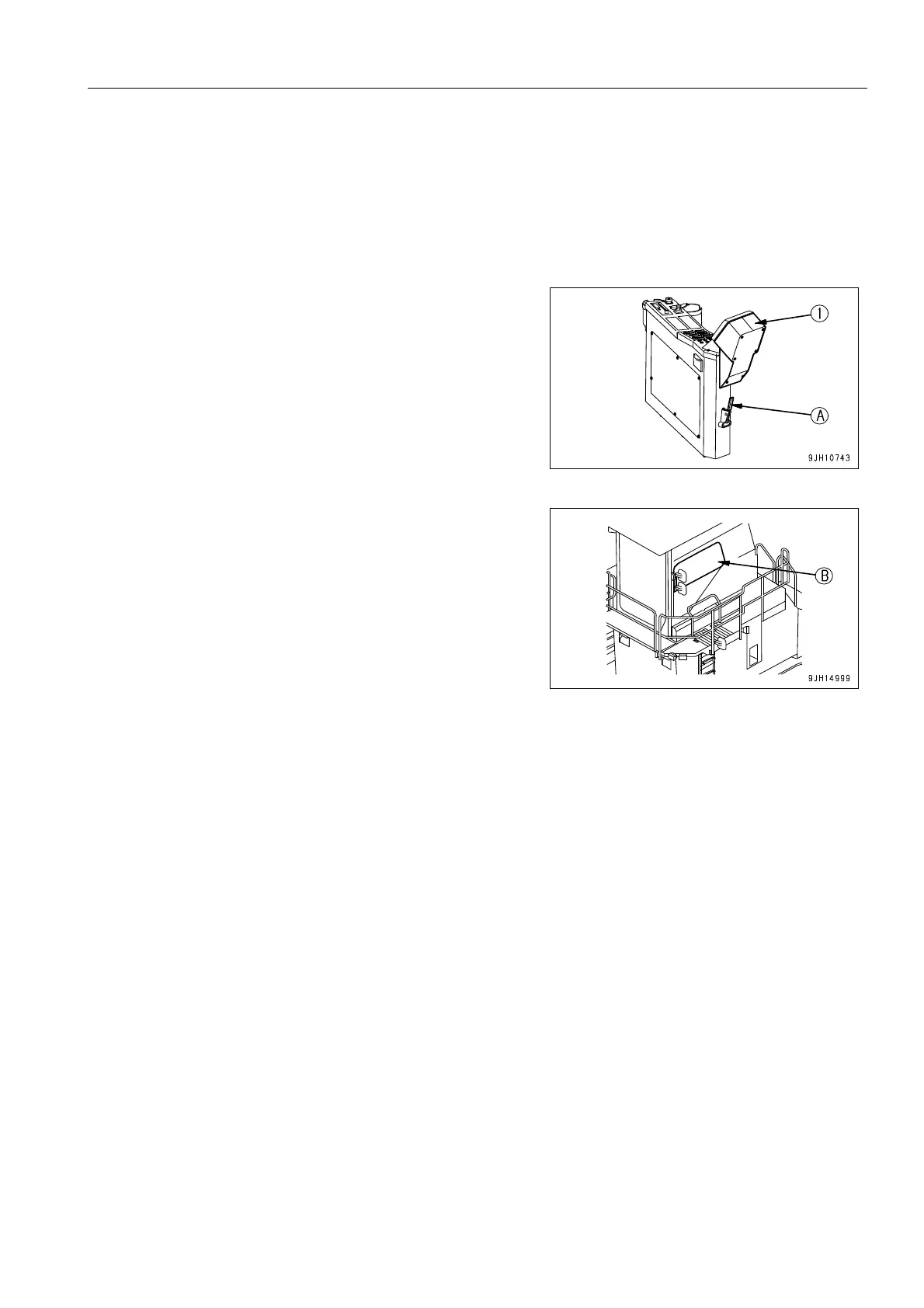

Hammer (A) is provided to help the operator get out of the cab
in emergency, when the cab door or window will not open.
q Hammer (A) is installed at the front at the rear of the front
left multi-monitor (1) inside the operator's compartment.
To escape, hit window glass (B) with hammer (A) to break it,
then escape through the window.
To Next Page
