MAINTENANCE MAINTENANCE PROCEDURE
4-103
GREASING HYDRAULIC LADDER 4

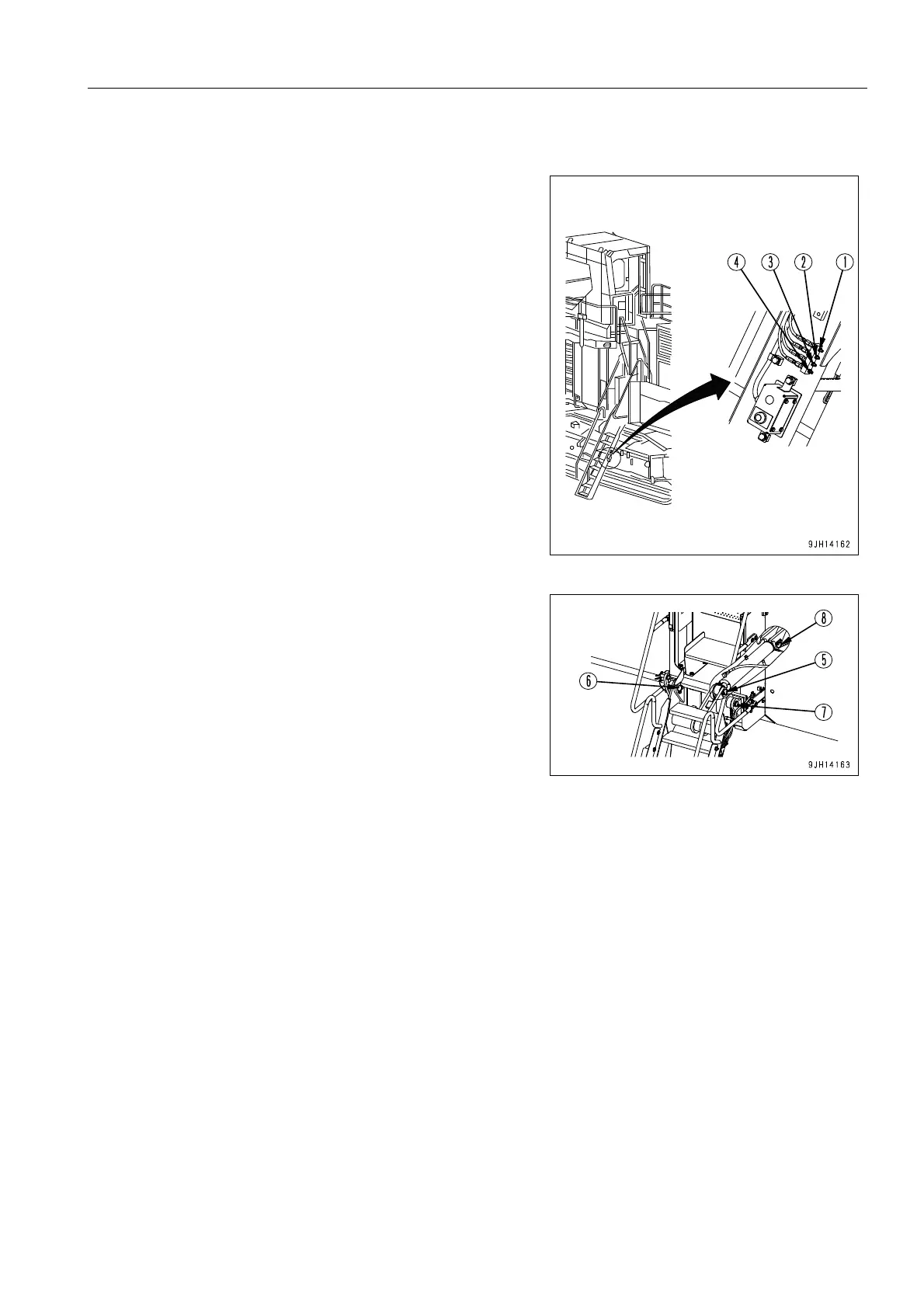

Set the hydraulic ladder to the lowered position as shown in the
diagram on the right, then pump in grease with a grease gun
through grease fittings (1) to (4).
Destination for grease pumped in through each grease fitting
(1): Ladder cylinder head pin (5)
(2): Ladder link pin (front) (6)
(3): Ladder link pin (rear) (7)
(4): Ladder cylinder bottom pin (8)
