AIR CONDITIONER CONTROLS 3
Air Conditioner Control Panel 3
OFF Switch
Switch (1) is used to stop the fan and air conditioner.
q When OFF switch (1) is pressed, the top portion of each of
set temperature and air flow displays on display monitor (6)
and air conditioner switch (7) go out, and operation stops.
Even if switch (1) is turned OFF, the lamp at the top of FRESH/
RECIRC selector switch (5) does not go out, but this does not
indicate any abnormality.

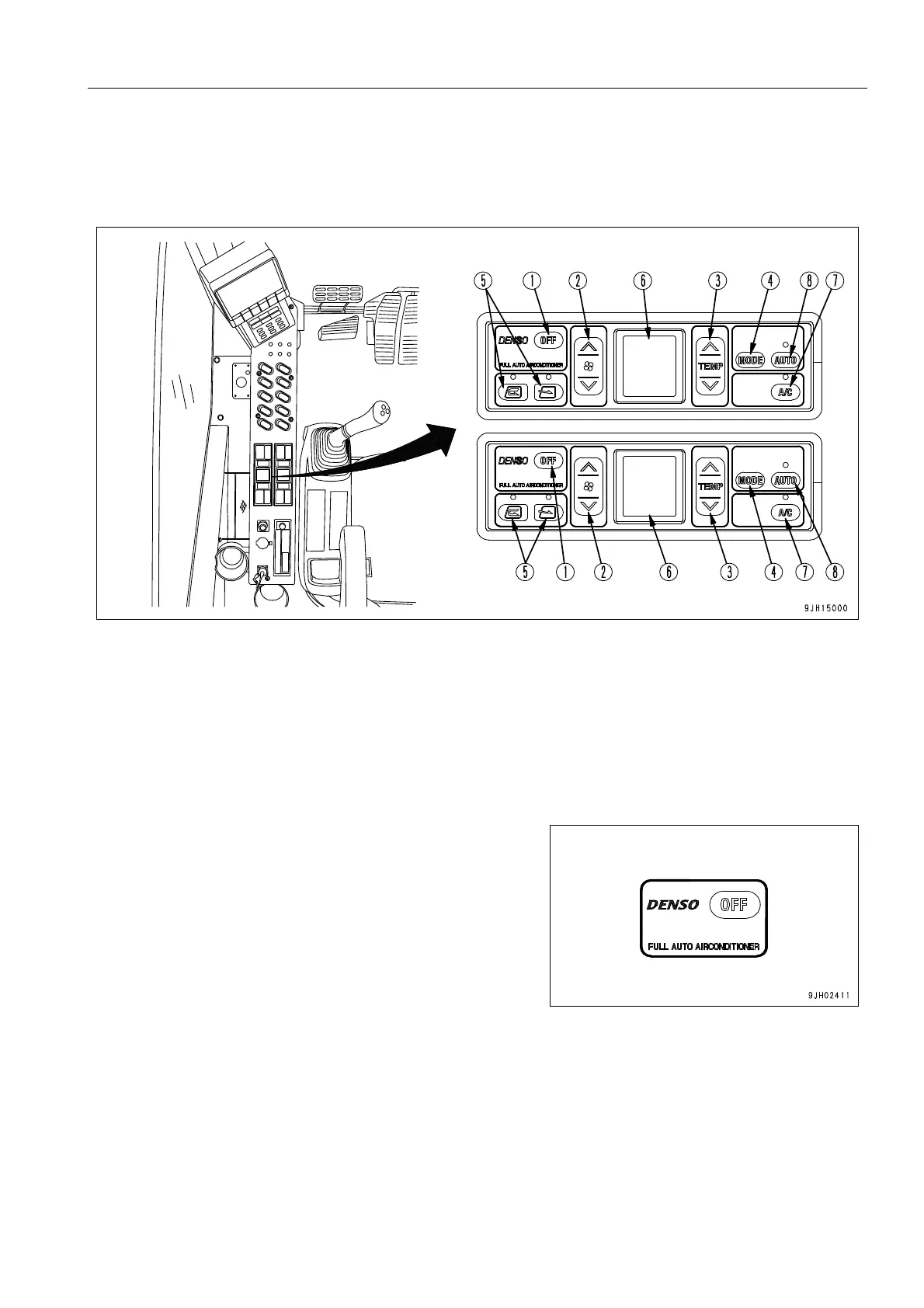

(1) OFF switch (5) FRESH/RECIRC selector switch
(2) Fan switch (6) Display monitor
(3) Temperature control switch (7) Air conditioner switch
(4) Vent selector switch (8) Auto switch
