EVERY 250 HOURS MAINTENANCE 4
CHECK OIL LEVEL IN FINAL DRIVE CASE, ADD OIL 4
q The parts and oil are at high temperature immediately after the engine is stopped, and may cause seri-
ous burns. Wait for the temperature to go down before starting the operation.
q If there is still pressure remaining inside the case, the oil or plug may fly out.
Loosen the plug slowly to release the pressure.
q Prepare a handle.

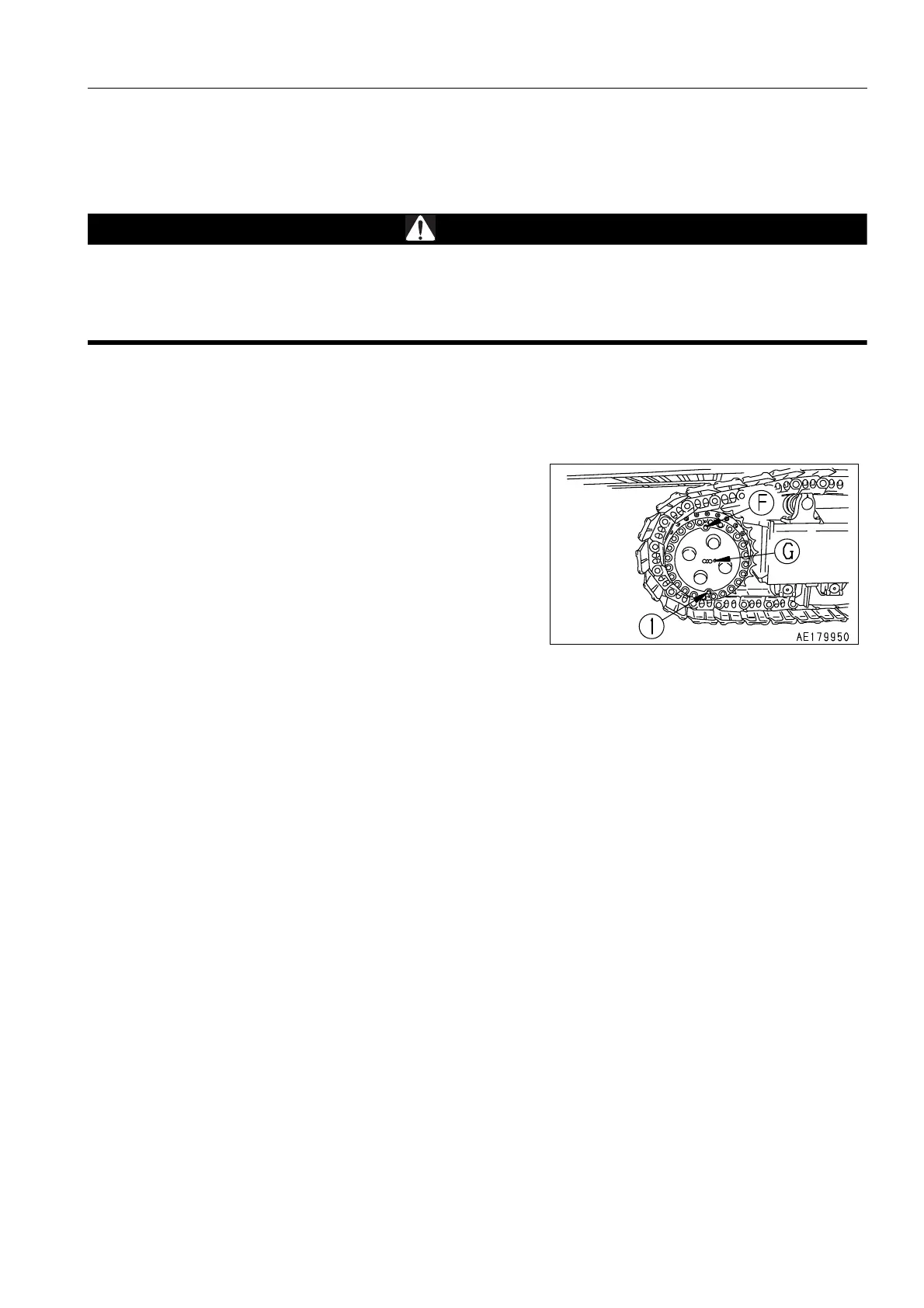

1. Set so that plug (1) on the outside of the machine is at the
bottom position.
2. Using a handle, remove plug (G) and check the oil level.
The oil level should be within a range from the bottom edge
of the plug hole to 10 mm down from the hole.
3. If the oil level is low, install plug (G) again, then operate the
travel levers to rotate the sprocket one turn in the forward
or reverse direction. Repeat the procedure in Step 2 to
check the oil level again.
4. If the oil level is low, add engine oil through the hole for
plug (F).
5. After checking, install plug (F).
