MAINTENANCE PROCEDURE MAINTENANCE

4-106

EVERY 4000 HOURS MAINTENANCE 4

Maintenance for every 250, 500, 1000 and 2000 hours service should be carried out at the same time.

GREASE ENGINE MOUNT 4

(if equipped)

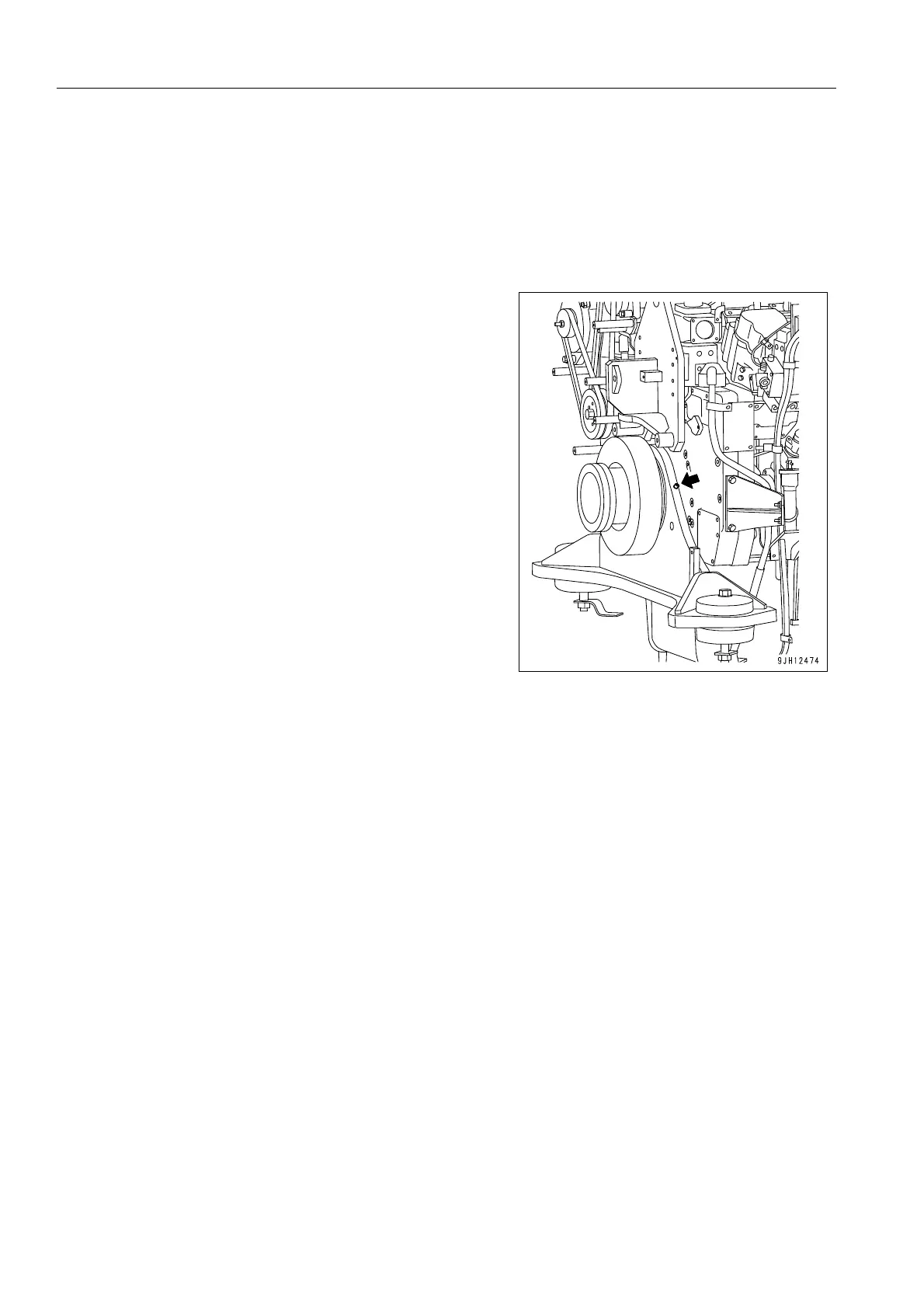

Add grease with a grease gun through grease fitting (2) on

engine mount (1).

CHECK WATER PUMP 4

Check that there is no leakage of water from around the water pump. If there is any problem, ask your Komatsu

distributor to carry out disassembly and repair or replacement.
