VISIBILITY FROM OPERATOR'S SEAT 1
The visibility for operator for this machine according to ISO 5006 is shown in the diagram below
PROXIMITY VISIBILITY 1

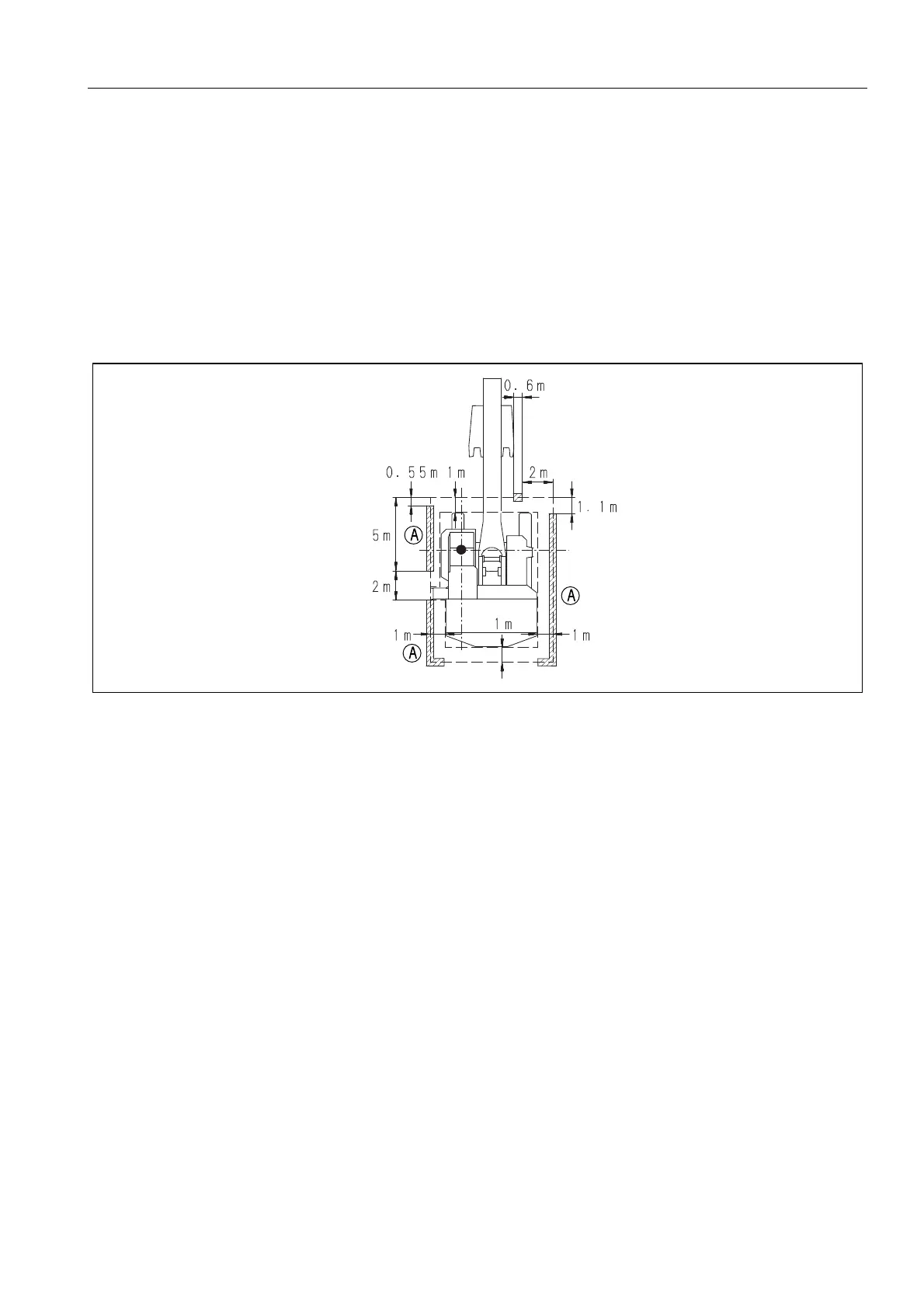

The visibility of this machine in the area 1 m from the outside surface of the machine at a height of 1.5 m is shown
in the diagram below. The hatched area (A) shows the area where the view is blocked by part of the machine when
mirrors or other aids to visibility are installed as standard. Please be fully aware that there are places that cannot
be seen when operating the machine. Before moving the machine, sound horn and be sure that no one is in the
area.
