Komatsu PC2000-8 - Fuse (if Equipped)

OPERATION DETAILED CONTROLS AND GAUGES
3-139
FUSE (IF EQUIPPED) 3

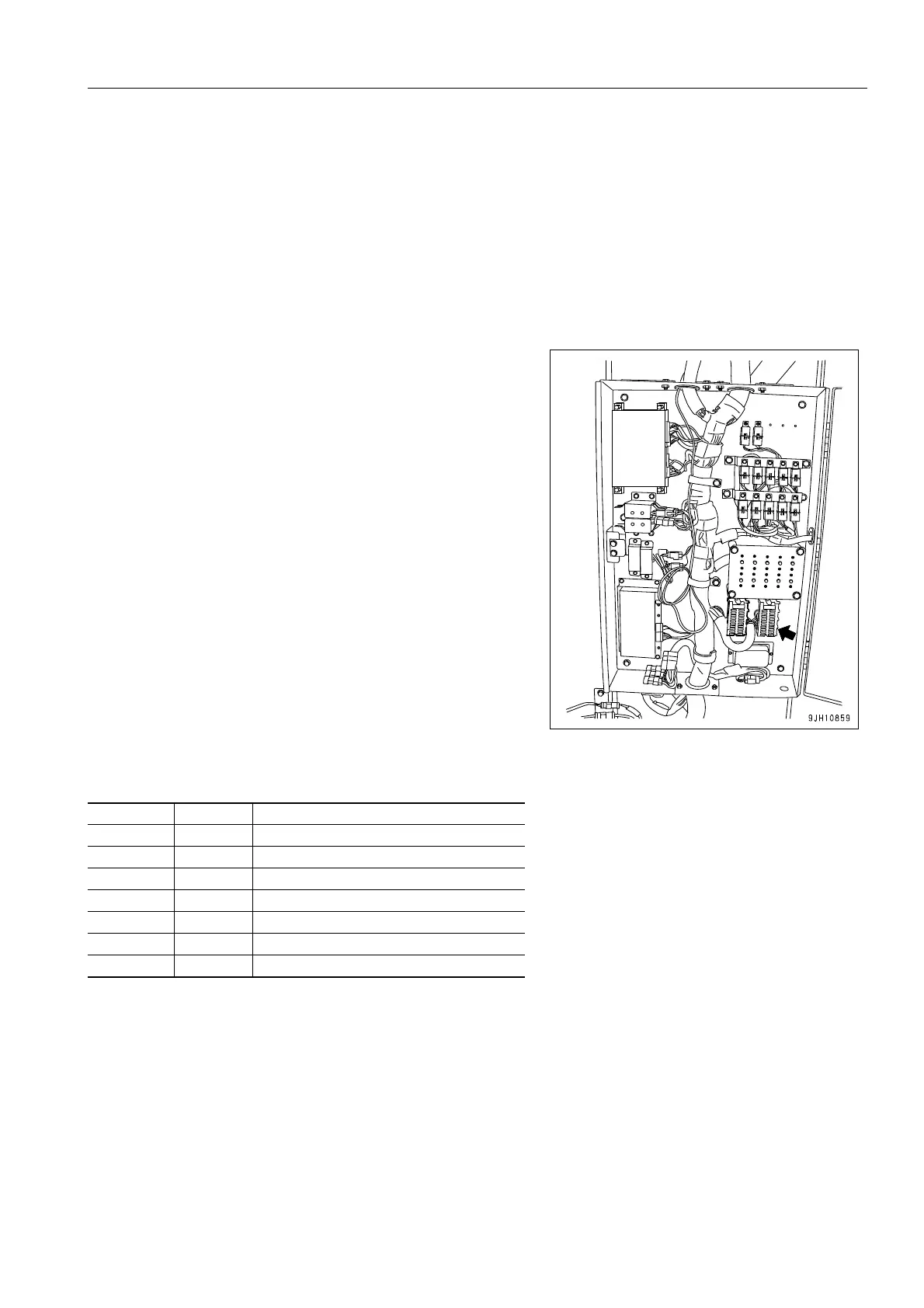

This is installed to the power board inside the cab base room.
NOTICE
Before replacing fuses, be sure to first turn the starting switch to the OFF position, wait over one minute, then
switch off the battery isolator switch.
The fuses protect the electrical equipment and wiring from
burning out.
If the fuse becomes corroded, or white powder can be seen, or
the fuse is loose in the fuse holder, replace the fuse.
Replace the fuse with another of the same capacity.
Fuse Capasity And Circuit Names
No. Capacity Circuit name
1 30A Additional terminal 1
2 10A Additional terminal 2
3 10A Additional terminal 3
4 10A Additional terminal 4
5 20A Additional terminal 5
6 20A Additional terminal 6
7 - 20 - -
