OPERATION DETAILED CONTROLS AND GAUGES
3-7
DETAILED CONTROLS AND GAUGES 3
The following is an explanation of devices needed for operating the machine.
To perform suitable operations correctly and safely, it is important to completely understand methods of operating
the equipment, and the meanings of the displays.

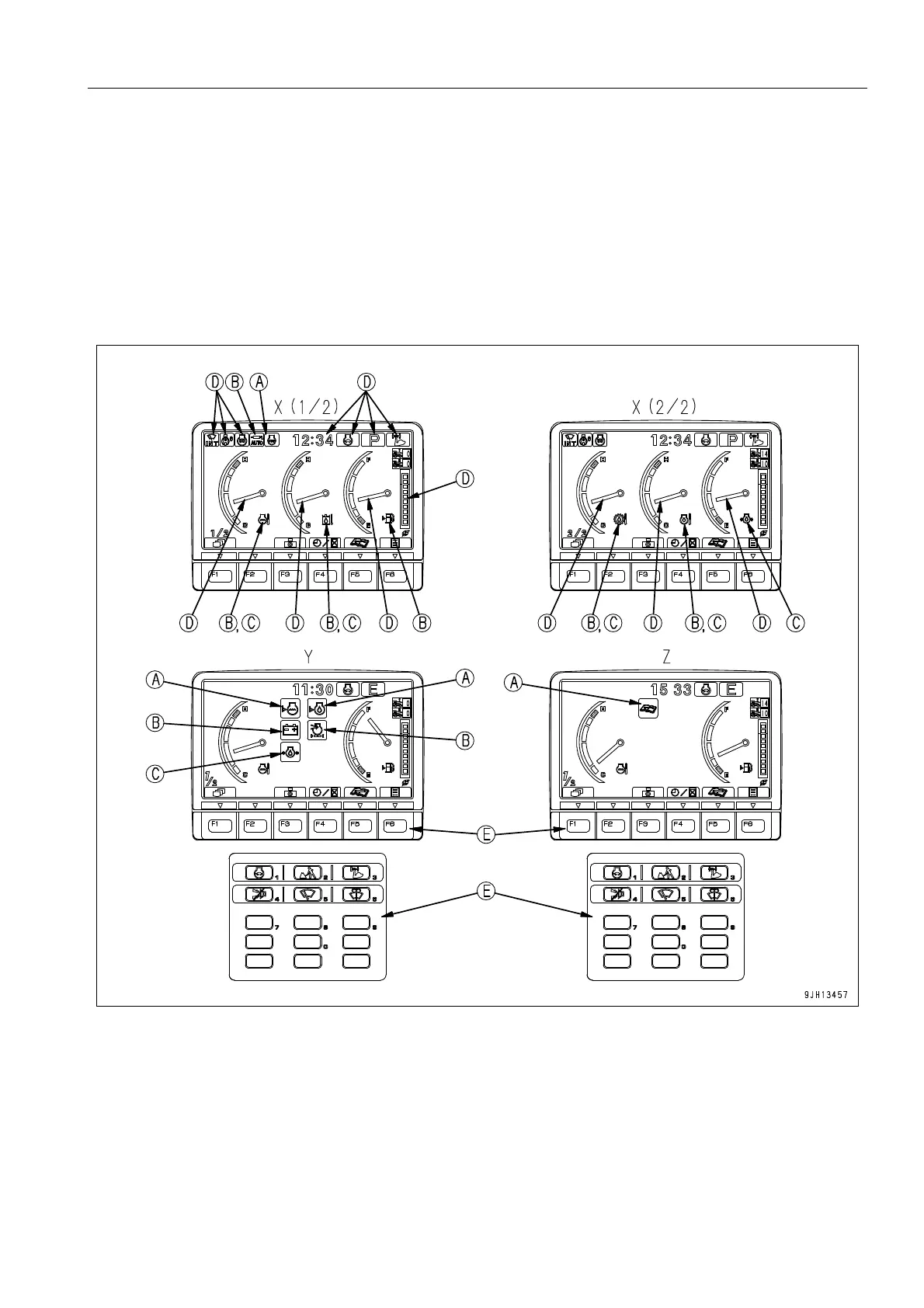

MONITORING SYSTEM 3
X(1/2): Normal operation screen (1/2) pilot screen all
lights up
Y: Check before starting screen
X(2/2): Normal operation screen (2/2) Z: Maintenance interval warning screen
A: Basic Check items D: Meter display portion, pilot display portion
B: Caution items E: Monitor switches portion
C: Emergency stop items
