MACHINE VIEW ILLUSTRATIONS OPERATION

3-6

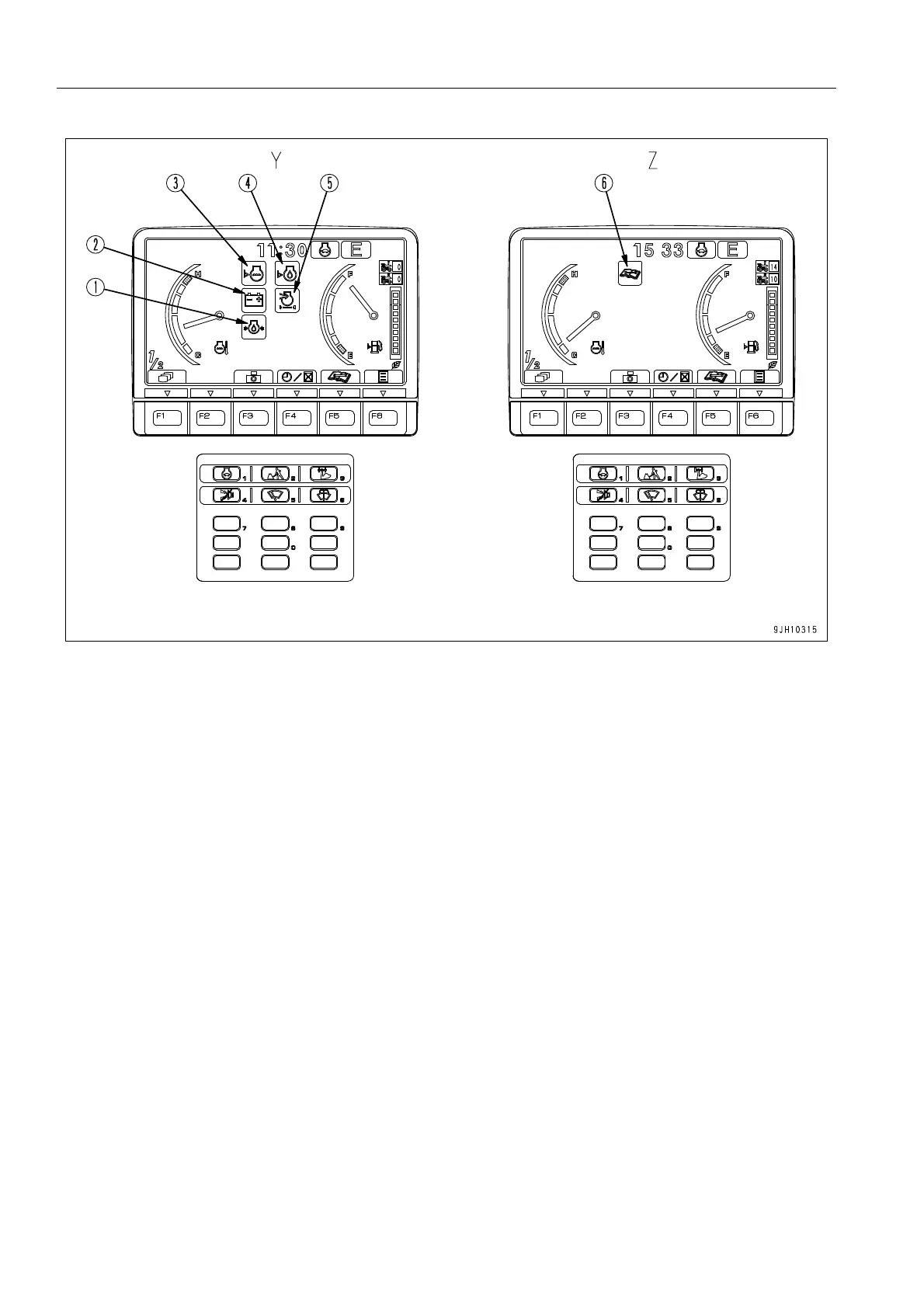

Y: Check before starting screen Z: Maintenance interval monitor screen

(1) Engine oil pressure monitor (4) Engine oil temperature monitor

(2) Charge level monitor (5) Air cleaner clogging monitor

(3) Radiator coolant level monitor (6) Maintenance interval monitor
