OPERATION MACHINE VIEW ILLUSTRATIONS
3-5

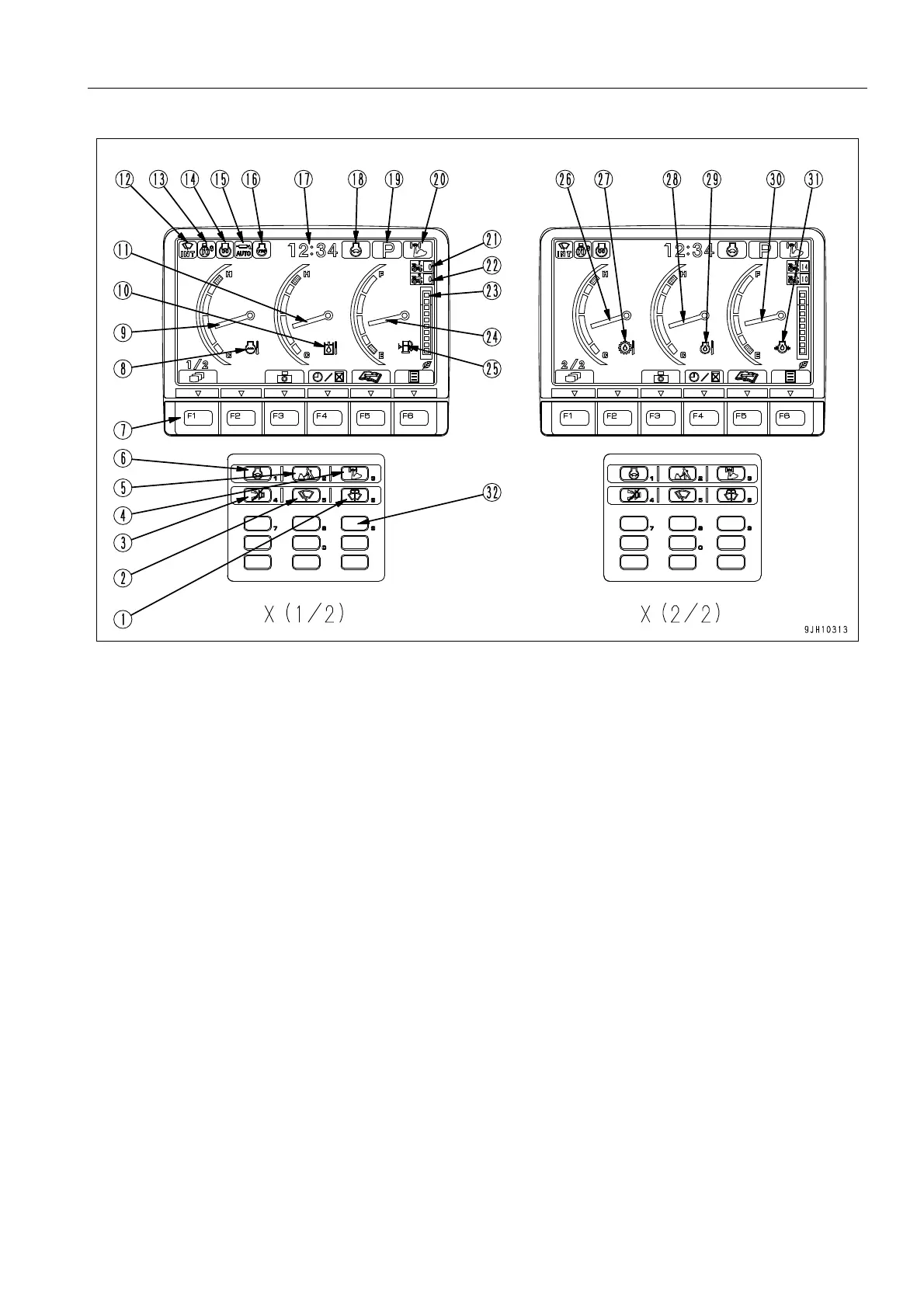

X (1/2): Normal operation screen (1/2) X (2/2): Normal operation screen (2/2)
q Press function switch F1 to switch between screen X (1/2) and screen X (2/2)
(1) Window washer switch (17) Clock/service meter
(2) Wiper selector switch (18) Auto-deceleration monitor
(3) Alarm buzzer cancel switch (19) Working mode monitor
(4) Heavy lift switch (20) Heavy lift monitor
(5) Working mode selector switch (21) Truck counter 1
(6) Auto-deceleration selector switch (22) Truck counter 2
(7) Function switches (F1 - F6) (23) ECO gauge
(8) Engine water temperature monitor (24) Fuel gauge
(9) Engine water temperature gauge (25) Fuel level monitor
(10) Hydraulic oil temperature monitor (26) PTO oil temperature gauge
(11) Hydraulic oil temperature gauge (27) PTO oil temperature monitor
(12) Wiper monitor (28) Engine oil temperature gauge
(13) Swing lock switch (29) Engine oil temperature monitor
(14) Preheating monitor (30) Engine oil pressure gauge
(15) Auto greasing operation monitor (31) Engine oil pressure monitor
(16) Engine stop monitor (32) 10-key pad (0-9)
