MACHINE VIEW ILLUSTRATIONS OPERATION
3-4
STOP

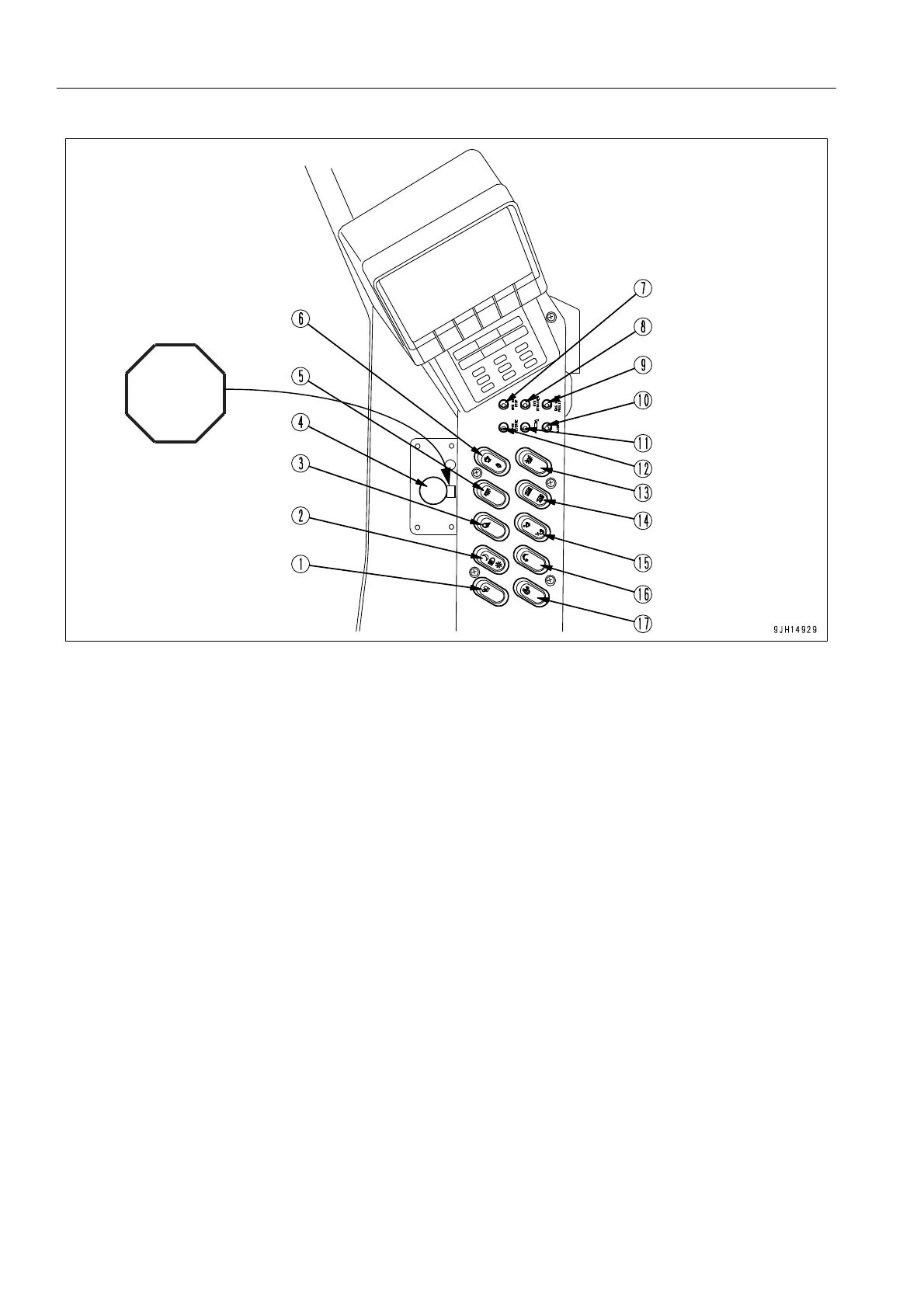

(1) Step light switch (10) Ladder warning lamp
(2) Working lamp switch (11) Auto greasing warning lamp
(3) Additional lamp switch (12) Fan reverse display lamp
(4) Engine emergency stop switch (13) Rotating lamp switch (if equipped)
(5) Room lamp switch (14) Greasing mode switch
(6) Service center switch (if equipped) (15) Machine push-up switch
(7) Engine emergency stop warning lamp (16) Boom shockless limit switch
(8) Hydraulic oil strainer warning lamp (17) Swing lock switch
(9) Engine emergency stop cancel lamp
