OPERATION DETAILED CONTROLS AND GAUGES

3-21

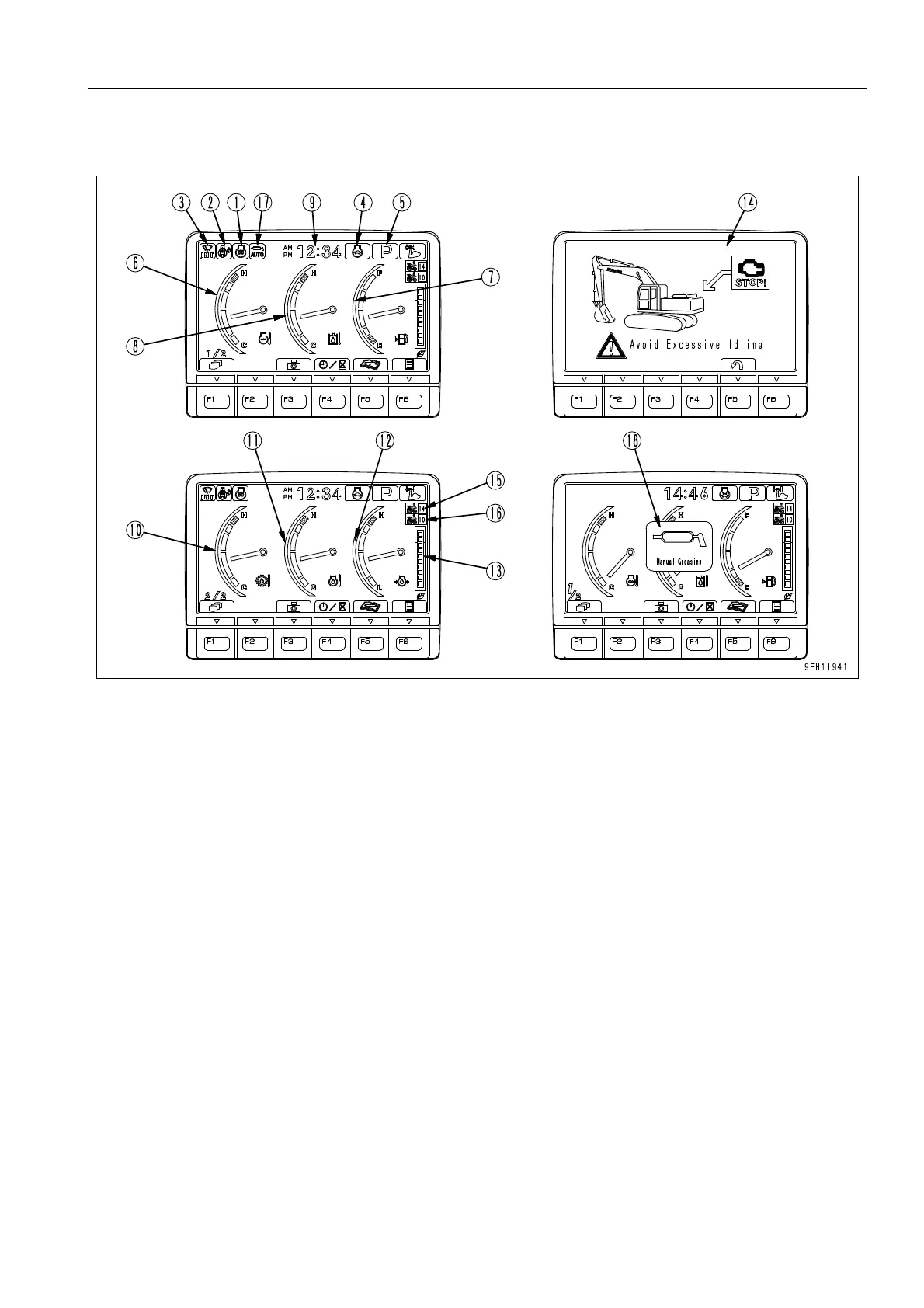

Meter Display Portion 3

(1) Engine pre-heating monitor (10) PTO temperature gauge

(2) Swing lock monitor (11) Engine oil temperature gauge

(3) Wiper monitor (12) Engine oil pressure gauge

(4) Auto-deceleration monitor,auto-lowidle monitor (13) ECO gauge

(5) Working mode monitor (14) Idle stop guidance

(6) Engine coolant temperature gauge (15) Truck counter display portion 1

(7) Fuel gauge (16) Truck counter display portion 2

(8) Hydraulic oil temperature gauge (17) Auto-greasing actuation monitor

(9) Service meter,clock (18) Manual greasing actuation monitor
