DETAILED CONTROLS AND GAUGES OPERATION
3-22
Pilot Display 3
q The pilot display at the top of the screen consists of the pilot lamps to confirm the actuation of each function.
q When the starting switch is turned ON, the pilot lamp lights up when the display items are functioning.

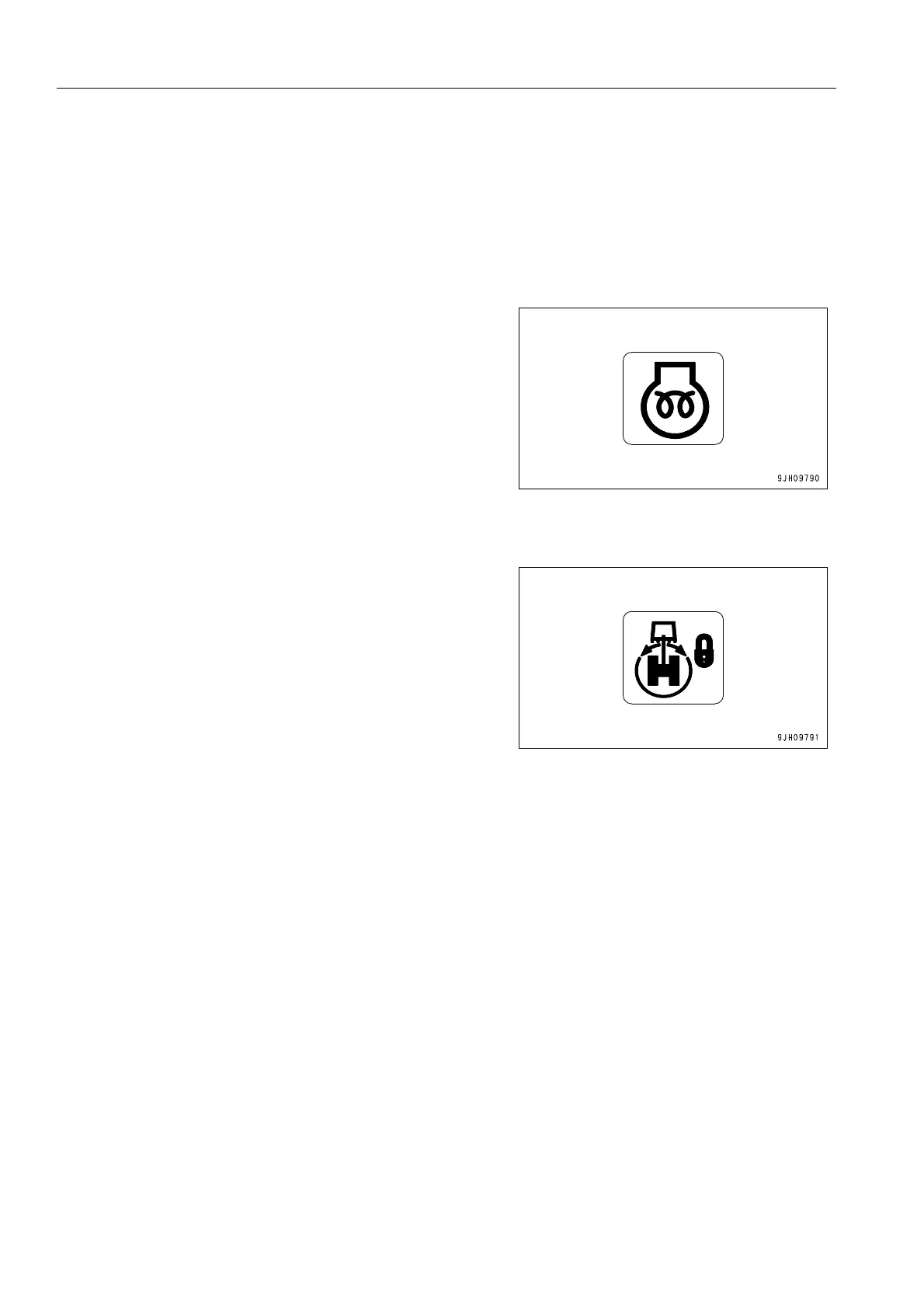

Engine Pre-heating Monitor
This monitor (1) displays the preheating time needed when
starting the engine in temperatures below 0°C.
When the temperature is low (in cold areas) and the preheating
function is automatically actuated, the preheating monitor lights
up. When the preheating is completed, it goes out.
Automatic preheating is for a maximum of approx. 30 seconds.
Swing Lock Monitor
This monitor (2) informs the operator that the swing lock has
been actuated.
When actuated: Lights up
The monitor lights up when the swing lock switch is turned to
the ON (LOCK) position.
The monitor flashes when the swing holding brake release
switch is turned ON.
q For details of the positions of the swing parking brake
release switch, see “CONTROLS AND GAUGES (3-3)“.
The swing motor is equipped with a disc brake that mechani-
cally stops the rotation. When the swing lock monitor is lighted
up, the brake remains applied.
To Next Page
