DETAILED CONTROLS AND GAUGES OPERATION
3-76
Starting Switch

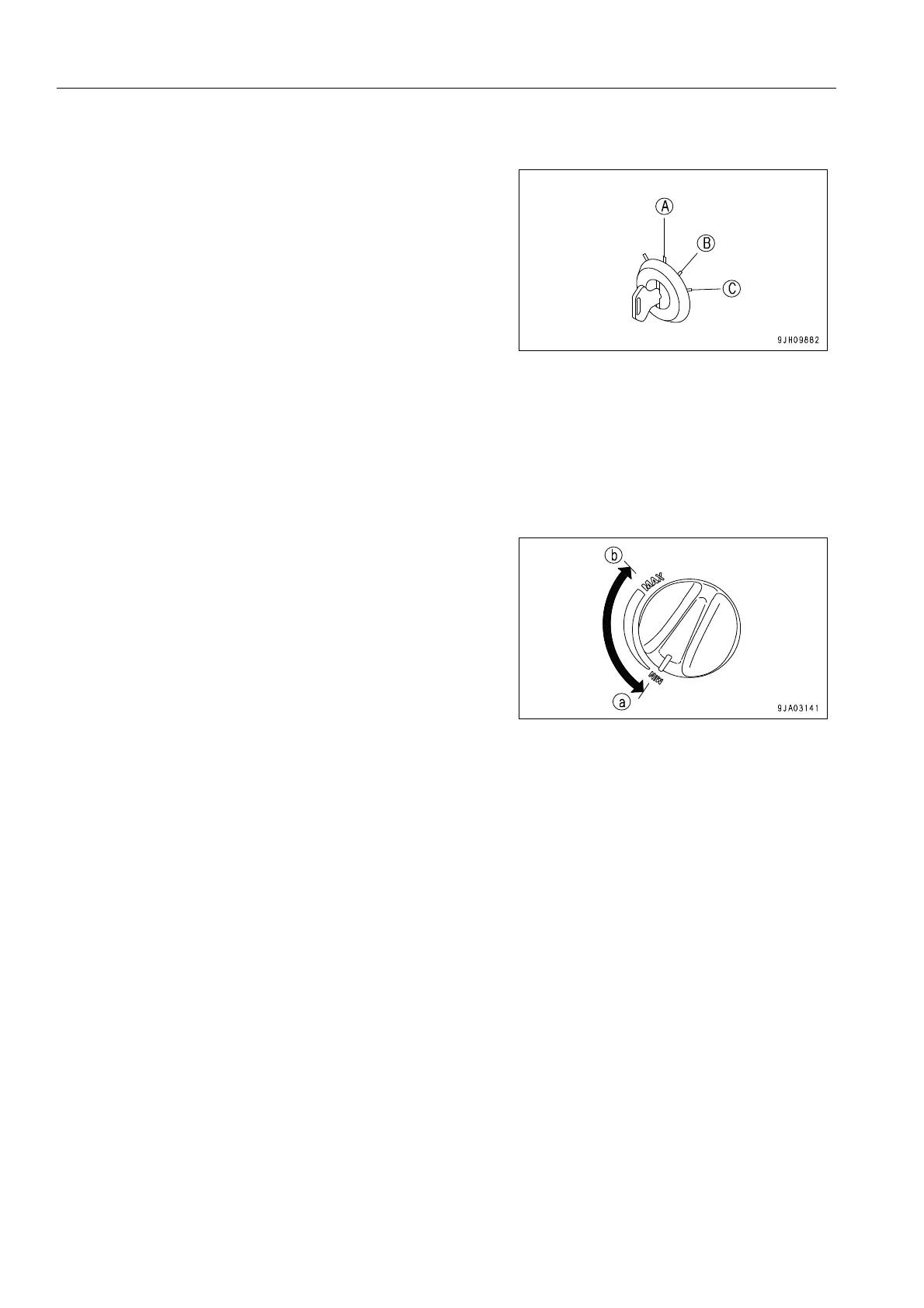

Starting switch (1) is used to start or stop the engine.
(A): OFF position
The key can be inserted or withdrawn. Switches for the electri-
cal system (except room lamp), are all turned off and the
engine is stopped.
(B): ON position
Electric current flows through the charging and lamp circuits.
Keep starting switch key in the ON position while the engine is
running.
(C): START position
This is the engine-start position. Keep the key at this position
during cranking. Immediately after starting the engine, release
the key. It will automatically return to the ON position (B).
Fuel Control Dial
This dial (2) adjusts the engine speed and output.
(a) Low idle (MIN): Turned fully to the left
(b) Full speed (MAX): Turned fully to the right
