DETAILED CONTROLS AND GAUGES OPERATION
3-98

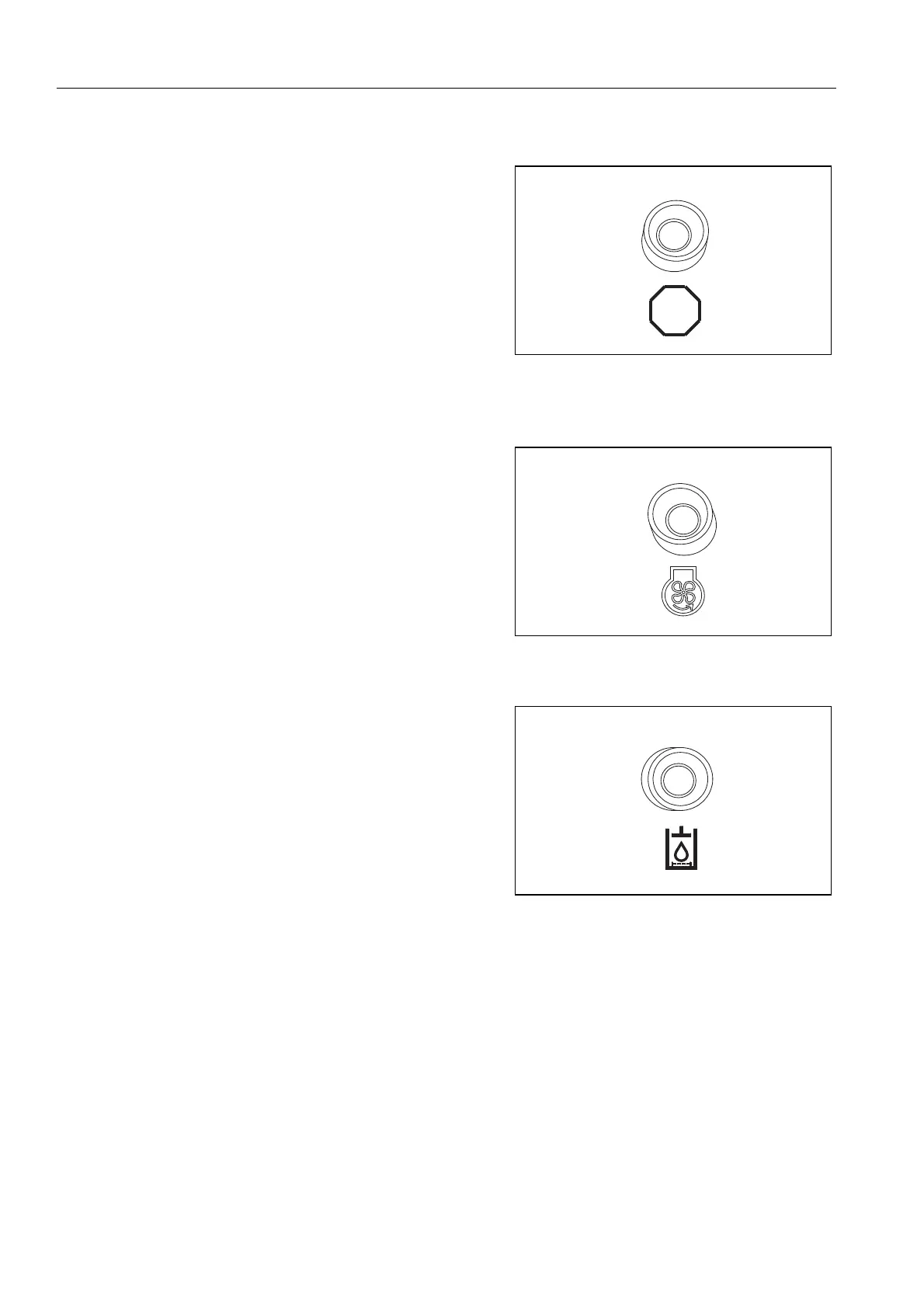

Engine Emergency Stop Lamp
This lamp (2) lights up red when any of the engine emergency
stop switches is at the ON (emergency stop) position. When it
is lighted up red, the engine will not start even when the start-
ing switch is operated.
q For details of the locations of the engine emergency stop
switches and the method of operation, see “Stopping in
Emergencies (3-203)“.
q Turn the engine emergency stop switch to the OFF (normal
operation) position before starting the engine again. If lamp
(2) is off when the starting switch is turned to the ON posi-
tion, the engine can be started.
Fan Reverse Rotation Display Lamp
This lamp (5) flashes orange when the fan rotation is set to the
reverse mode.
Hydraulic Oil Strainer Warning Lamp
This lamp (3) lights up red when the hydraulic strainer inside
the hydraulic tank is not installed correctly. When it is lighted
up red, the engine will not start even if the starting switch is
operated.
Remove the suction strainer cover of the hydraulic tank and
check that the strainer is correctly installed.
