OPERATION DETAILED CONTROLS AND GAUGES
3-117

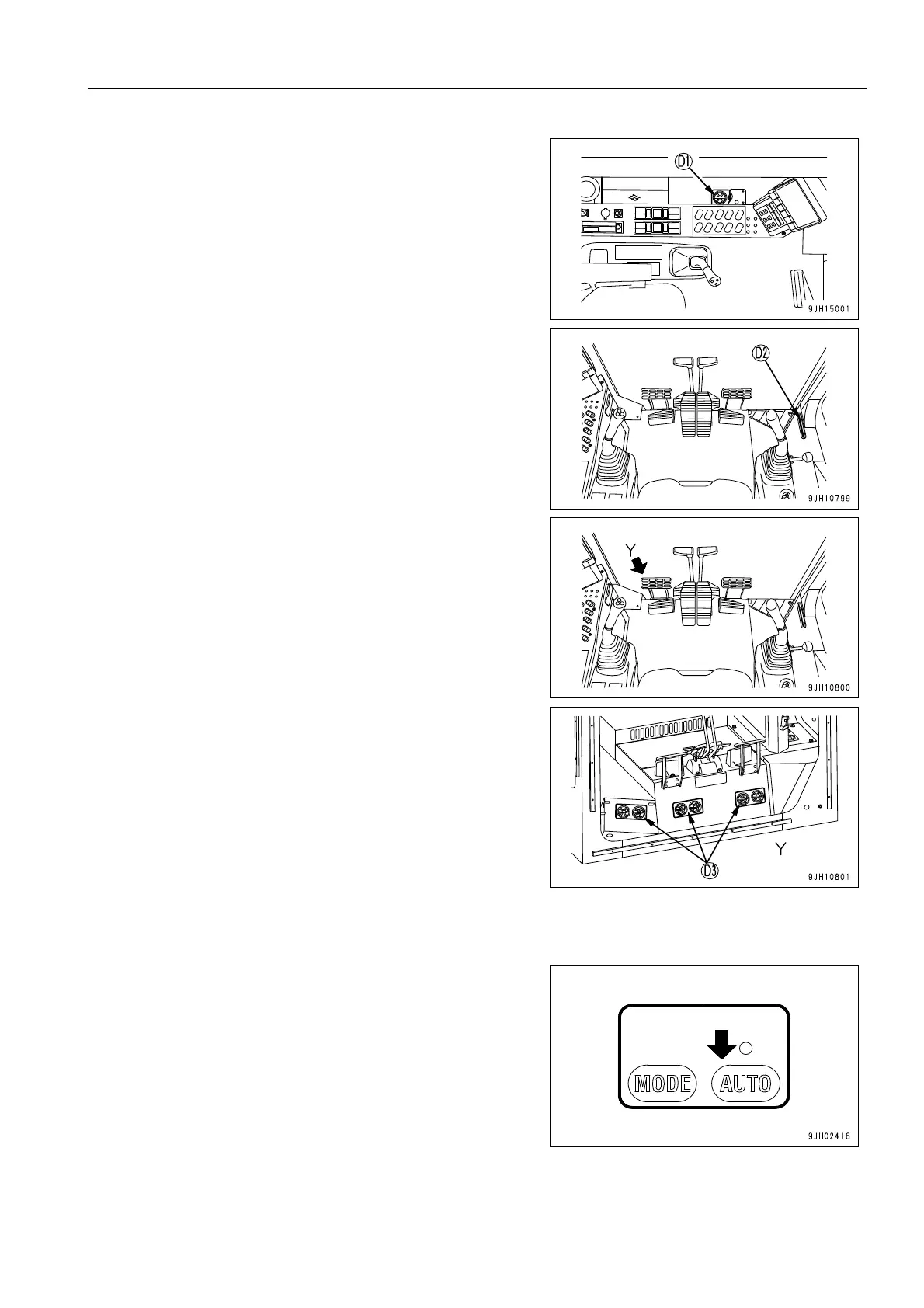

q Defroster vent (D)
(D1): Defroster vent (left) 1 place
(D2): Defroster vent (right) 1 place
(D3): Defroster vents (front) 3 places
Auto Switch
This switch (8) automatically changes air volume, vents and air
source according to the set temperature.
q When auto switch (8) is pressed, the lamp above the auto
switch lights up.
q Press switch (5), then use temperature control switch (3) to
set the temperature, and run the air conditioner under auto-
matic control.
q When the control is switched from automatic operation to
manual operation, it is possible to operate the to change air
flow, vents, and air source (RECIRC/FRESH). When man-
ual control is used, lamp above the auto switch goes out.
To Next Page
