MACHINE OPERATIONS AND CONTROLS OPERATION
3-162

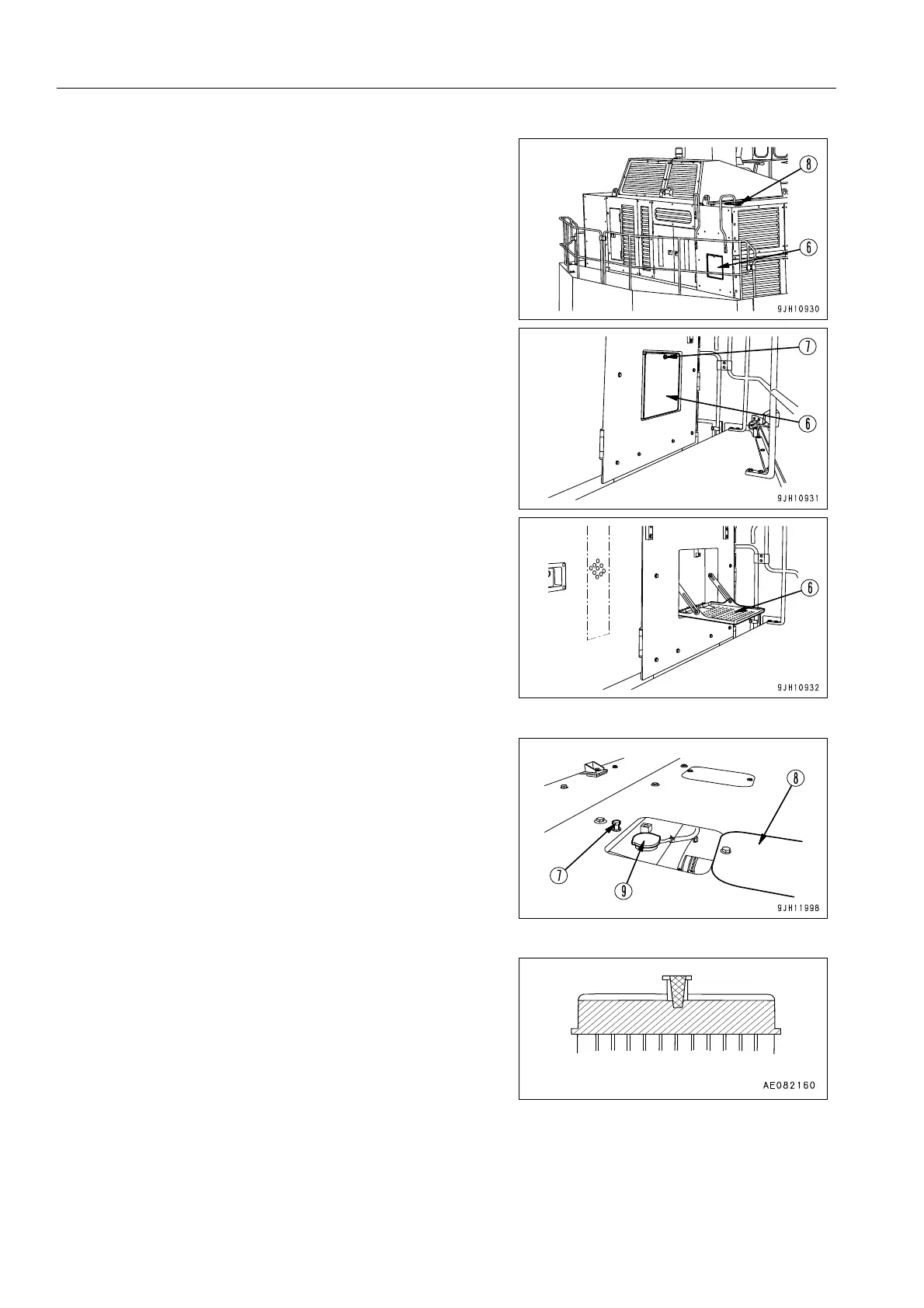

1) Open cover (6) at the rear of the container on the right
side of the machine, and use it as a place to stand.
Remove bolt (7) to open cover (6).
2) After removing cover (8), loosen radiator cap (9) slowly to
release the pressure, then push cap (9) in and loosen it
further to remove it.
3) Check that the coolant is in the hatched portion in the dia-
gram on the right. If the water level is low, add water
through the water filler port.
4) After adding coolant, install cap (9), close cover (8), then
secure it with bolt (7).
To Next Page
