MAINTENANCE PROCEDURE MAINTENANCE
4-38

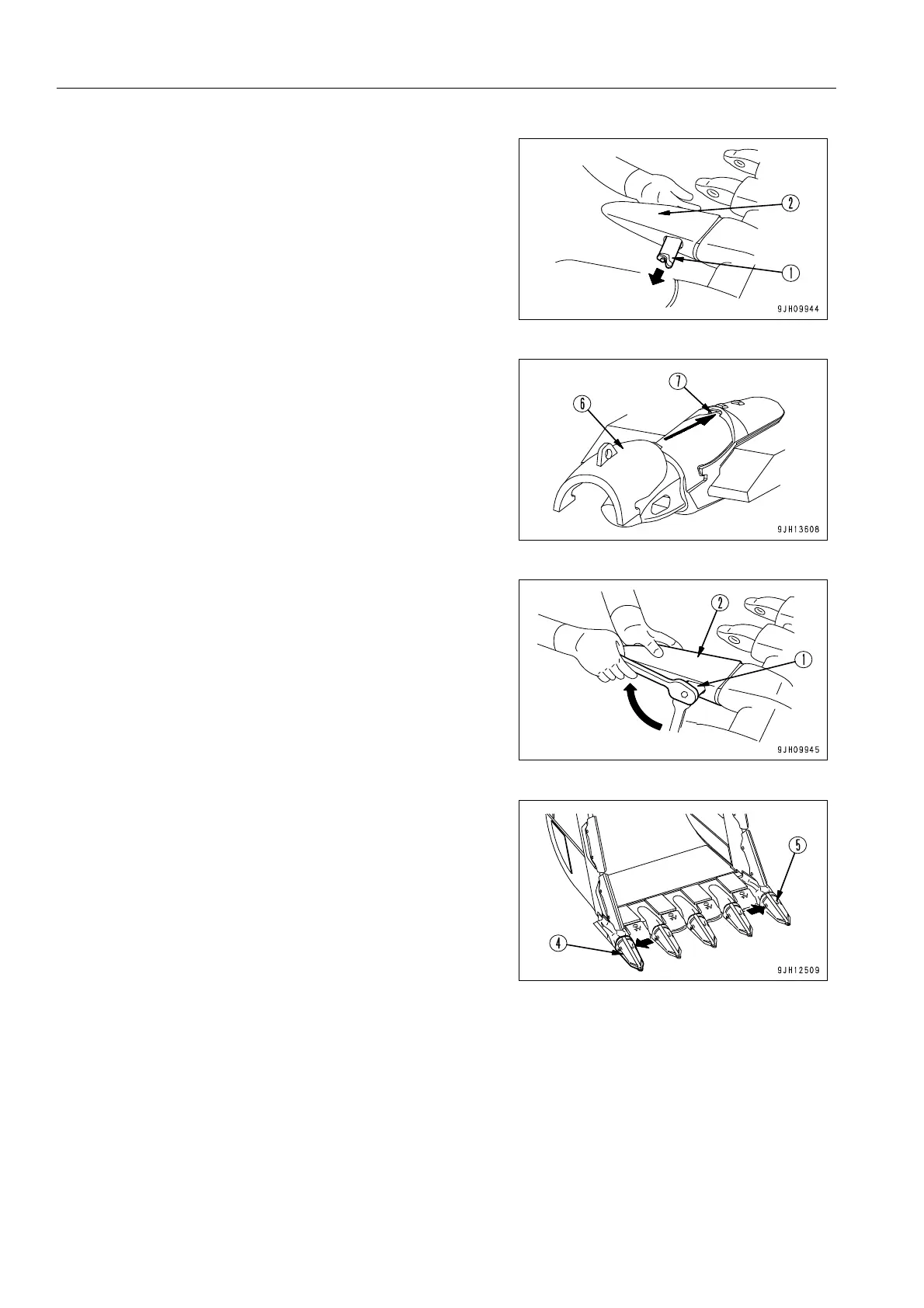

5. Push pin (1) out by hand or with a hammer in the direction
of the arrow to remove the teeth (2).
6. Take off wear cap (6) after removing tooth (2), and then
clean the cap mounting face and mounting hole (7).
7. Install new wear cap (6) by fitting it in adapter mounting
hole (7).
8. Clean the tooth mounting face, fit tooth (2) in the adapter,
insert pin (1) and then lock the pin by turning a socket
wrench clockwise to 90° to install the tooth.
In order to prevent a tooth from a slip-off, insert a pin from
the inside (in the direction indicated with an arrow) for
tooth (4) and (5) on both edges of the bucket.
