HANDLING FUEL QUICK CHARGE ATTACHMENTS AND OPTIONS
6-8

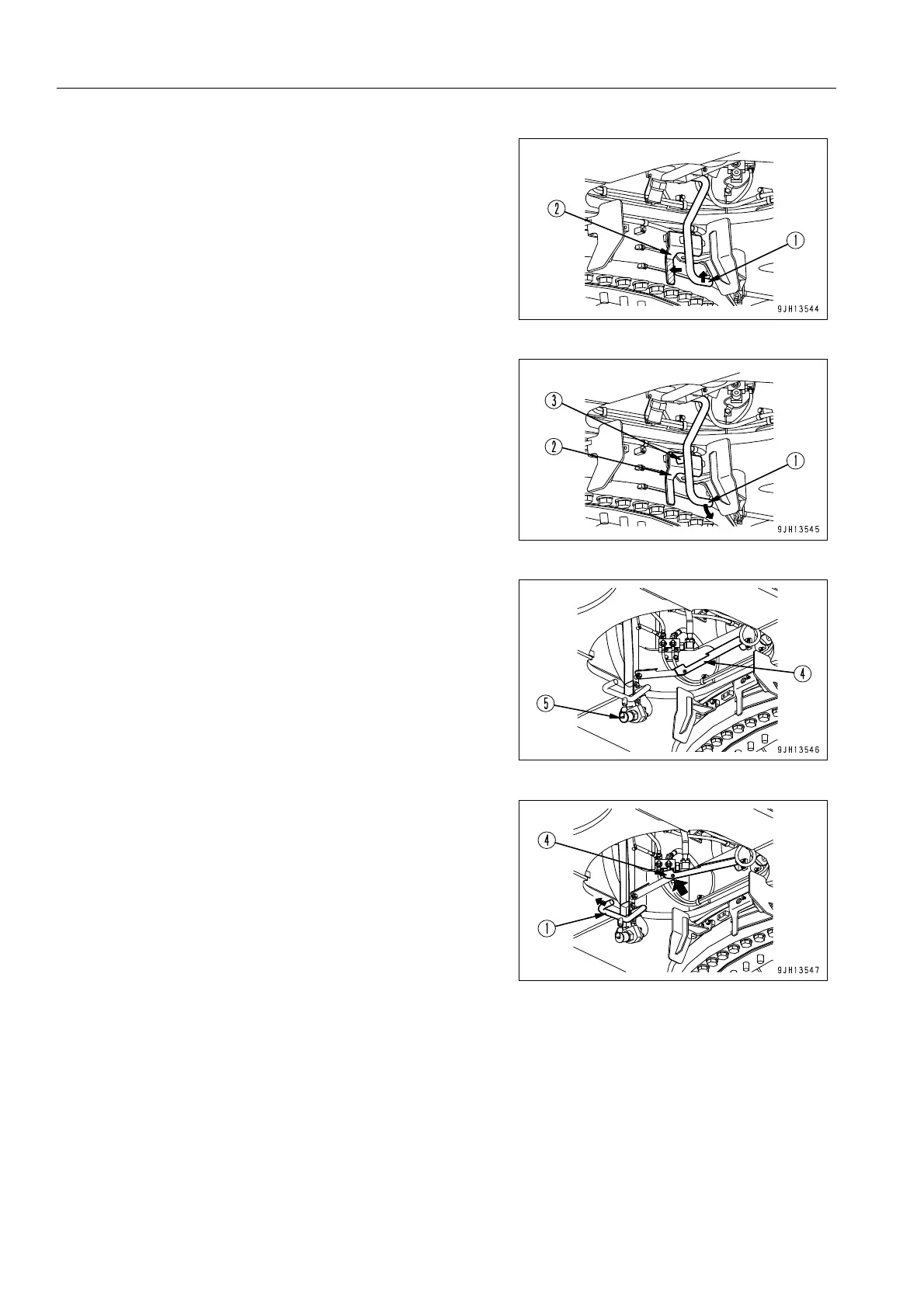

1. Raise lever operating handle (1) slightly with your right
hand and push the hatched portion of lock plate (2) in the
diagram on the right with the palm of your left hand or the
tip of your finger.
2. When lock bar (3) comes out of the oblong hole in the lock
plate (2), release lock plate (2) and move your left hand to
hold lever operating handle (1), then use both hands to
lower lever operating handle (1).
3. Check that the stopper (4) is at the LOCK position (com-
pletely open as shown in the diagram on the right).
4. Remove cap (5) and start to fill with fuel.
Fuel tank capacity: 3,400 liter
5. After completing the fuel filling operation, install cap (5).
6. Pull lever operating handle (1) slightly (towards the rear of
the machine) and push up the bent part of stopper (4) to
the lock release position (the slightly upward bent position
shown in the diagram on the right).
