ATTACHMENTS AND OPTIONS HANDLING JUMP START RECEPTACLE
6-37

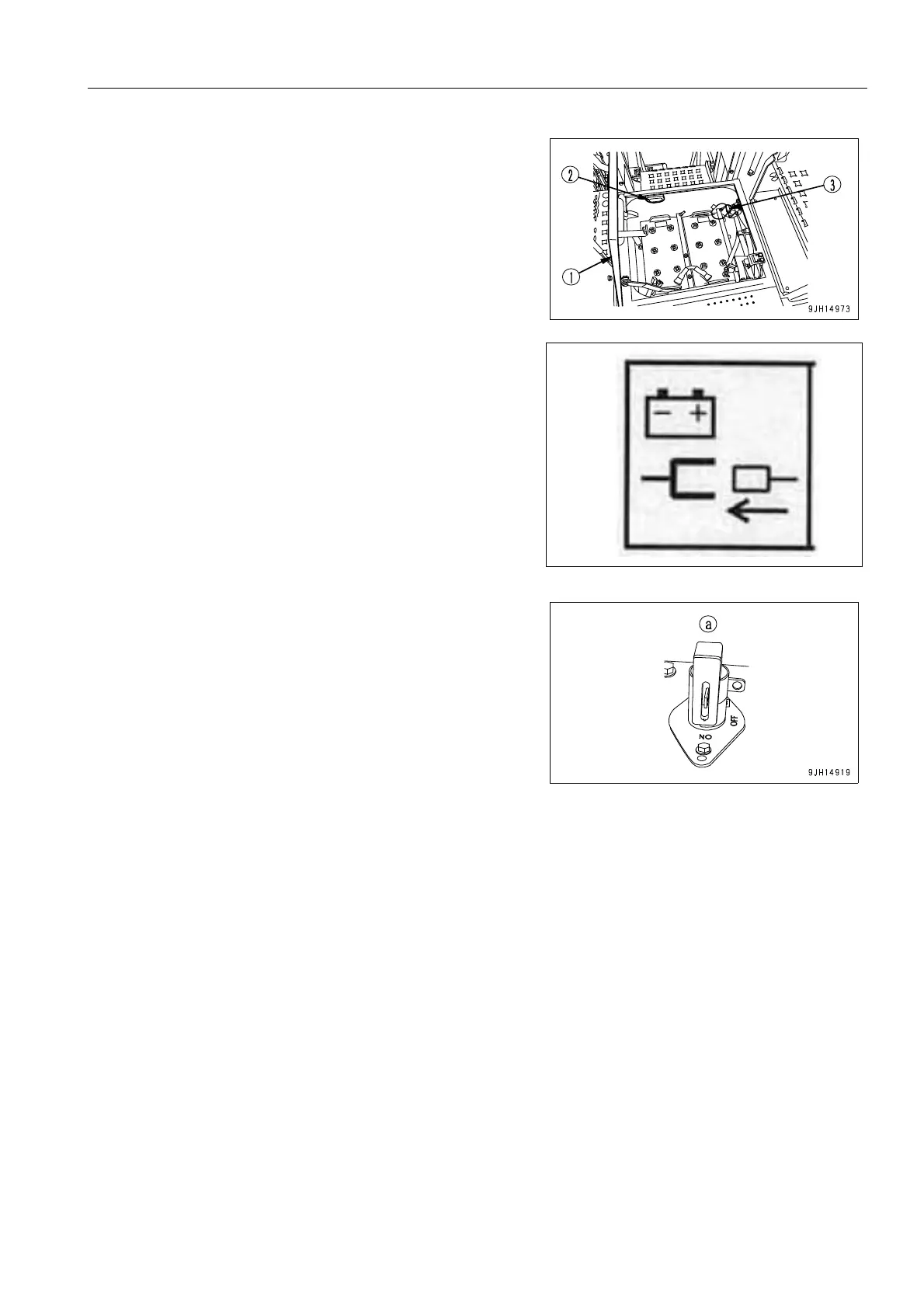

3. Open cover (1) of the battery box at the left side of the
machine (rear of cab base).
4. Insert the external power source cable through external
power source insertion port (2).
5. Remove the cap of jump-start receptacle (3), then connect
the external power source cable to jump-start receptacle
(3).
6. Close cover (1) of the battery box.
7. Set the battery isolator switch to ON position (a).
8. Start the engine. For details of the procedure for starting the engine, see “STARTING ENGINE (3-189)“.
To Next Page
