EXPLANATION OF COMPONENTS LOADING SHOVEL
7-4
Horn Switch

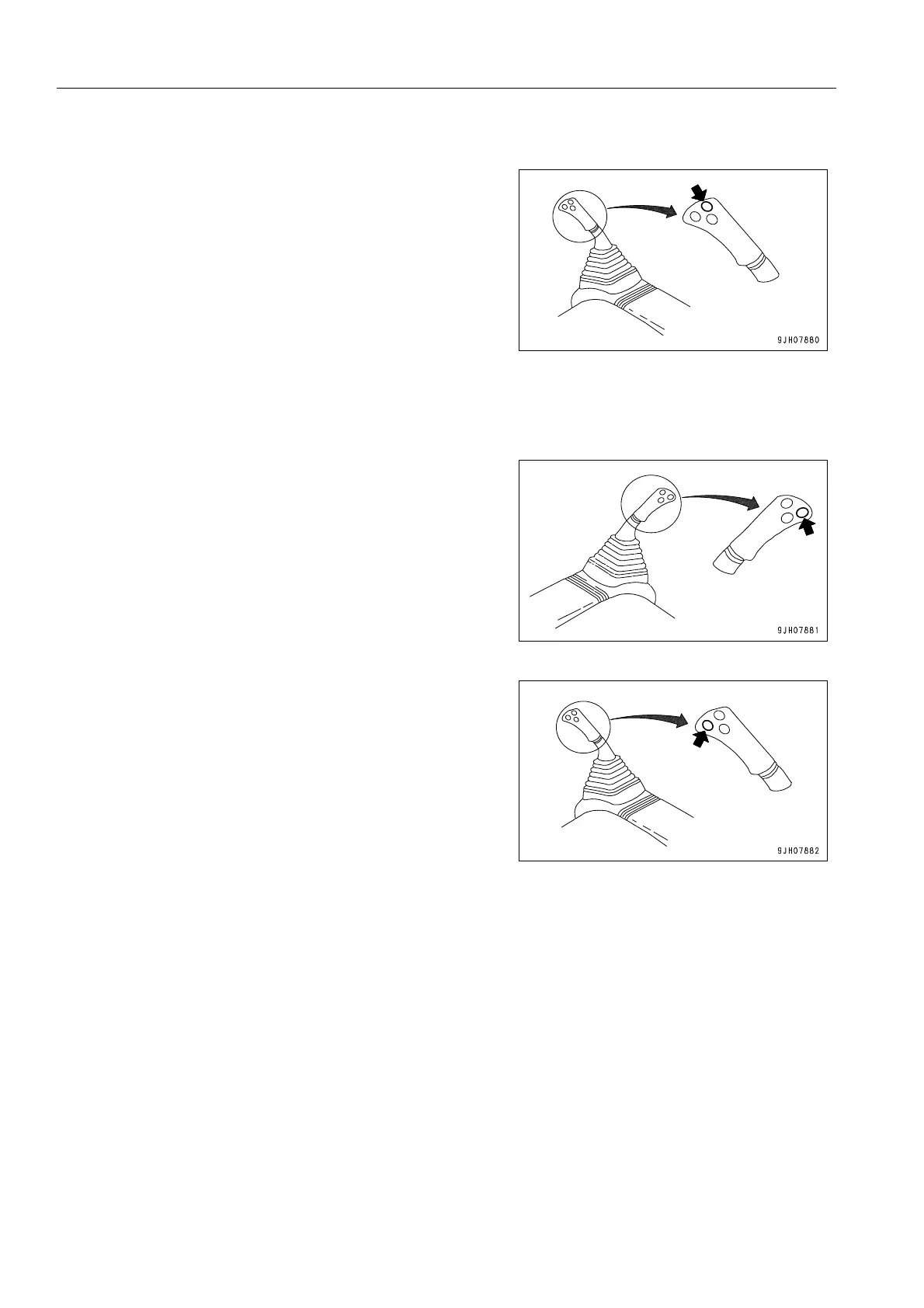

Press switch (17) on the right work equipment control lever to
sound the horn. The same time, the flashing lights at the top
front of the cab flashes for approx. 5 seconds to give a signal to
the dump truck and others in the surrounding area.
Bottom Dump Switch
Press switches (18) and (19) on the work equipment control lever to open and close the front bucket.
If the button (18) at the tip of the left work equipment control
lever is depressed, the bucket will close.
If the button (19) at the tip of the right work equipment control
lever is depressed, the front bucket will open.
