OPERATIONS LOADING SHOVEL

7-6

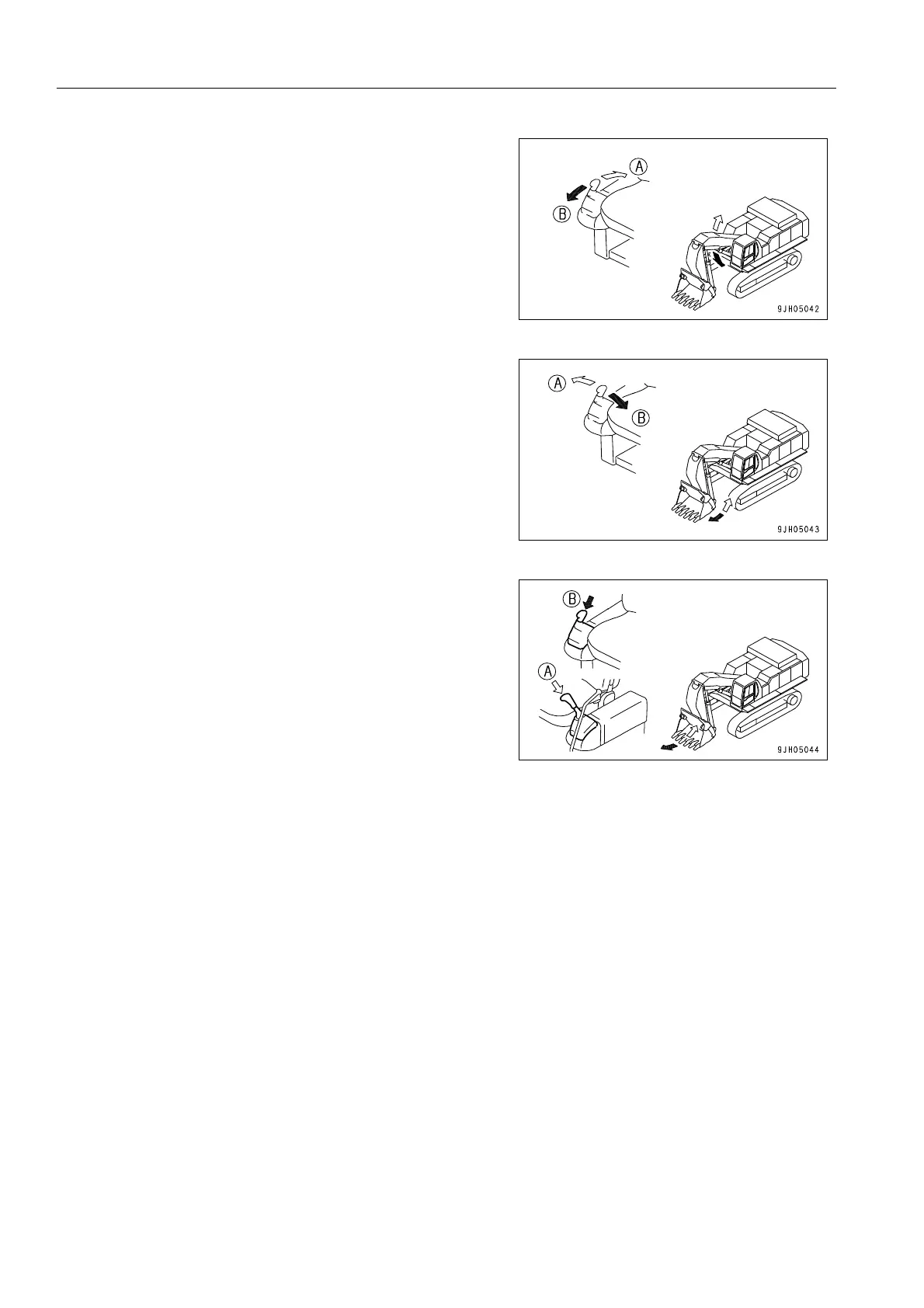

Boom operation

(A): Boom RIASE

(B): Boom LOWER

Bucket operation

(A): Bucket DUMP

(B): Bucket CURL

Bottom dump operation

(A): OPEN

(B): CLOSE
