Operation
3.41 Other controls
Folding back the control lever base
The door on the right can be used as entry and exit.
☞ In order to avoid danger, the following conditions must be fulfilled before
entering or leaving the cab:
• Stop the machine
• Lower the loader unit to the ground
• Apply the parking brake
• Stop the engine and remove the ignition key
• Move control lever 15 (joystick) back and forth several times to release
the pressure
• Secure control lever 15 (joystick) –seeLocking the control lever (joy-
stick) and the 3rd control circuit (attachments) on page 3-29
☞ Fully raise the control lever base to position A with handle D
➥ The gas strut keeps the control lever base in the top position
☞ Fold the control lever base down to position B after entering or leaving the cab
➥ The gas strut keeps the control lever base in the lower position
In order to avoid damage to the control lever base, do not use handle D on the
control lever base as a support to ease your entrance or exit from the cab!
☞ Use the entrance handles in the cab
The height of the control lever base can be set with stop bolt C.

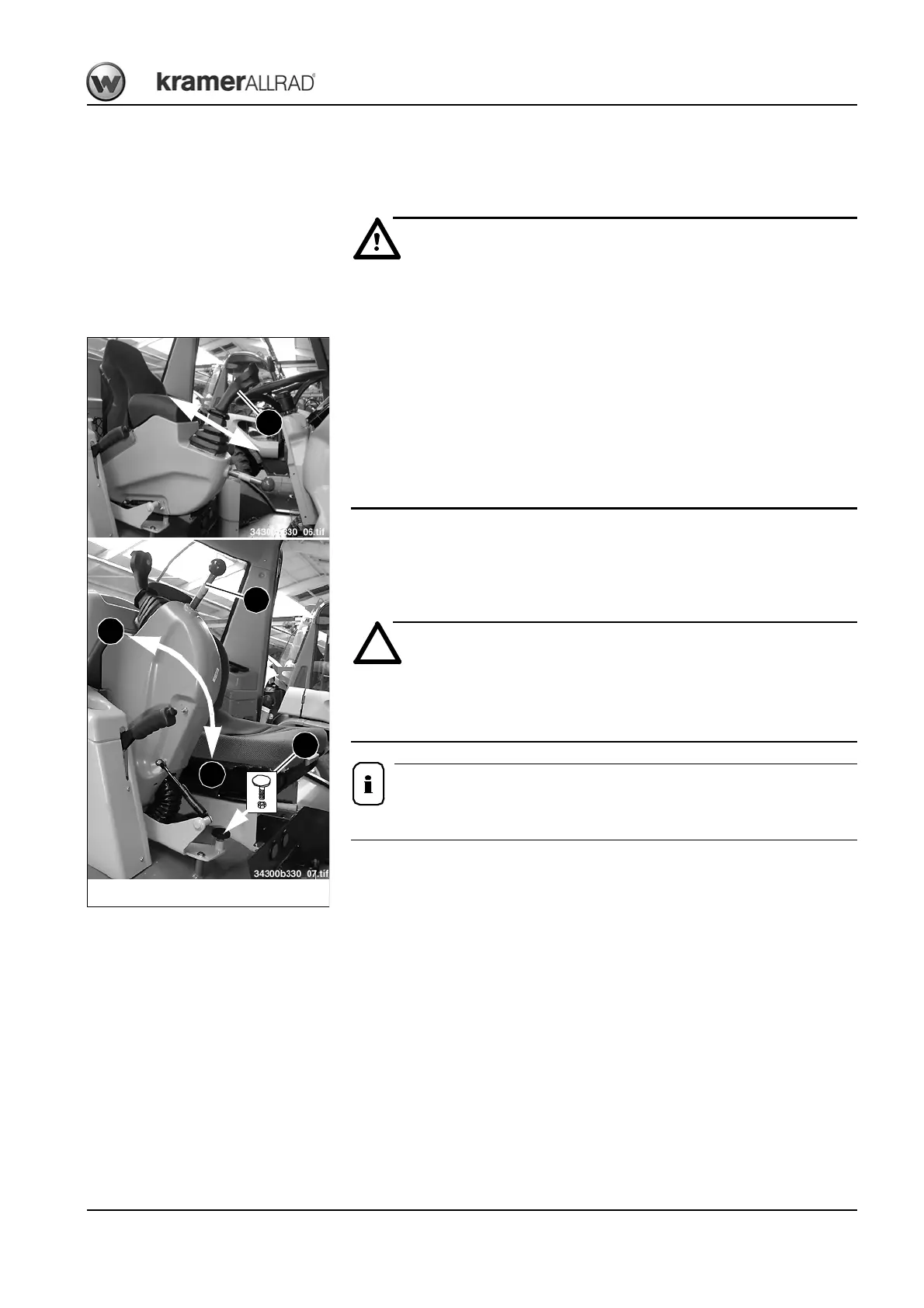

Fig. 92: Cont rol lever base
15
A
B
D
C
