BA 35101/02/ 03 EN – Edition 1.0 * 35101_02_03b330.fm 3-45
Operation
3.32 Signalling system
Turn indicator operation
➥ Telltale 75 flashes during trailer operation.
The turn indicator system is not in order if telltale 76 flashes about twice as fast
as normally!
• Check the front and rear turn indicators, have the turn indicator system
repaired if necessary
Hazard warning system operation
3.33 Rotating beacon (option)
Rotating beacon operation
☞ Fold up and lock the rotating beacon
Legal regulations of your country may require you not to switch on the rotating
beacon on public roads unless the road is within the machine's working
range and the machine represents an obstruction to the normal flow of traffic
when the machine is in work operation. Furthermore, legal regulations may
require your machine to have some type of warning identification (e.g. red and
white warning stripes)!
I
0

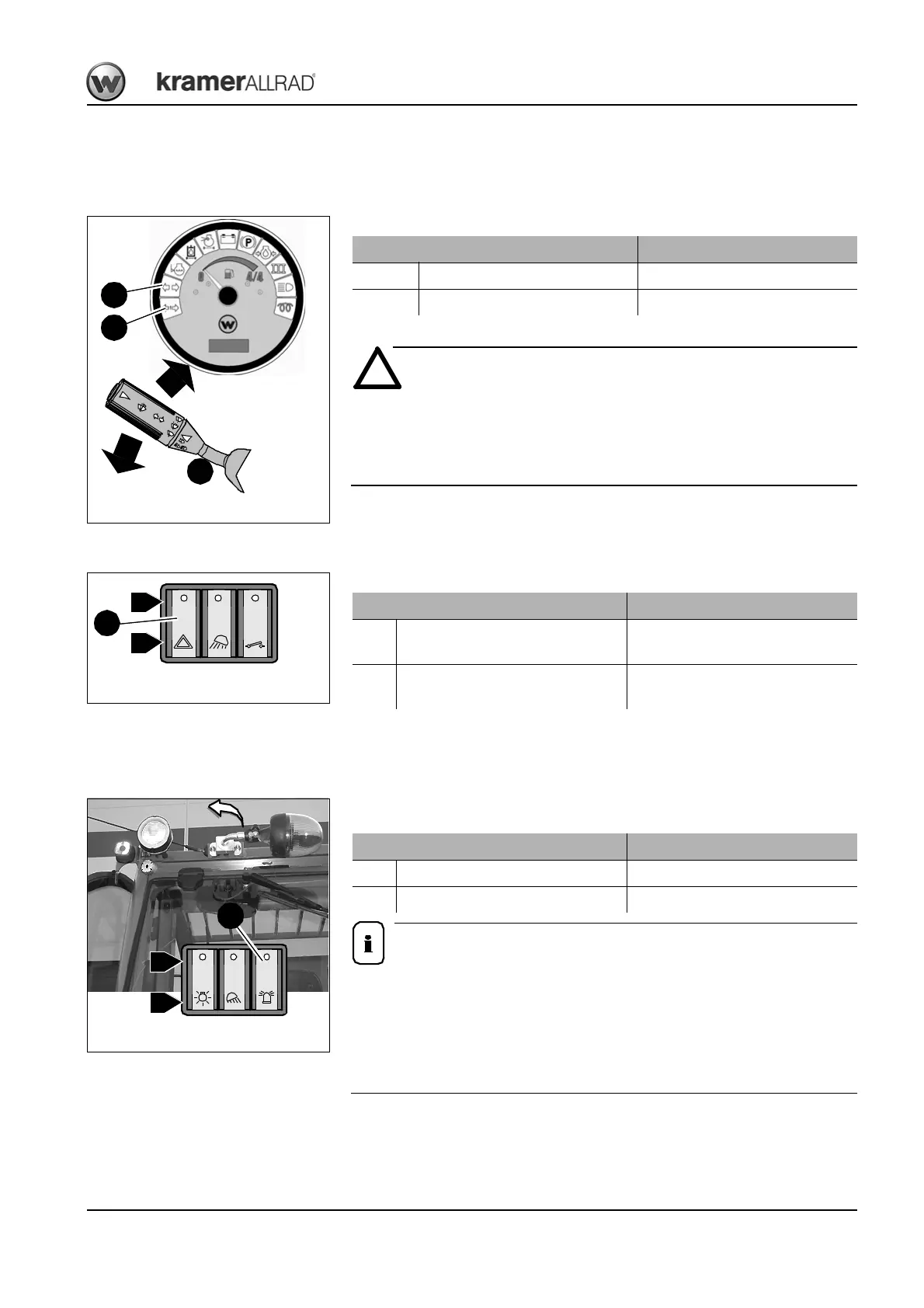

Fig. 70: Turn indicators
L
39
76
75
R
Function Telltale
RIGHT Push lever 39 forwards R Telltale 76 flashes
LEFT Pull lever 39 to the rear L Telltale 76 flashes
Fig. 71: Switch for hazard warning system
B
A
69
Function Telltale
ON
Press hazard warning switch 69 to
position B
The telltale in the switch and telltale 76
both flash
OFF
Press hazard warning switch 69 to
position A
The telltale in the switch and telltale 76
both go out
Fig. 72: Switch for rotating beacon
B
A
72
Function Telltale
ON Press switch 72 to position B Telltale in switch comes on
OFF Press switch 72 to position A Telltale in switch goes out
