5-20 BA 35101/02/03 EN – Edition 1.0 * 35101_02_03b510.fm
Maintenance
Lubricating the loader unit, lift, tilt and lock rams
☞ Lubricate the following lubrication points on the loader unit of the machine:
• Lubricate grease nipple C of the tilt ram bearing on the frame every 10 service
hours. Lubricate more frequently when in heavy-duty operation
• Lubricate grease nipple D of the loader unit bearing every 10 service hours.
Lubricate more frequently when in heavy-duty operation
• Lubricate grease nipple E on the lift ram bearing on the frame every 20 service
hours
• Lubricate grease nipple F of the tilt rod bearing every 10 service hours. Lubricate
more frequently when in heavy-duty operation
• Lubricate grease nipple G of the tilt ram bearing every 20 service hours
• Lubricate grease nipple H of the lift ram bearing every 20 service hours.
Lubricate more frequently when in heavy-duty operation
• Lubricate grease nipple I of the tilt lever bearing every 10 service hours.
Lubricate more frequently when in heavy-duty operation
• Lubricate grease nipples K of the quickhitch bearing every 10 service hours.
Lubricate more frequently when in heavy-duty operation
• Lubricate grease nipples L of the tilt lever bearing every 10 service hours.
Lubricate more frequently when in heavy-duty operation

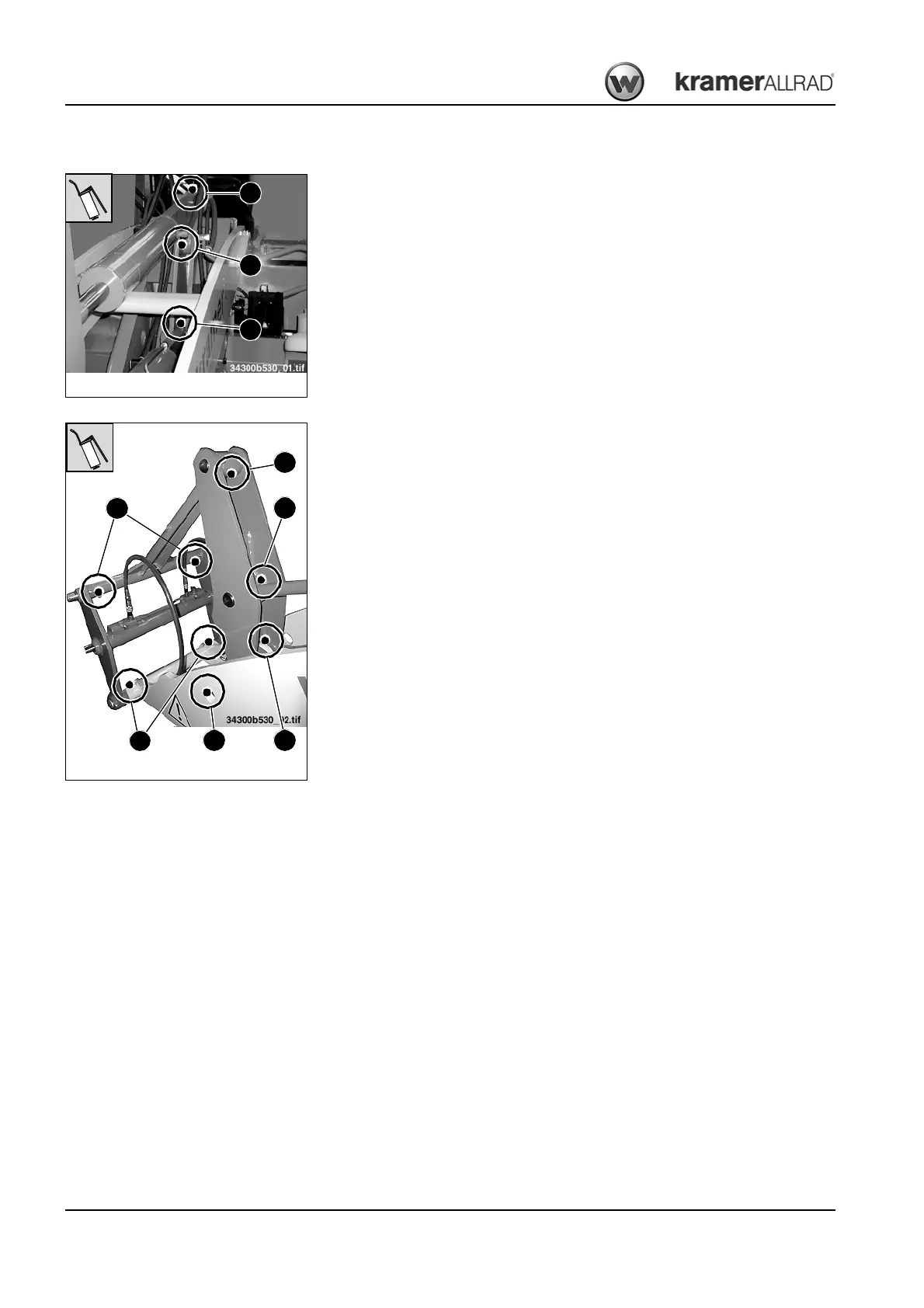

Fig. 175: Lubrication points on frame
C
D
E
Fig. 176: Lubrication points for lift and tilt ram bearings
F
G
HI
K
L
